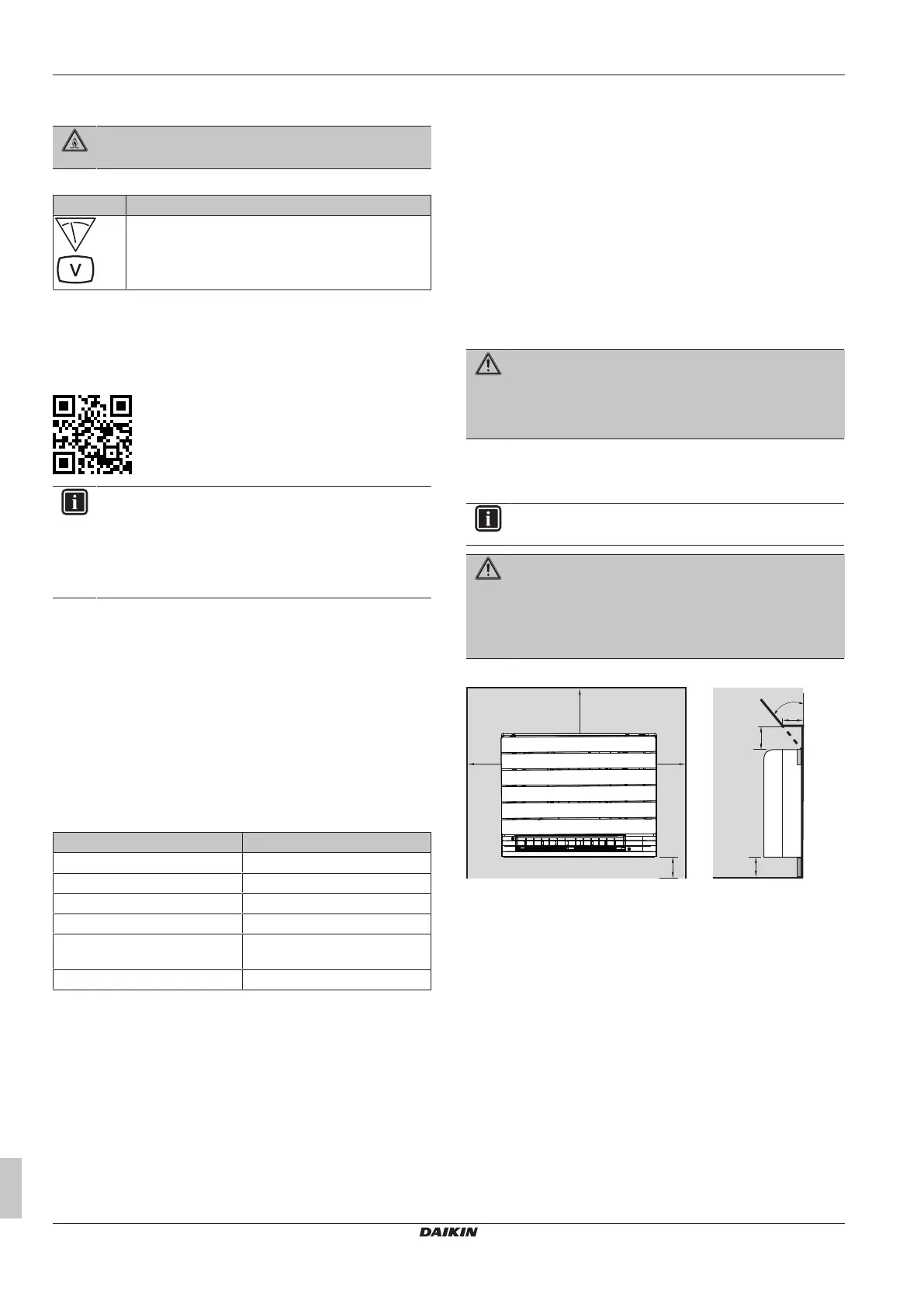

4 About the unit
Installation manual
4
CVXM20A + FVXM25~50A
Split system air conditioners
3P477070-2M – 2021.09
4 About the unit
WARNING: MILDLY FLAMMABLE MATERIAL
The refrigerant inside this unit is mildly flammable.
Following symbols may occur on the indoor unit:
Symbol Explanation
Measure the voltage at the terminals of main circuit
capacitors or electrical components before servicing.
4.1 About the wireless LAN
For detailed specifications, installation instructions, setting methods,
FAQ, declaration of conformity and the latest version of this manual,
visit app.daikineurope.com.
INFORMATION
▪ Daikin Industries Czech Republic s.r.o. declares that
the radio equipment type inside of this unit is in
compliance with Directive 2014/53/EU.
▪ This unit is considered as combined equipment
according to the definition of Directive 2014/53/EU.
4.1.1 Precautions when using the wireless LAN
Do NOT use near:
▪ Medical equipment. E.g. persons using cardiac pacemakers or
defibrillators. This product may cause electromagnetic
interference.
▪ Auto-control equipment. E.g. automatic doors or fire alarm
equipment. This product may cause faulty behaviour of the
equipment.
▪ Microwave oven. It may affect wireless LAN communications.
4.1.2 Basic parameters
What Value
Frequency range 2400MHz~2483.5MHz
Radio protocol IEEE 802.11b/g/n
Radio frequency channel 13ch
Output power 13dBm
Effective radiated power 15dBm (11b) / 14dBm (11g) /
14dBm (11n)
Power supply DC 14 V / 100 mA
4.1.3 Setting the wireless LAN
The customer is responsible for providing:
▪ Smartphone or tablet with minimum supported version of Android
or iOS, specified on app.daikineurope.com
▪ Internet line and communicating device, such as modem, router,
etc.
▪ Wireless LAN access point.
▪ Installed free Daikin Residential Controller application.
To install the Daikin Residential Controller
application
1 Open:
▪ Google Play for appliances using Android.
▪ App Store for appliances using iOS.
2 Search for Daikin Residential Controller.
3 Follow the directions on the screen to install.
5 Unit installation
5.1 Preparing the installation site
WARNING
The appliance shall be stored in a room without
continuously operating ignition sources (example: open
flames, an operating gas appliance or an operating electric
heater).
5.1.1 Installation site requirements of the
indoor unit
INFORMATION
The sound pressure level is less than 70dBA.
WARNING
CVXM-A and FVXM-A Floor Standing range is allowed to
be combined ONLY with systems with total refrigerant
amount <1.842 kg. Therefore in case of combination with
outdoor units 3MXM40N8 or 3MXM52N8, the total liquid
refrigerant piping length of the installation MUST be ≤30m.
▪ Spacing. Mind the following requirements:
≤60
(65)
≤27°
(mm)
≥467
≥50 ≥50
A B
(105)
≤60
A Front view
B Side view
▪ Do not install the unit more than 60mm above the floor.
▪ Wall insulation. When conditions in the wall exceed 30°C and a
relative humidity of 80%, or when fresh air is inducted into the
wall, then additional insulation is required (minimum 10 mm
thickness, polyethylene foam).
▪ Wall or floor strength. Check whether the wall or the floor is
strong enough to support the weight of the unit. If there is a risk,
reinforce the wall or the floor before installing the unit.
5.2 Opening the indoor unit
5.2.1 To remove the front panel
1 Slide both sliders in the direction of the arrows until they click.
