5 Unit installation
Installation manual
5
CVXM20A + FVXM25~50A
Split system air conditioners
3P477070-2M – 2021.09

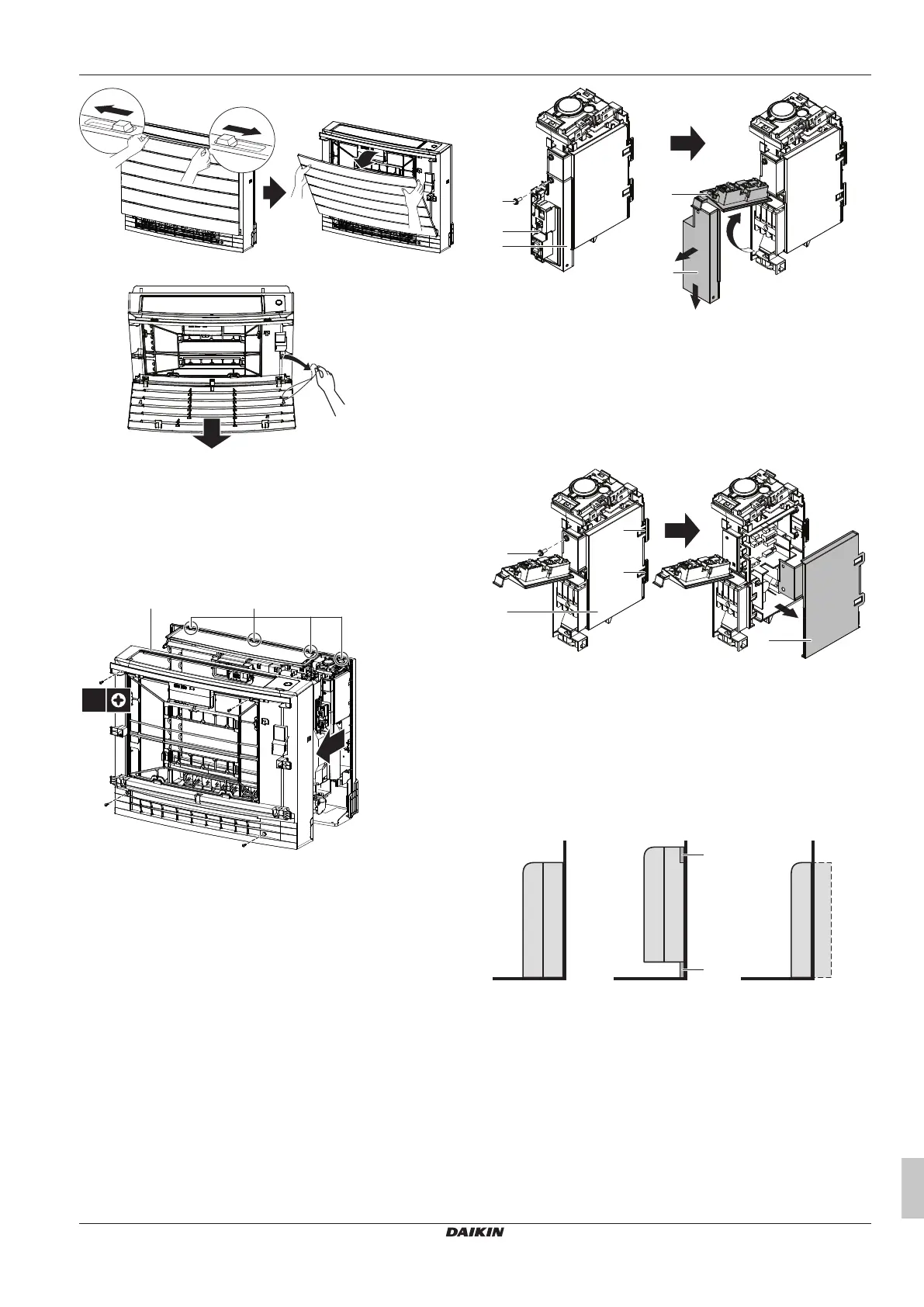

2 Open the front panel and remove the string.
3 Remove the front panel.
5.2.2 To remove the front grille
1 Remove the front panel. See "5.2.1 To remove the front
panel"[44].
2 Remove the 4 screws, remove the grille from 4 tabs on the top
and remove the front grille while pulling it toward you.
4×
b
a
a Front grille
b Tabs
5.2.3 To open the terminal block and remove
the electrical wiring box cover
To open the terminal block
1 Remove the front grille.
2 Remove 1 lower screw.
3 Lift the sensor securing plate.
4 Move the metal plate cover down and then towards you to
remove it.
c
b
c
b
a
1
2
3
a Screw
b Sensor securing plate
c Metal plate cover
To remove the electrical wiring box cover
1 Open the terminal block.
2 Remove 1 screw from the electrical wiring box.
3 Unhook the 2 tabs on the electrical wiring box cover and
remove it.
b
a
c
c
b
a Screw
b Wiring box cover
c Tabs
5.3 Mounting the indoor unit
5.3.1 To install the indoor unit
Installation options
There are 3 possible type of installation for the indoor unit.
a
b
A B C
A Floor (exposed) installation
B Wall (exposed) installation
C Half concealed installation
a Mounting plate
b Skirting board
