Daikin FXAQ07MVJU Engineering Data

Piping Diagrams EDUS39-600-F6
8 FXAQ-M

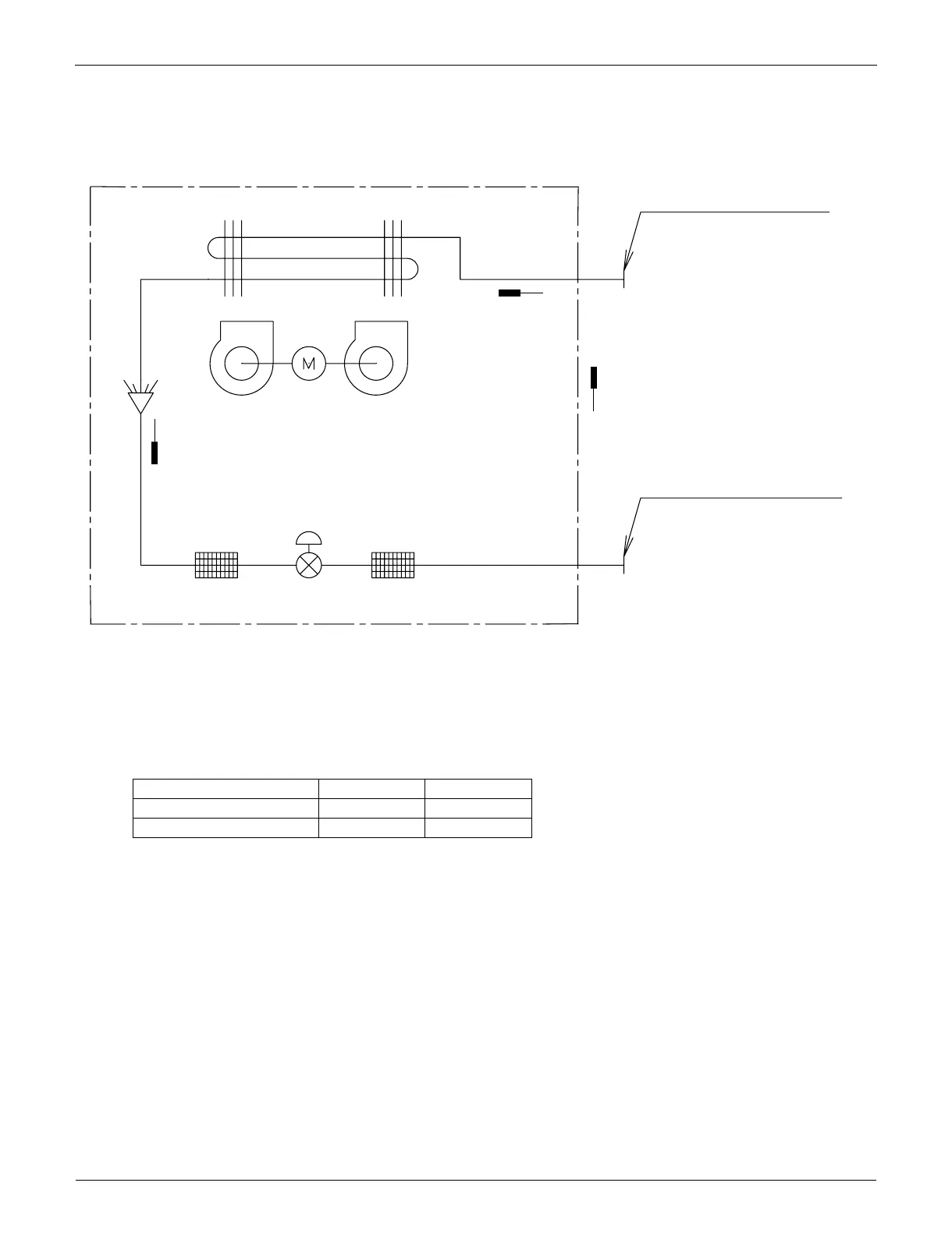

4. Piping Diagrams
R1T : Thermistor for suction air temperature
R2T : Thermistor for liquid line temperature
R3T : Thermistor for gas line temperature
Capacity Gas Liquid
07/09/12/18M φ1/2 (12.7 mm) φ1/4 (6.4 mm)
24M φ5/8 (15.8 mm) φ3/8 (9.5 mm)
J:DU220-602J
Heat exchanger
Gas piping connection port
Liquid piping connection port
Fan
R3T
R1T
Electronic
expansion valve
Filter Filter
R2T

Daikin FXAQ07MVJU Specifications

General

Brand	Daikin
Model	FXAQ07MVJU
Category	Air Conditioner
Language	English
