44 Photocatalytic Air Purifiers

Removal Procedure SiBE81-623A

7.2 Removal of Streamer Electric Discharge Unit

Warning Be sure to wait 10 minutes or more after turning off all power supplies before disas-

sembling work.

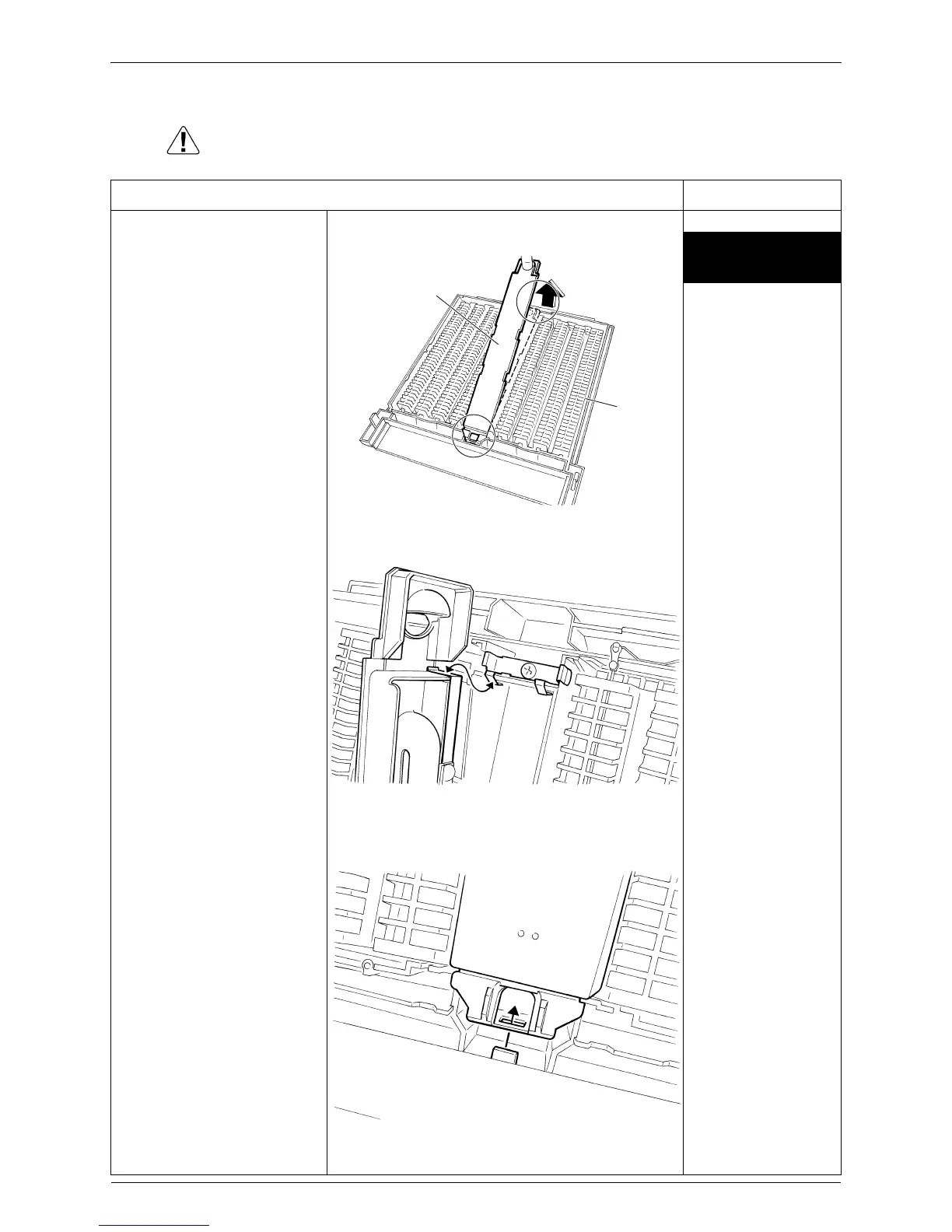

Procedure Points

(1) Catch the upper hole

with your finger and

lift it up.

Preparation

in advance

* Remove the plasma ion-

izer unit.

(2) Zoomed up view of

part A.

Part A

(3) Zoomed up view of

part B.

Part B

Part A

Streamer electric

discharge unit

Plasma

ionizer

unit.
