Daikin RKC09NV2S User Manual

PCB Si001416E

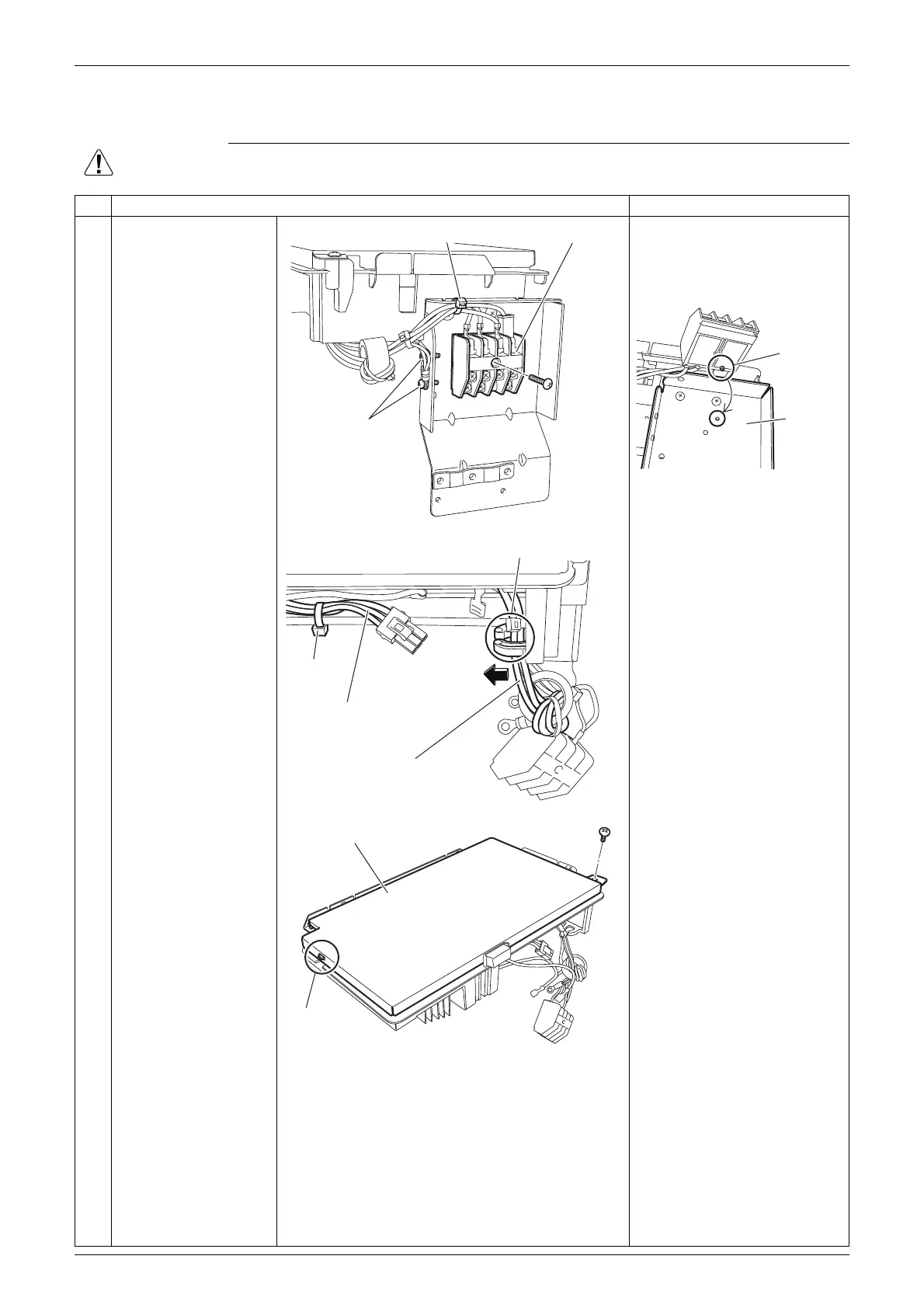

10 Removal Procedure
4. PCB
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step
Procedure Points
1
2
Cut the clamp and
remove the screw from
the terminal board.
Remove the 2 earth /
ground screws.

When reassembling, fit the
projection at the back of the
terminal board into the hole
on the mounting plate.
3
4
Release the terminal
board harnesses from
the hook inside the
electrical box.
Cut the clamp to
release the relay
harness for the
compressor.
5 Remove the screw and
unfasten the hook on
the left side to remove
the electrical box cover.
Terminal board
Clamp
Earth / ground
screw
(R21307)
Mounting
plate
Projection
(R21308)
Clamp
Relay harness
Terminal board
harness
Hook
(R21309)
Electrical box cover
Hook
(R21310)
