Reactor / Partition Plate Si001416E

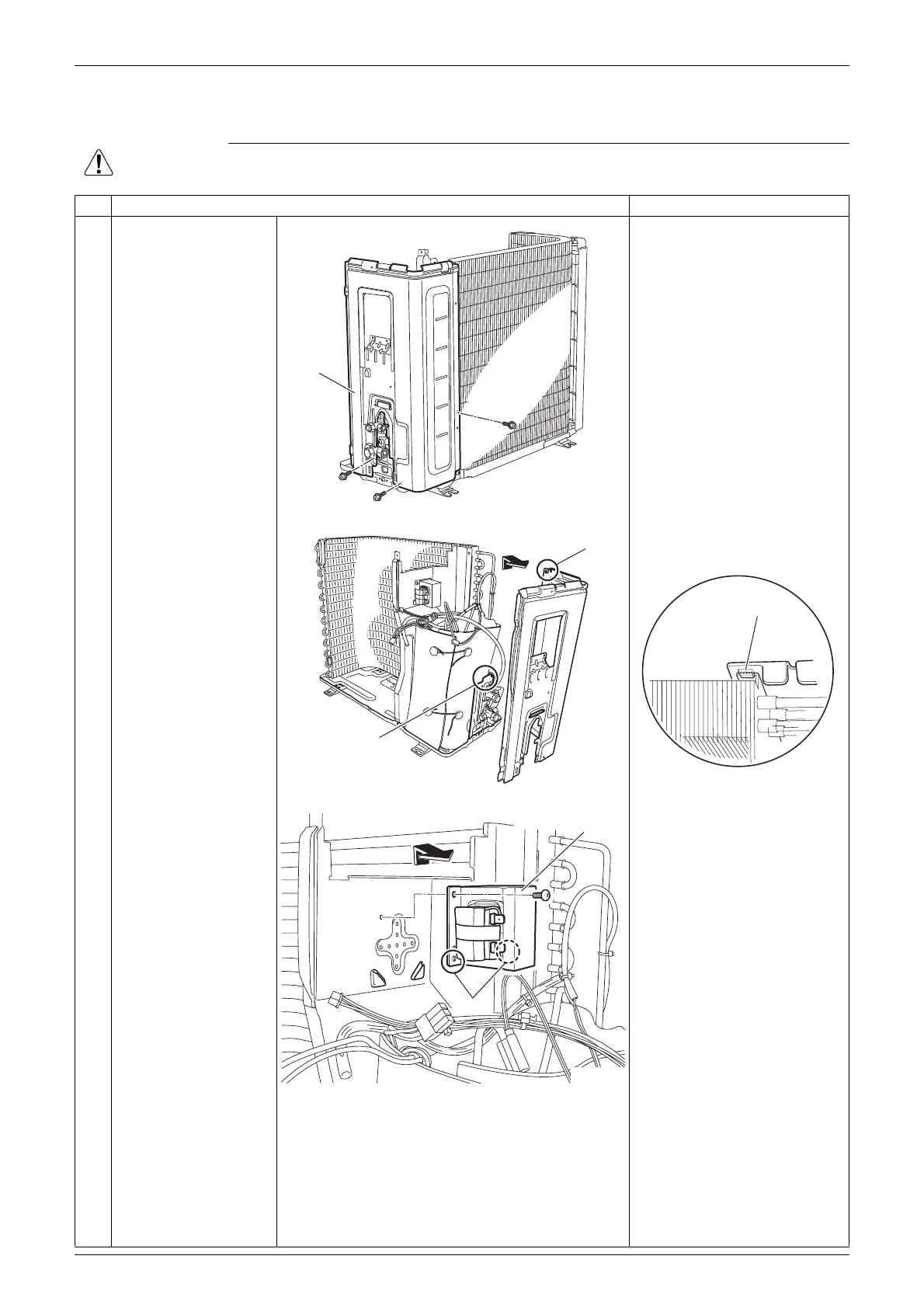

12 Removal Procedure
5. Reactor / Partition Plate
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step
Procedure Points
1 Remove the 3 screws
of the right side panel.
2 Unfasten the 2 hooks
and remove the right
side panel.

When reassembling, make
sure to fit the rear hook.
3
4
5
Remove the screw of
the reactor.
Slide the reactor
upward to unfasten the
2 hooks.
Remove the reactor.
Right side
panel
(R21315)
Hook
Hook
(R21316)
Hook
(R21317)
Reactor
Hook
(R21318)
