Si001416E Outdoor Fan / Fan Motor

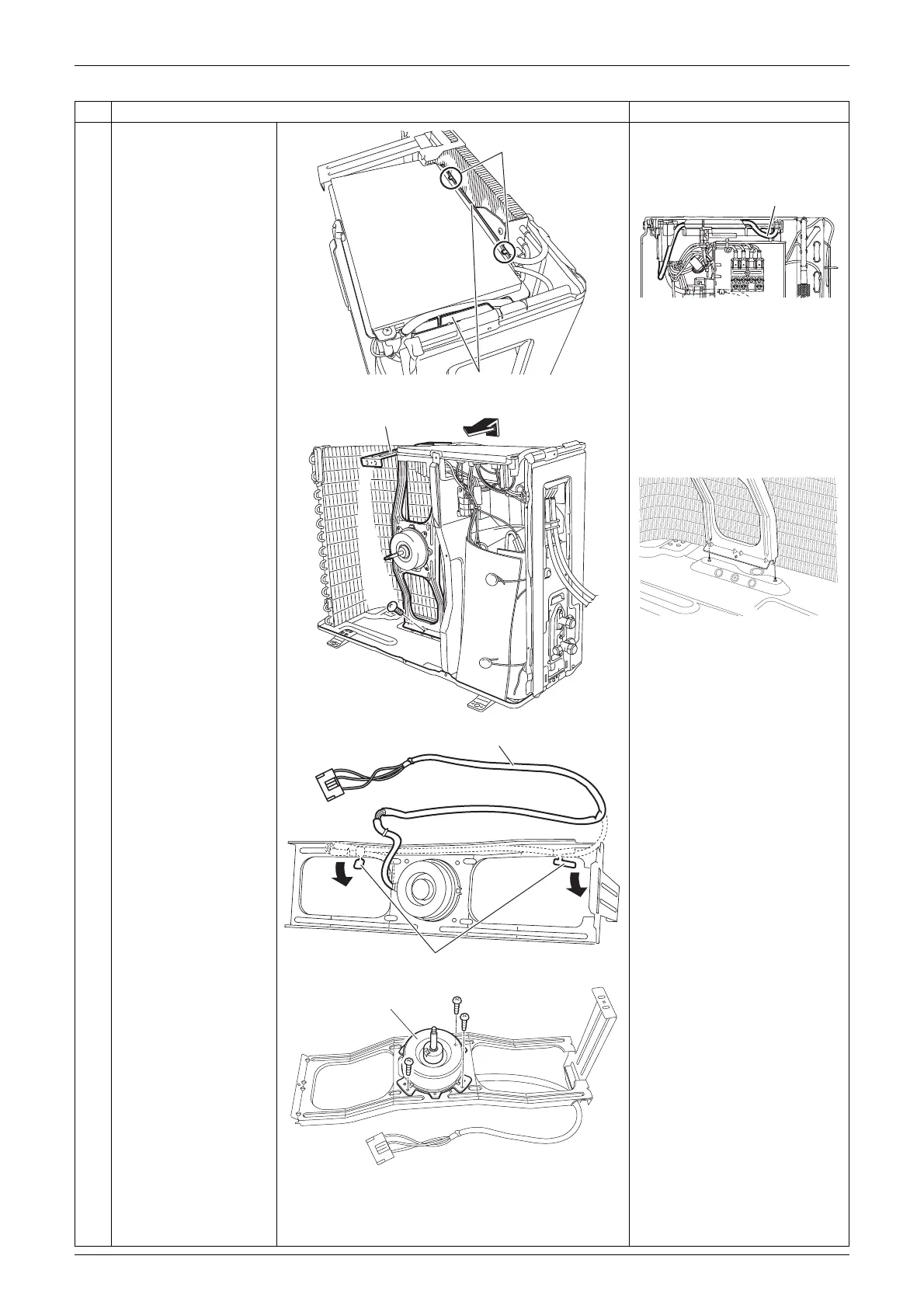

Removal Procedure 5
3 Release the fan motor
lead wire from the 2
grooves and the 2
hooks.

When reassembling, pass
the fan motor lead wire as
shown below.
4 Remove the screw and
remove the fan motor
fixing frame.

When reassembling, fit the 2
lower hooks into the bottom
frame.
5 Unfasten the 2 hooks
on the motor fixing
frame and release the
fan motor lead wire.
6 Remove the 3 screws
and remove the fan
motor.

Screw size: M4 × 16
Step
Procedure Points
Hook
Groove
(R21293)
Fan motor lead wire
(R21320)
Fan motor fixing frame
(R21294)
(R10460)
Fan motor lead wire
Hook
(R21295)
Fan motor
(R21296)
