Installation and operation manual
9
FXLQ20~63P7VEB
VRV System air conditioners
4PW53089-1B

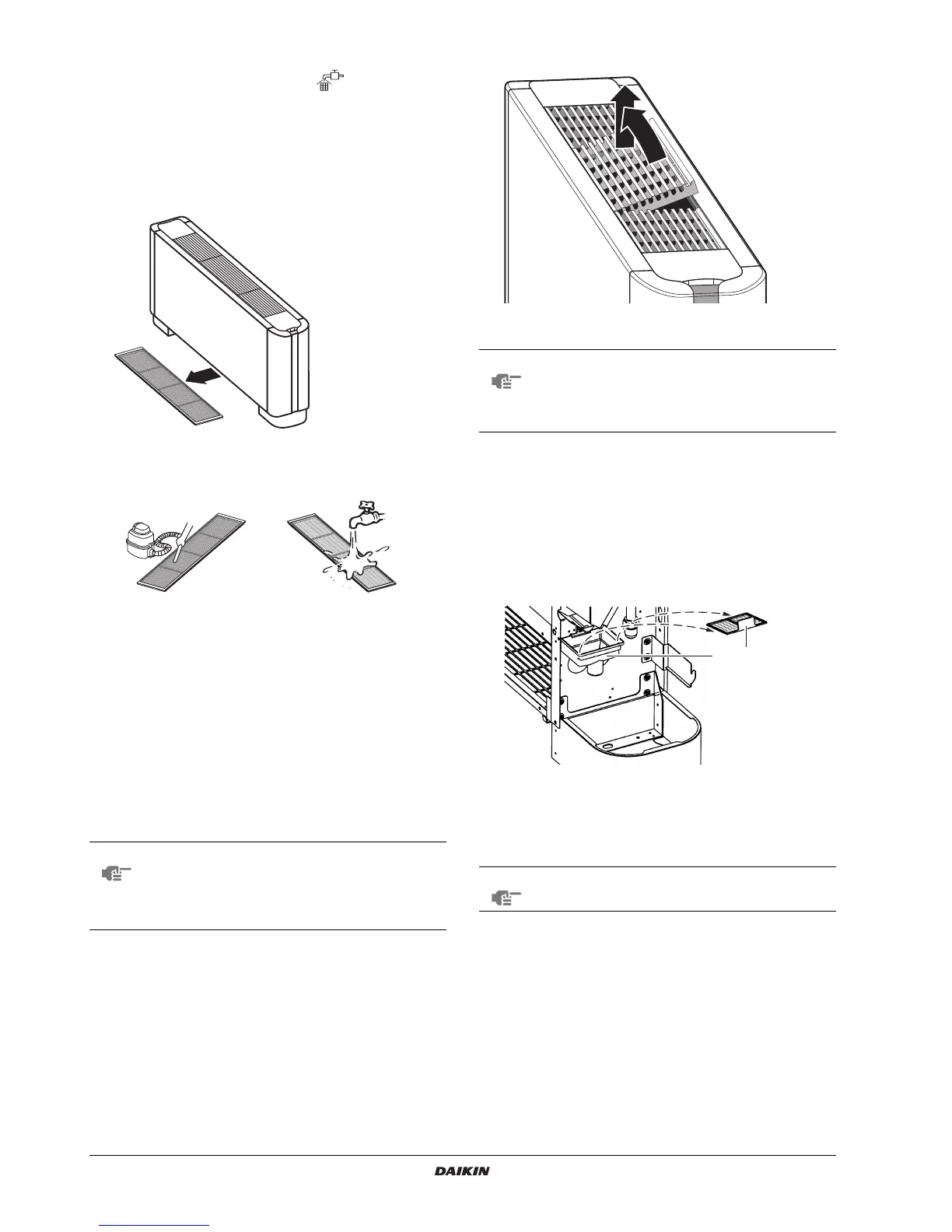

How to clean the air filter
Clean the air filter when the display shows " " (TIME TO CLEAN
AIR FILTER).
Increase the frequency of cleaning if the unit is installed in a room
where the air is extremely contaminated.
If the dirt becomes impossible to clean, change the air filter. (Air filter
for exchange is optional.)
1 Remove the air filter.
2 Clean the air filter.
Use vacuum cleaner (A) or wash the air filter with water (B).
When the air filter is very dirty, use soft brush and neutral
detergent.
Remove water and dry in the shade.
3 Fix the air filter.
4 After turning on the power, press FILTER SIGN RESET button.
The "TIME TO CLEAN AIR FILTER" display is turned off.
How to clean air outlet and outside panels
■ Clean with soft cloth.
■ When it is difficult to remove stains, use water of neutral
detergent.
■ Clean the air inlet grille when it is shut.
Removal and installation of discharge grill
Lift the rear using the front as a leverage. To install use the opposite
method.
How to clean the drain strainer
The drain strainer clears dirt out of the drain water and prevents the
piping from clogging. However, if the strainer mesh gets clogged,
water may overflow. Remove and wash the mesh with water before
and after seasons when the unit is in use and once during those
seasons.
1 Remove the drain strainer in the drip pan under the drain pan
and wash off any dirt that may have accumulated.
2 Return the drain strainer to its previous position so that the
strainer does not leak.
(A) Using a vacuum cleaner (B) Washing with water
NOTE
Do not use gasoline, benzene, thinner, polishing
powder, liquid insecticide. It may cause discolouring or
warping.
Do not let the indoor unit get wet. It may cause an
electric shock or a fire.
NOTE
Be sure to install the discharge grill in the same way as
before removal. Otherwise the air flow direction will be
avers with a short circuit of air or a wrong spreading of
air as possible result. Refer to the figures mentioned in
the note on page 2.
1 Drip pan
2 Drain strainer (take out)
NOTE
Because cleaning requires removing the front panel,
contact your local dealer.
2
1
12
