13
ENGLISH
INSTALLATION
Please study and follow the safety guidelines found
on page 6 of this manual!
DALI PHANTOM VOKAL must be installed by a
trained professional to ensure that all safety require
-
ments are met to prevent it from falling, etc.
The following tools and items are necessary for
proper installation:
• Spirit level and tape measure
• Pencil and saw or knife
• 3 mm Allen wrench/bit (included with
loudspeaker)
• Wire cutter and cutting nippers for mounting of
steel wire
• Drill and bit
• Steel wire
• Hook and rawlplugs of the correct sizes
• Paint (if needed)
• Protective template (if needed)
• Compressed air (if needed)

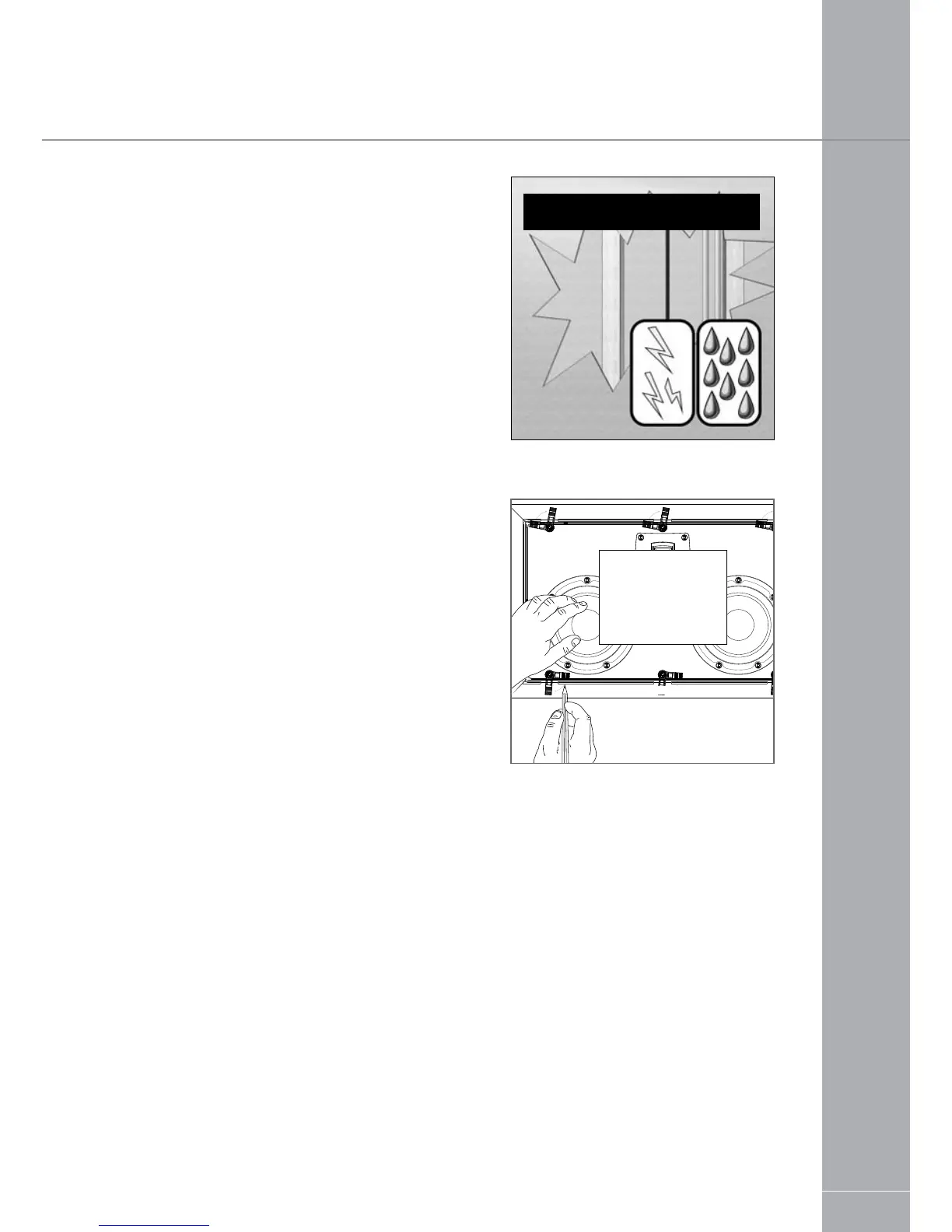

When the correct placement has been found, tape
the mounting template to the surface perfectly level.
Outline the cut-out area with a pencil. Remove the
template and drill holes for insertion of saw or knife.
Saw/cut carefully along the line marked in pencil.
A steel drop wire must be firmly attached between
a solid support in the house (ceiling beam, wall
stud, etc.) and the eyehook on the DALI PHANTOM
VOKAL in order to hold the speaker in case of a fall.
This is particularly important for ceiling mounting,
where a falling speaker can be life threatening!
BEWARE OF INSTALLATIONS
WARNING:
INSTALLATIONS MUST BE
DONE BY TRAINED PROFESSIONALS.
READ INSTRUCTION MANUAL
BEFORE INSTALLATION.
CUT-OUT SIZE:
15.7 x 9.2”
39.8 x 23.5cm
MOUNTING DEPTH:
3.8”
9.7cm
ADVARSEL:
INSTALLATION SKAL UDFØRES
AF EN KVALIFICERET MONTØR.
LÆS BRUGERMANUALEN INDEN
INSTALLATION.
UDSKÆRING:
15.7 x 9.2”
39.8 x 23.5cm
MONTERINGSDYBDE:
3.8”
9.75cm
MAKE SURE THE TEMPLATE IS 100% HORIZONTAL BEFORE CUTTING
SKABELONEN SKAL VÆRE 100% VANDRET FØR UDSKÆRING
CUT-OUT TEMPLATE
ITEM NO. 951011-3-0
