Service guide ECL 296 / ECL 310 Modbus

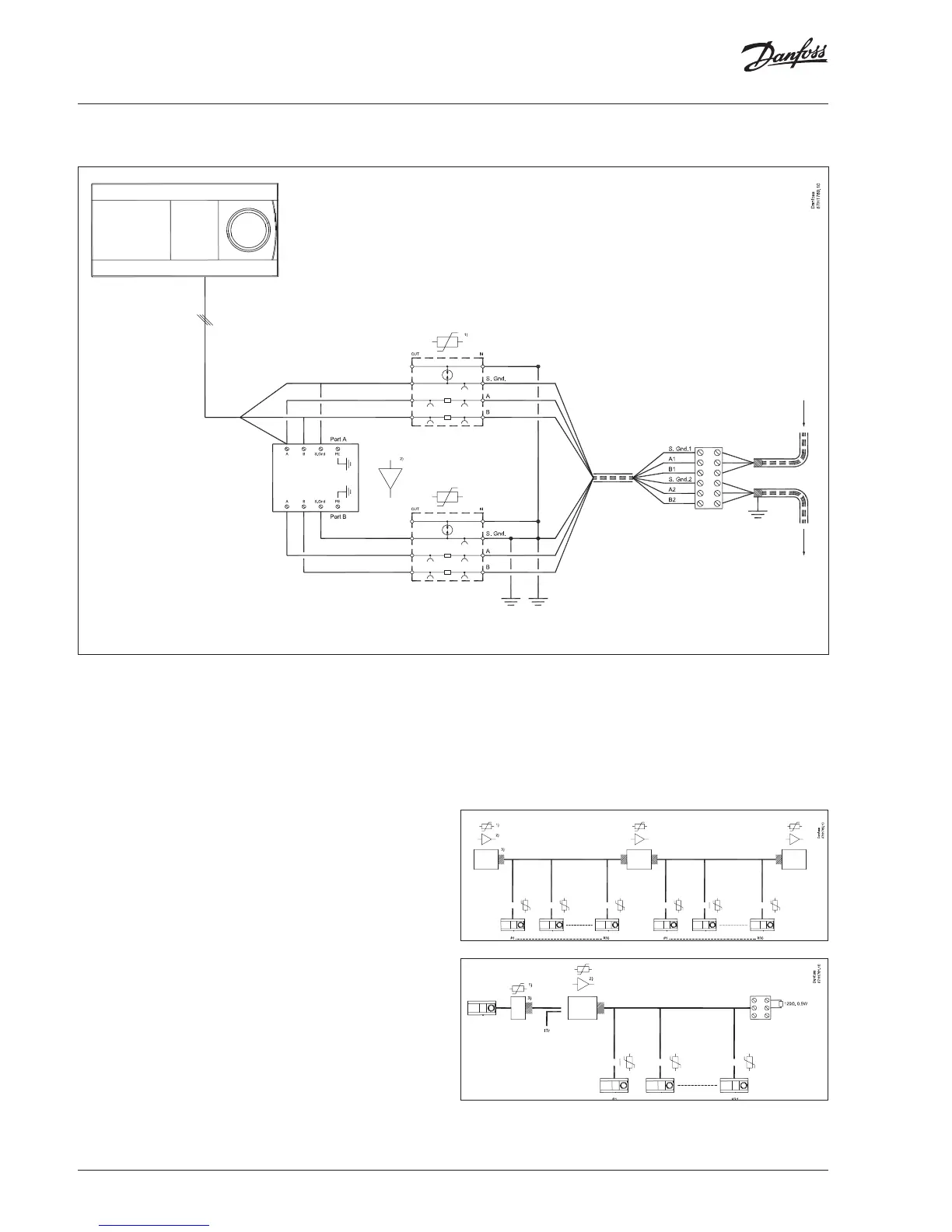

7.2 Repeater stations (individual houses with repeater)
1) = surge protector 2) = repeater
Note:
a)
Normally repeaters inputs and outputs are isolated. Check the
resistance between input common reference signal (S.Gnd1) and
output common reference signal (S.Gnd2) using multimeter.
If signals are having >1 Mohm, then connect the output side com-
mon reference signal to earth.
Input cable (coming from central heating station) shield MUST be
oating and output cable shield is connected to earth.
This is to maintain single point earthing in each network, on com-
mon reference signal (S.Gnd) and shield cable (Refer section 5 point
5, 6).
Dot on the intersection lines (S.Gnd, Earth) means that those two
signals are electrically shorted.
b)
Internal termination of repeaters can be switched ON if the con-
nection matches with section 5 point 4.a
c)
Internal termination of repeaters is switched OFF if the connec-
tion matches with section 5 point 4.b
1) = surge protector
2) = repeater
3) = line termination (LT)
