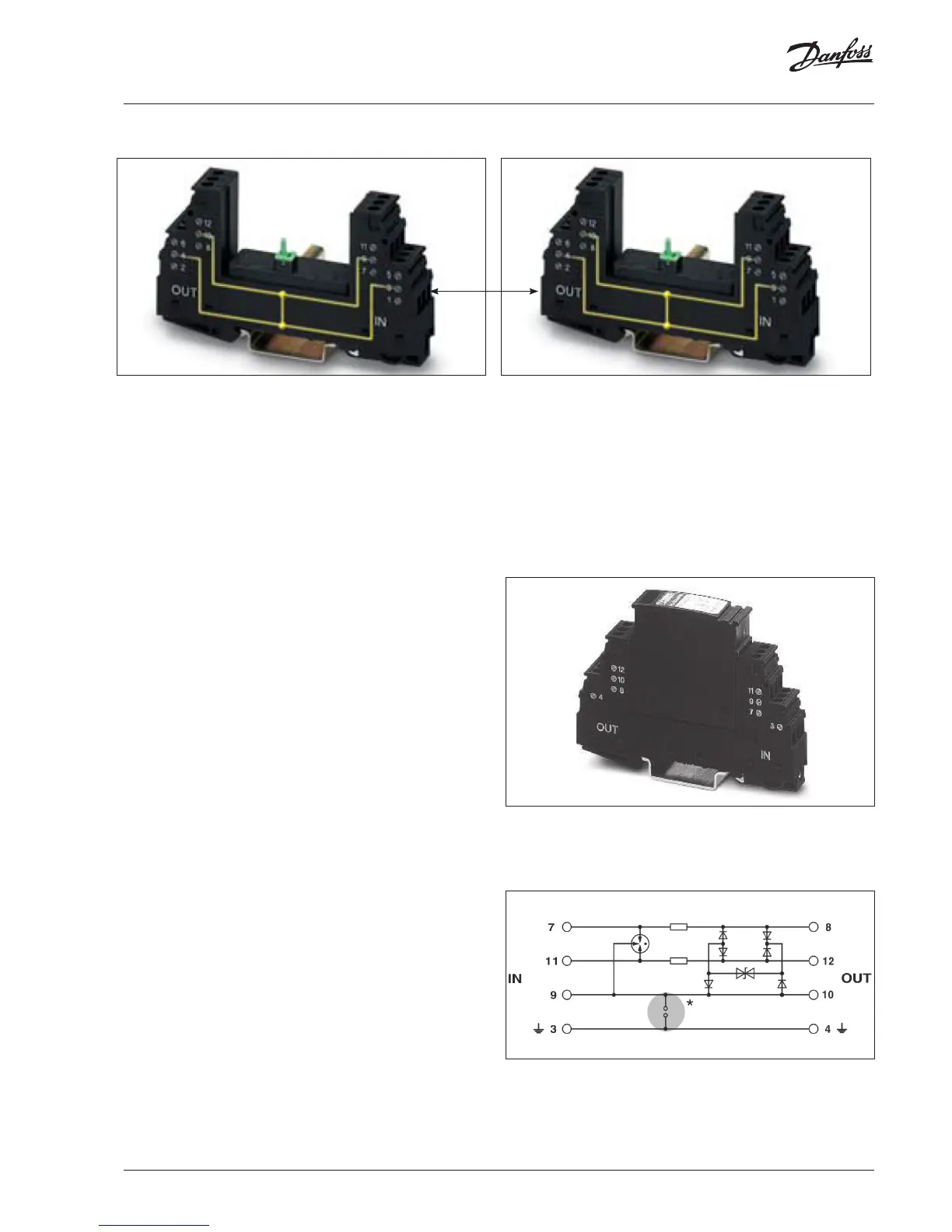

Site 1 Site 2
PT 1x2-BE PT 1x2-BE
Common signal shorted with PE (protective earth) Common signal shorted with PE (protective earth)
BUT common signal must be connected to earth ONLY ONE POINT (section 5 point 5).
So use “PT 1X2 +F-BE” and avoid “PT 1x2-BE”.
8.2 Surge protector wiring
The correct wiring is equally important to get the best “surge protec-
tion in the network level.
PT 3-PB-ST and PT 1X2+F-BE logical drawing:
The “gas discharge tubes” (between pin 7, 6 to 9 in the juxtaposed
example) is capable of handling higher surge current, but this device
is slow responding.
The “transils” (between pin 8 to 12 and 10) are capable of handling
low surge current, but very fast responding. These two sets of com-
ponents (gas discharge tubes and transils) are separated by a resistor
which forces the surge to be rst suppressed by the gas discharge
tube and the residue will be suppressed by the transil in the proper
installation (“eld cables” to “gas discharge connection points” and
“electronics to be protected” are connected to “transil connection
points”).
3-wire, PROFIBUS (up to 12 MHz)
Total width 17.7 mm
Refer the juxtaposed drawing for example.
• Odd numbered connection of PT 1X2+F-BE meant for outer led
cables (both IN and OUT cable wires of eld cable)
• Even numbered connection of PT 1X2+F-BE meant for repeater/
ECLs wires (both IN and OUT cable wires of ECLs / repeaters)
“Base part and surge protector data sheets must be referred before
making connection”.
Cable to next house
