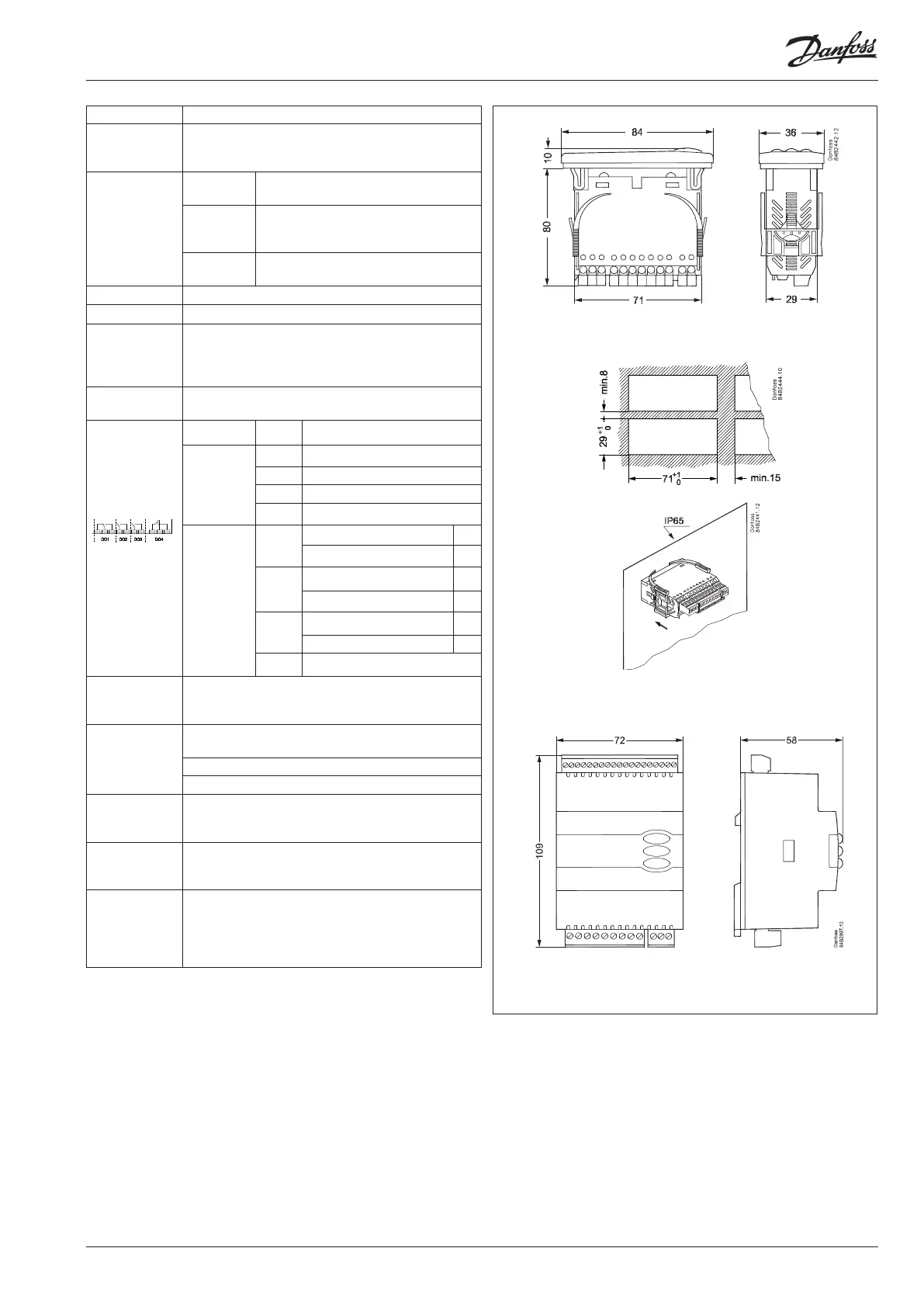

EKC 202 / 302 Manual RS8DZ702 © Danfoss 03-2012 19
Weight = 200 g
Supply voltage 230 V a.c. +10/-15 %. 2.5 VA, 50/60 Hz
Sensors 3 pcs o
either
Pt 1000 or
PTC (1000 ohm / 25°C) or
NTC-M2020 (5000 ohm / 25°C)
Accuracy
Measuring
range
-60 to +99°C
Controller
±1 K below -35°C
±0.5 K between -35 to +25°C
±1 K above +25°C
Pt 1000
sensor
±0.3 K at 0°C
±0.005 K per grad
Display LED, 3-digits
External display EKA 163A / EKA 164A
Digital inputs
Signal from contact functions
Requirements to contacts: Gold plating
Cable length must be max. 15 m
Use auxiliary relays when the cable is longer
Electrical con-
nection cable
Max.1,5 mm
2
multi-core cable
Max. 1 mm
2
on sensors and DI inputs
Relays*
IEC60730
EKC 202
DO1 10 (6) A & (5 FLA, 30 LRA)
DO2 10 (6) A & (5 FLA, 30 LRA)
DO3 6 (3) A & (3 FLA, 18 LRA)
DO4** 4 (1) A, Min. 100 mA**
EKC 302
DO1
10 (6) A & (5 FLA, 30 LRA) 1)
16 (8) A & (10 FLA, 60 LRA) 2)
DO2
6 (3) A & (3 FLA, 18 LRA) 1)
10 (6) A & (5 FLA, 30 LRA) 2)
DO3
6 (3) A & (3 FLA, 18 LRA) 1)
10 (6) A & (5 FLA, 30 LRA) 2)
DO4** 4 (1)A Min. 100 mA**
Data communi-
cation
EKC 202: Via insert card
EKC 302: Fixed MODBUS. Can be expanded with LON or
MODBUS via insert card
Environments
0 to +55°C, During operations
-40 to +70°C, During transport
20 - 80% Rh, not condensed
No shock inuence / vibrations
Density
EKC 202: IP 65 from front.
Buttons and packing are imbedded in the front.
EKC 302: IP 20
Escapement
reserve for the
clock
4 hours
Approvals
EU Low Voltage Directive and EMC demands re CE-
marking complied with
EKC 202: UL approval acc. UL 60730
LVD tested acc. EN 60730-1 and EN 60730-2-9, A1, A2
EMC tested acc. EN 61000-6-3 and EN 61000-6-2
* EKC 202: DO1 and DO2 are 16 A relays. DO3 and DO4 are 8 A relays. Above max. load must be
kept.
EKC 302: DO1 are 20 A relays. DO2 and DO3 are 16 A relays. DO4 are 10 A relays. The max. load
listed above must be observed when connecting without zero-crossing control. When connecting
with zero-crossing control, the load must be increased to the value indicated by 2)
** Gold plating ensures make function with small contact loads
1) With external relay (c70=ON) (zero-crossing control disabled)
2) Without external relay (c70=OFF) (zero-crossing control enabled)
Relay contact and controller supply must use same phase and the load (compressor) must phase
compensated to Cos ϕ = 1.
Technical data
