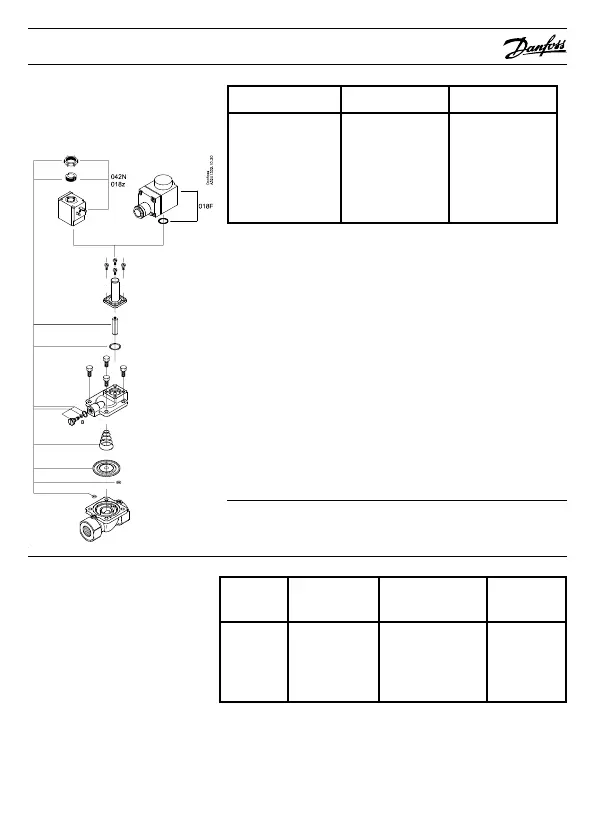

Spare parts high performance (blue) range
Spare parts set for
EV220B 15-50
Equalising orice sets are also available for Danfoss EV220B
valves with other seal materials.
1)
See page 20 for description of seal materials
Equalising orice set
The equalising orice set
contains an equalising ori-
ce with O-ring and gasket.
Valve closing times can be
changed by replacing the
standard equalising orice
with that of another size
(see also “Opening and clos-
ing times”, page 23).
Spare parts sets are also available for Danfoss EV220B valves with
other seal materials.
1)
See page 20 for description of seal materials
The spare parts set contains locking button and
nut for coil, armature with valve plate and spring,
O-ring for armature tube, spring and diaphragm,
two O-rings for servo system and O-ring and
gasket for orice.
Isolating diaphragm kit: See page 32
Type Seal materiale Code no.
EV220B 15
EV220B 20
EV220B 25
EV220B 32
EV220B 40
EV220B 50
EPDM
1)
EPDM
1)
EPDM
1)
EPDM
1)
EPDM
1)
EPDM
1)
032U1071
032U1073
032U1075
032U1077
032U1079
032U1081
Orice Seal material Standard orice
for valve type
Code no.
0.5
0.8
1.2
1.4
EPDM
1)
EPDM
1)
EPDM
1)
FKM
1)
EV220B 15 - 20
EV220B 25 - 40
EV220B 50
EV220B 40 - 50
032U0082
032U0084
032U0086
032U0087
