3. Lubricate and install O-ring (810A) onto plug (810). Using an 11/16 in. hex wrench, install plug (810).
Torque to 37 N•m [27 lbf•ft].

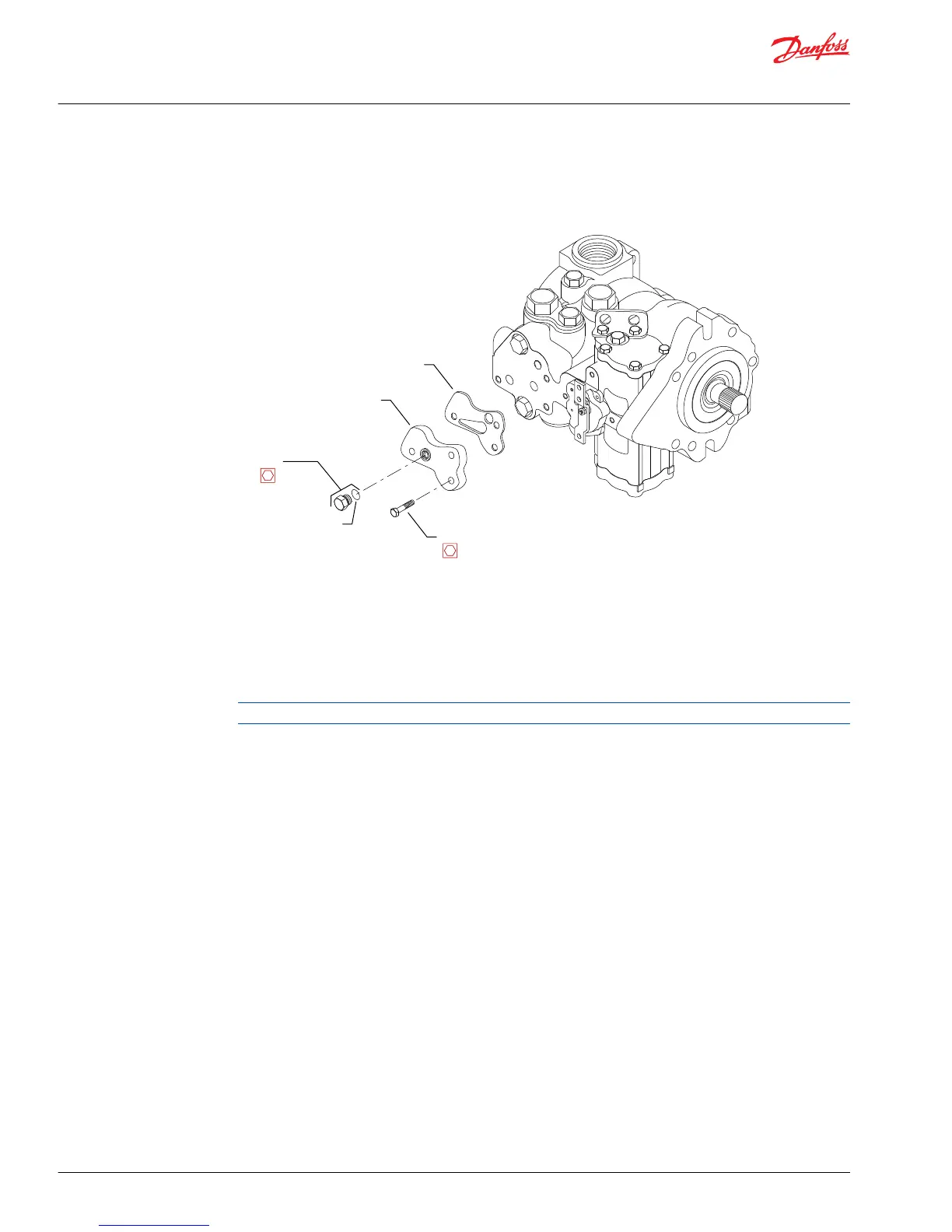

Pressure filtration adapter removal/installation
805
801
810
11/16 in
810A
P106 642E
806
1/2 in
Charge pump
Removal
If a gear pump is attached to the auxiliary pad, remove the gear pump and O-ring or gasket.
1. Using a 9/16 in. hex wrench, remove screws (1506) and cover plate (1505). Remove and discard seal
(1504).
2. Using a 9/16 in. hex wrench, remove screws (1502). Remove auxiliary pad (1503).
3. Remove and discard O-ring (141) and load ring (142).
4. Remove gerotor cover (155) and gerotor (603).
Service Manual
Series 40 M46 Variable Pumps
Minor repair
30 |
©
Danfoss | September 2017 11026743 | AX00000027en-US0202
