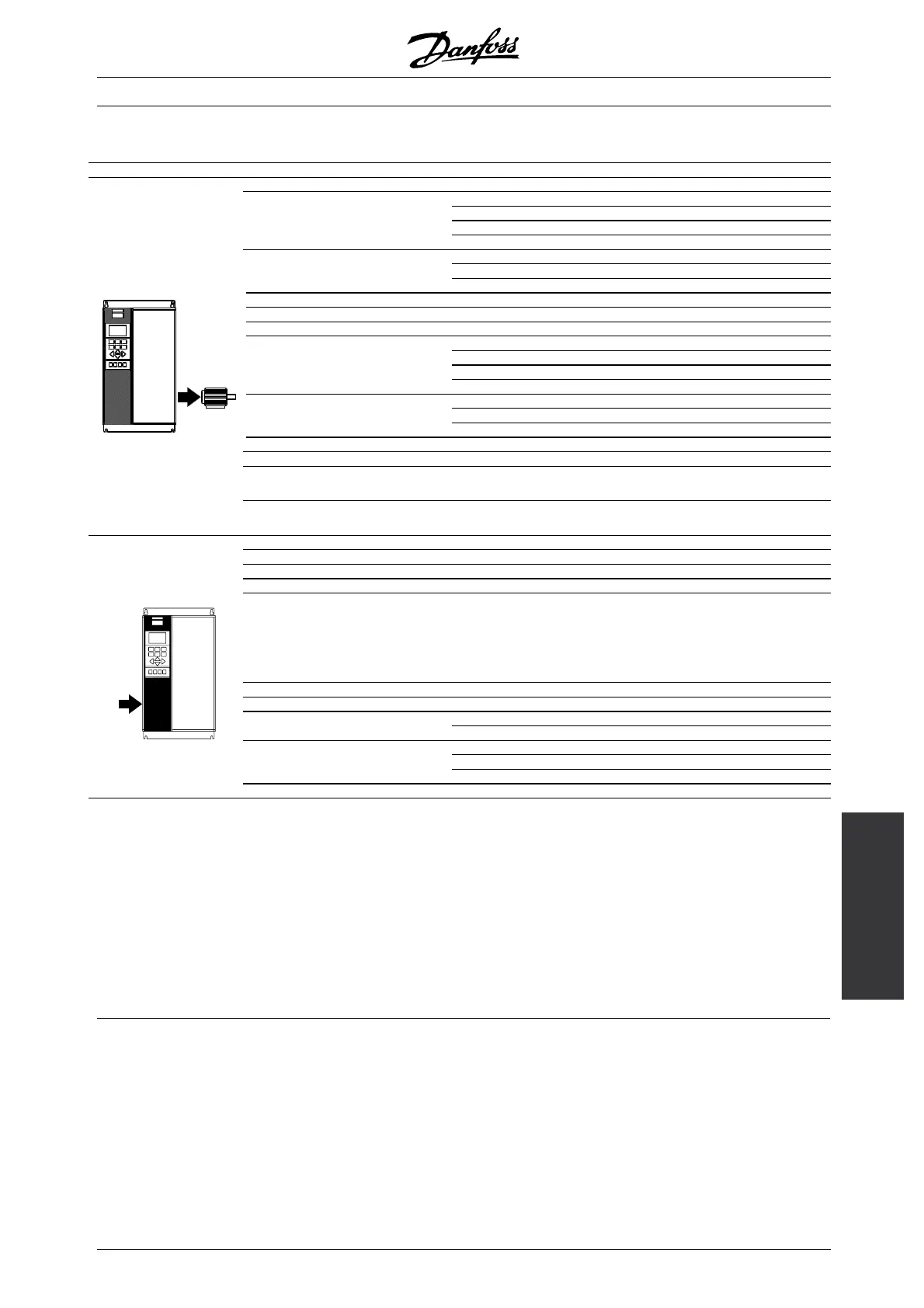

■ Compact, Mains supply 3 x 200 - 240 V
According to international requirements VLT type 5032 5042 5052
Normal overload torque (110 %):
Output current I
VLT,N
[A] (200-230 V) 115 143 170
I
VLT, MAX
(60 s) [A] (200-230 V) 127 158 187
I
VLT,N
[A] (231-240 V) 104 130 154
I
VLT, MAX
(60 s) [A] (231-240 V) 115 143 170
Output S
VLT,N
[kVA] (208 V) 41 52 61
S
VLT,N
[kVA] (230 V) 46 57 68
S
VLT,N
[kVA] (240 V) 43 54 64
Typical shaft output [HP] (208 V) 40 50 60
Typical shaft output [kW] (230 V) 30 37 45
High overload torque (160 %):
Output current I
VLT,N
[A] (200-230 V) 88 115 143
I
VLT, MAX
[A] (200-230 V) 132 173 215
I
VLT,N
[A] (231-240 V) 80 104 130
I
VLT, MAX
[A] (231-240 V) 120 285 195
Output S
VLT,N
[kVA] (208 V) 32 41 52
S
VLT,N
[kVA] (230 V) 35 46 57
S
VLT,N
[kVA] (240 V) 33 43 54
Typical shaft output [HP] (208 V) 30 40 50
[kW] (230 V) 22 30 37
Max. cable cross-section to motor
and loadsharing
[mm
2
]
4,6
[AWG]
2,4,6
120
300 mcm
Max. cable cross-section to brake
[mm
2
]
4,6
[AWG]
2,4,6
25
4
Normal overload torque (110 %):
Rated input current I
L,N
[A] (230 V) 101.3 126.6 149.9
Normal overload torque (150 %):
Rated input current I
L,N
[A] (230 V) 77,9 101,3 126,6
Max. cable cross-section
power supply
[mm
2
]
4,6
[AWG]
2,4,6
120
300 mcm
Min. cable cross-section to motor,
power
supply, brake and loadsharing
[mm
2
]
4,6
[AWG]
2,4,6
6
8
Max. pre-fuses (mains) [-]/UL [A]
1
150/150 200/200 250/250
Efficiency
3
0,96-0,97
Power loss Normal overload [W] 1089 1361 1612
High overload [W] 838 1089 1361
Weight IP 00 [kg] 101 101 101
Weight IP 20 Nema1 [kg] 101 101 101
Weight IP 54 Nema12 [kg] 104 104 104
Enclosure IP 00 / Nema 1 (IP 20) / IP 54
1. For type of fuse see section Fuses
2. American Wire Gauge.
3. Measured using 30 m screened motor cables at rated load and rated frequency.
4. Max. cable cross-section is the maximum possible cable cross-section allowed to be fitted on
the terminals. Min. cable cross-section is the minimum allowed cross-section. Always comply
with national and local regulations on min. cable cross-section.
5. Weight without shipping container.
6. Connection stud: M8 Brake: M6.
