VLT
®
5000/6000/8000 Series
Electrical installation
■
Motor and DC coils connections on IP 00
IP 00 en
closed VLTs 5300-5500, VLT 6350-6550 and
VLT 8350-8550 require installation of the motor and
DC coils by the customer. Minimum length of cables
are sup
plied with the VLT frequency converter.

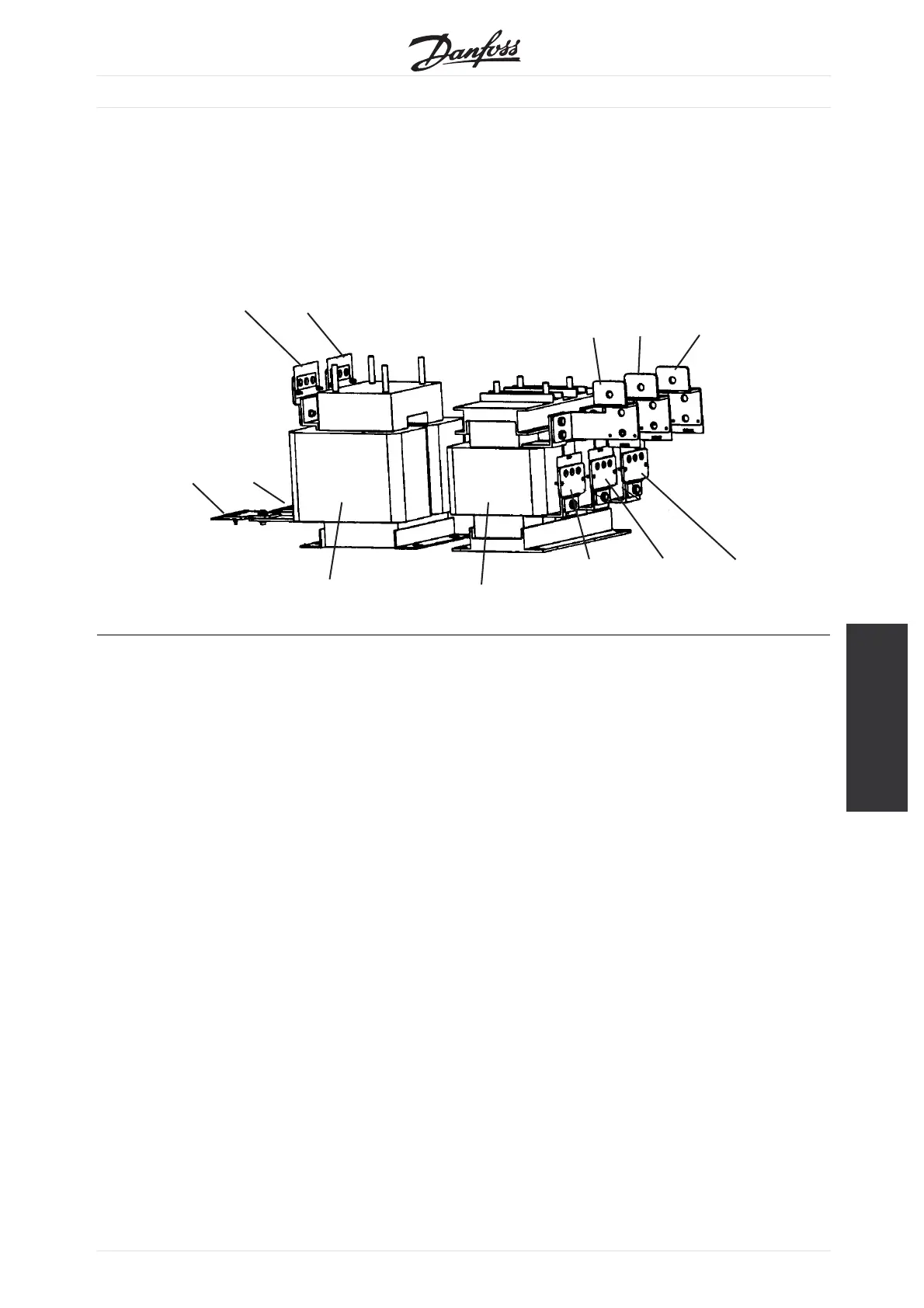

See below drawing for the connection between DC
coils and the VLT frequency converter and motor
coils a
nd the VLT frequency converter.
To DC bus line
+DC 118, - DC 117
To DC bus line
+DC 89, - DC 88
To motor
U/T1/96, V/T2/97, W/T3/98
U2/T1/119, V2/T2/120, W2/T3/121
To motor terminals on VLT
Motor coils
DC bus coils
MG.56.A2.02 - VLT is a registered Danfoss trademark
23
