Danfoss VLT CDS 803 Quick Guide

1.4 Programming
1.4.1 Local Control Panel (LCP)
NOTICE
LCP is NOT supported in SW 1.0X!
The LCP is divided into 4 functional sections.
A. Display
B. Menu key
C. Navigation keys and indicator lights (LEDs)
D. Operation keys and indicator lights (LEDs)
130BB765.11
Com.
1-20 Motor Power
[5] 0.37kW - 0.5HP
Setup 1
A
B
1
12
13 14 15
11
11
10
9
8
7
6
5
4
3
2
C
D
Status
Main
Menu
Quick
Menu
Hand
On
OK
Menu
Reset
Auto
On
Alarm
Warn.
On
11
Back
O

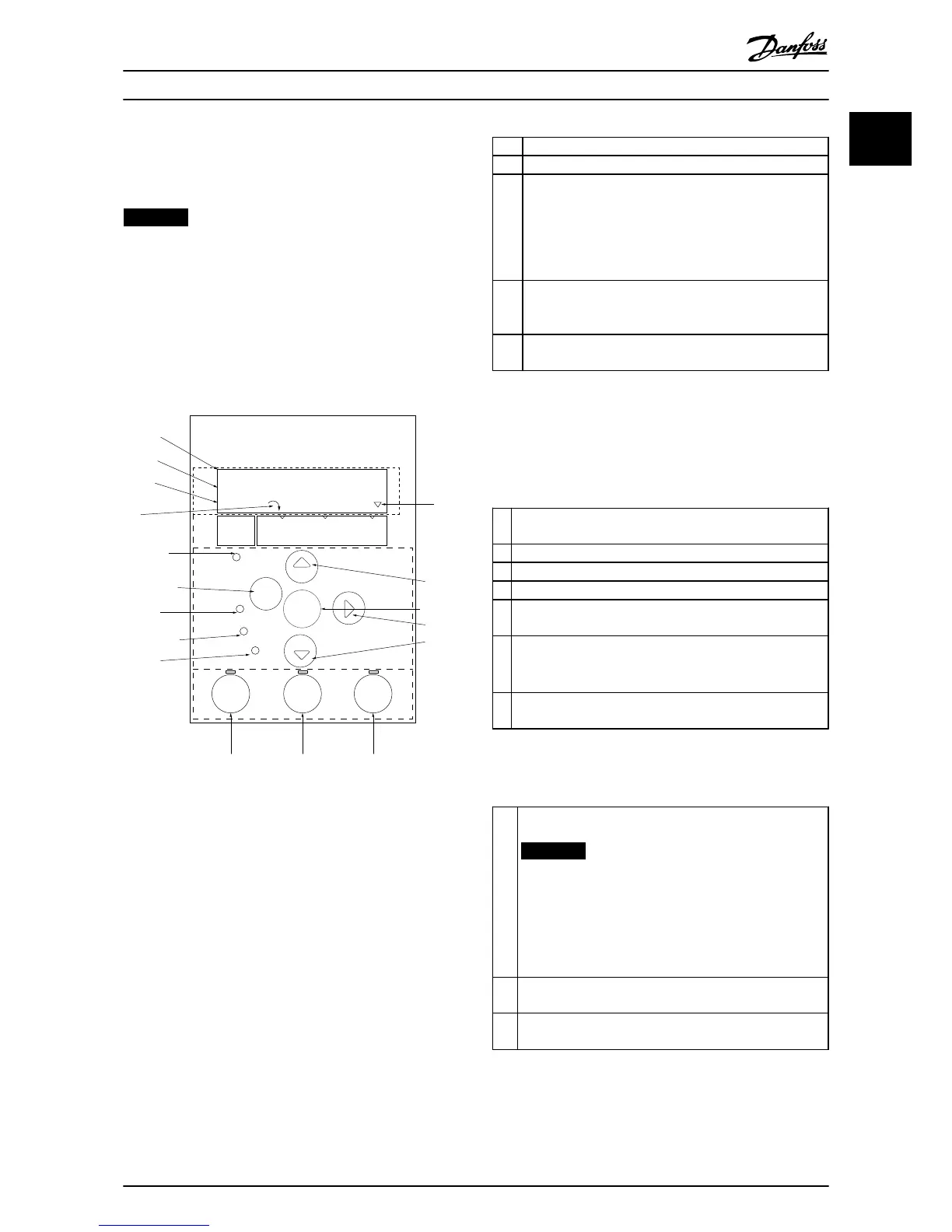

Illustration 1.12 Local Control Panel (LCP)
A. Display
The LCD-display is back-lit with 2 alphanumeric lines. All
data is displayed on the LCP.
Information can be read from the display.
1
Parameter number and name.
2 Parameter value.
3 Set-up number shows the active set-up and the edit set-
up. If the same set-up acts as both active and edit set-up,
only that set-up number is shown (factory setting). When
active and edit set-ups differ, both numbers are shown in
the display (set-up 12). The number flashing, indicates the
edit set-up.
4 Compressor direction is shown to the bottom left of the
display – indicated by a small arrow pointing either
clockwise or counterclockwise.
5 The triangle indicates if the LCP is in Status, Quick Menu
or Main Menu.
Table 1.10 Legend to Illustration 1.12
B. Menu key
Press [Menu] to select between Status, Quick Menu or
Main Menu.
C. Navigation keys and indicator lights (LEDs)
6 Com LED: Flashes when bus communication is communi-
cating.
7 Green LED/On: Control section is working.
8 Yellow LED/Warn.: Indicates a warning.
9 Flashing Red LED/Alarm: Indicates an alarm.
10 [Back]: For moving to the previous step or layer in the
navigation structure
11
[
▲
] [
▼
] [►]: For maneuvering between parameter groups,
parameters and within parameters. Can also be used for
setting local reference.
12 [OK]: For selecting a parameter and for accepting changes to
parameter settings
Table 1.11 Legend to Illustration 1.12
D. Operation keys and indicator lights (LEDs)
13
[Hand On]: Starts the compressor and enables control of
the frequency converter via the LCP.
NOTICE
Terminal 27 Digital Input (5-12 Terminal 27 Digital
Input) has stop inverse as default setting. This
means that [Hand On] does not start the
compressor if there is no 24 V to terminal 27.
Connect terminal 12 to terminal 27.
14 [Off/Reset]: Stops the compressor (Off). If in alarm mode,
the alarm is reset.
15 [Auto On]: Frequency converter is controlled either via
control terminals or serial communication.
Table 1.12 Legend to Illustration 1.12
Quick Guide
Quick Guide
MG18M102 Danfoss A/S © Rev. 09/2014 All rights reserved. 11
1
1
