1.3.3 Side-by-Side Installation
The frequency converter can be mounted side-by-side and requires the clearance above and below for cooling.
Frame IP class Clearance above/below [mm/inch]
H3 IP20 100/4
H4 IP20 100/4
H5 IP20 100/4
Table 1.5 Clearance
NOTICE
With IP21/Nema Type1 option kit mounted, a distance of 50 mm between the units is required.

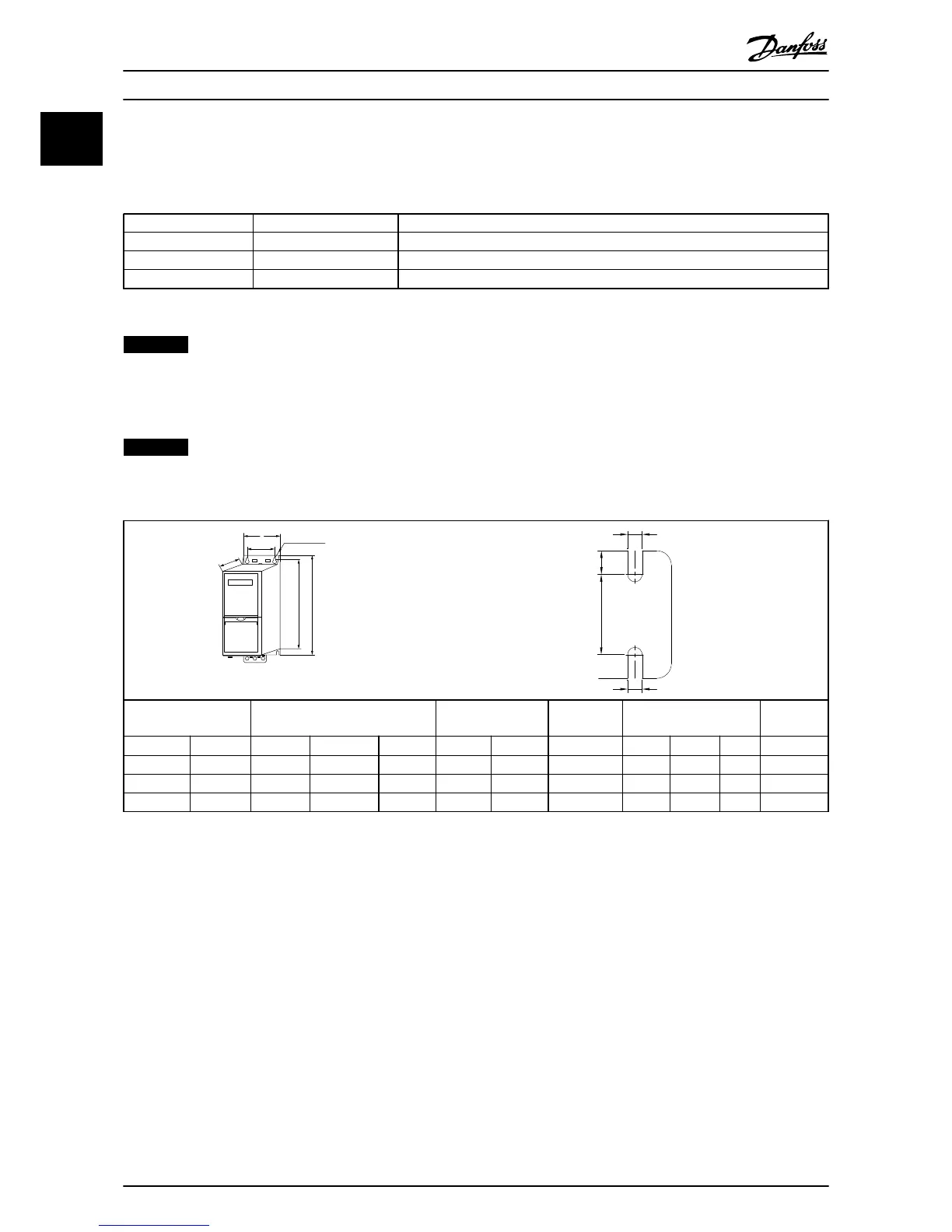

1.3.4 Dimensions
NOTICE
The illustration in Table 1.6 is with LCP, but all
dimensions are the same without LCP.
A
a
b
B
C
 D
130BB614.10
e
f
a
e
130BC246.10
Enclosure Height [mm] Width [mm] Depth [mm] Mounting hole [mm] Max.
Weight
Frame IP Class A
A
1)
a B b C d e f kg
H3 IP20 255 329 240 100 74 206 11 5.5 8.1 4.5
H4 IP20 296 359 275 135 105 241 12.6 7 8.4 7.9
H5 IP20 334 402 314 150 120 255 12.6 7 8.5 9.5
Table 1.6 Dimensions
1) Including decoupling plate
The dimensions are only for the physical units, but when installing in an application it is necessary to add space for free air
passage both above and below the units. The amount of space for free air passage is listed in Table 1.5.
