CBX ELECTRICAL CONNECTIONS
4
Pulled up to External
Input Device Power
Input
Signal
Input Device

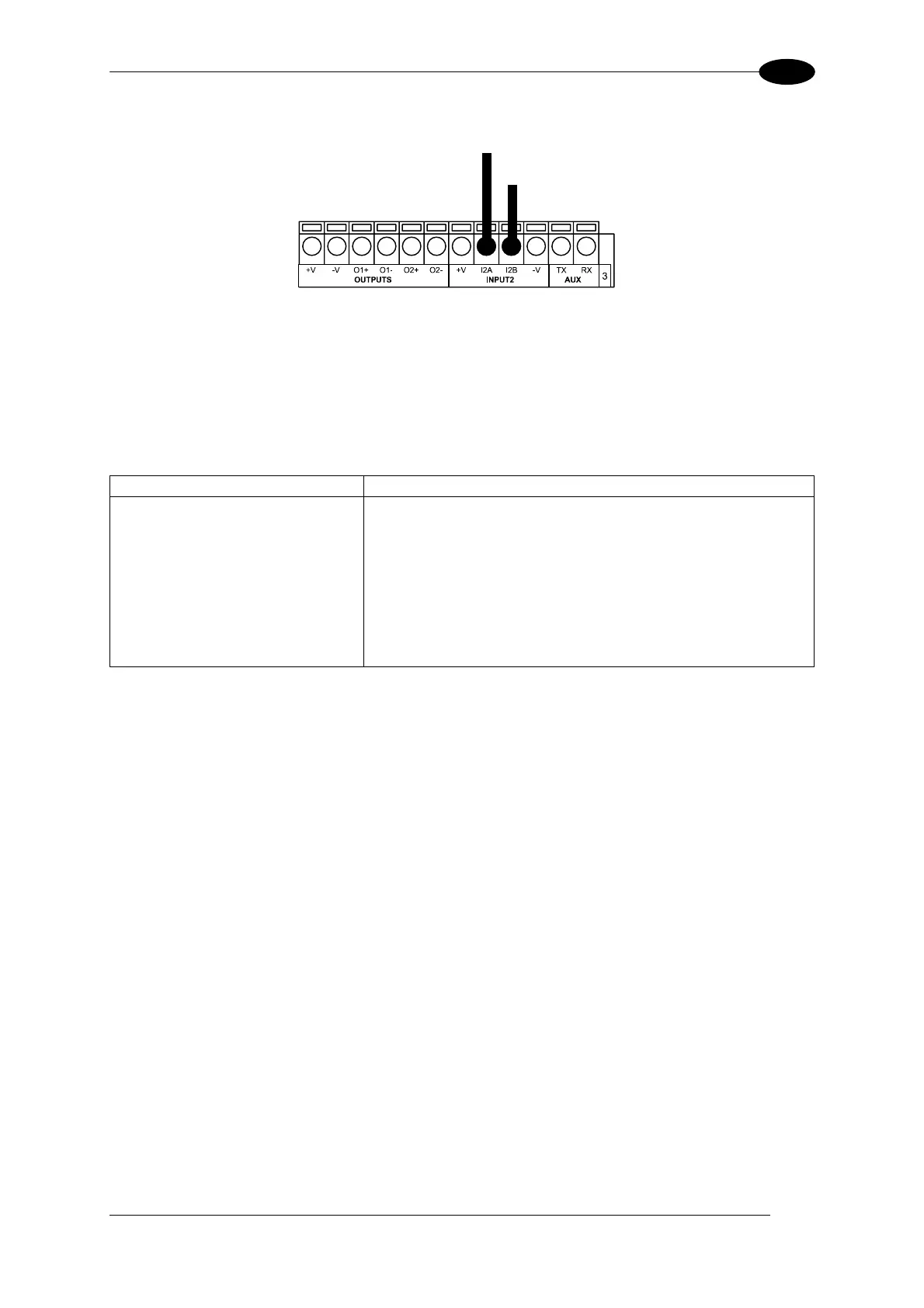

Figure 55 - NPN Input 2 Using External Power
4.5 OUTPUTS
Thee optocoupled general purpose outputs are available. The meaning of the three outputs
can be defined by the user. They are typically used either to signal the data collection result
or to control an external lighting system.
CBX100/500
Function
+V Power Source - Outputs
O1+ Output 1 +
O1- Output 1 -
O2+ Output 2 +
O2- Output 2 -
O3+ Output 3 +
O3- Output 3 -
-V Power Reference Outputs
The electrical features of the three outputs are the following:
V
CE
= 30 Vdc max.
I
CE
= 40 mA continuous max.; 130 mA pulsed max.
V
CE saturation
= 1 Vdc max. @ 10 mA
P
D
= 80 mW Max. @ 45 °C ambient temp.
By default, Output 1 is associated with the Partial Read and No Read events, which activates
when the code(s) signaled by the external trigger are not decoded, and Output 2 is
associated with the Complete Read event, which activates when all the selected codes are
correctly decoded. Output 3, by default, is not associated with any event.
The output signals are fully programmable being determined by the configured
Activation/Deactivation events, Deactivation Timeout or a combination of the two. Refer to
the Digital I/O folder in the VisiSet™ Help On Line for further details.
