19-PIN CONNECTOR ELECTRICAL CONNECTIONS
5
5 MATRIX-2000™ CONNECTOR ELECTRICAL CONNECTIONS
5.1 DB25-PIN CONNECTOR
The Matrix-2000™ reader is equipped with a 25-pin male D-Sub connector for connection to
the power supply and input/output signals. The details of the connector pins are indicated in
the following table:
13
2514
1

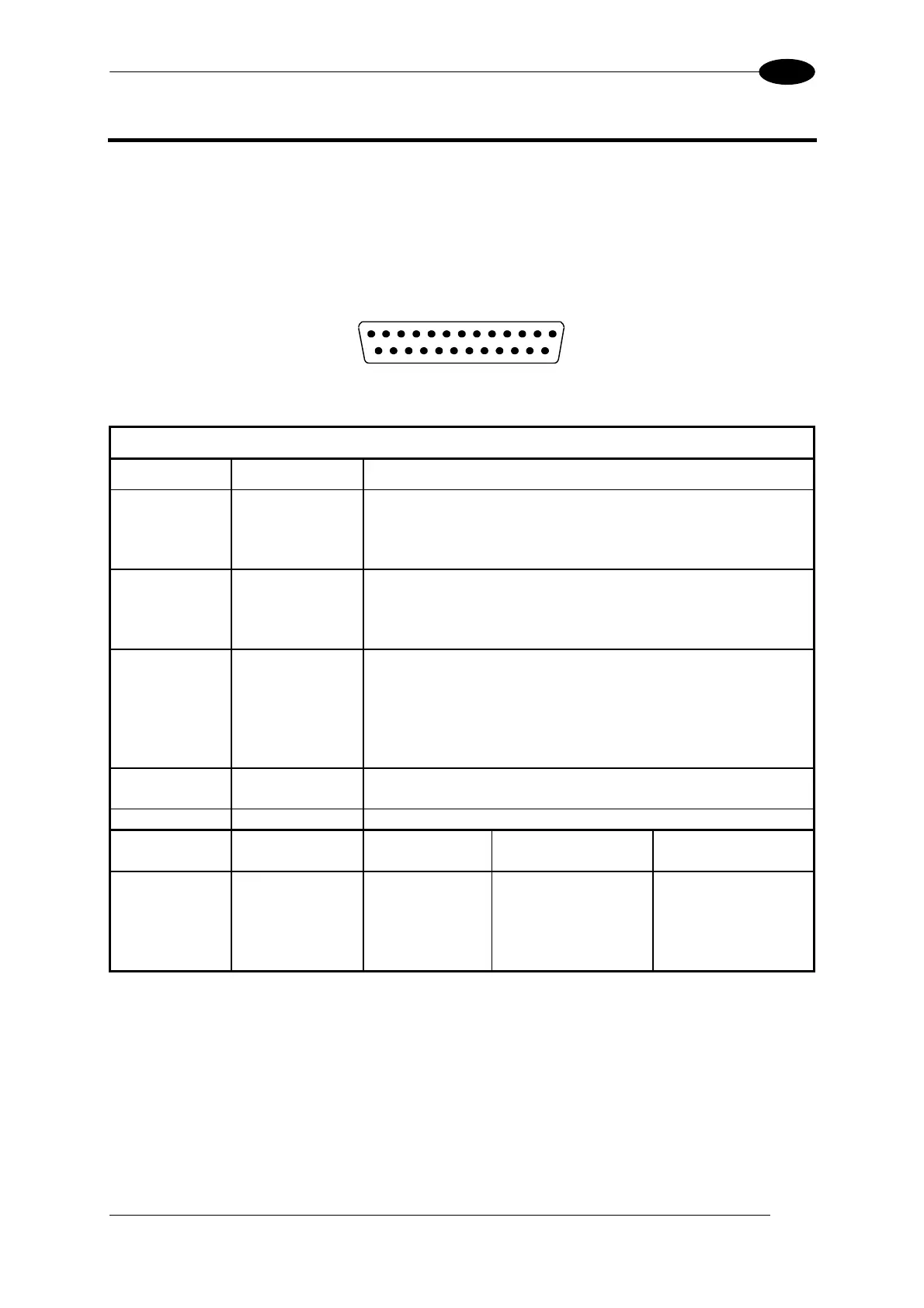

Figure 61 - 25-pin male D-Sub Connector
19-pin M16 male connector pinout
Pin Name Function
9, 13 Vdc Power supply input voltage +
23, 25 GND Power supply input voltage -
1 CHASSIS
Cable shield internally connected by capacitor to the
chassis
18 I1A External Trigger A (polarity insensitive)
19 I1B External Trigger B (polarity insensitive)
6 I2A Input 2 A (polarity insensitive)
10 I2B Input 2 B (polarity insensitive)
8 O1+ Output 1 +
22 O1- Output 1 -
11 O2+ Output 2 +
12 O2- Output 2 -
16 O3+ Output 3 +
17 O3- Output 3 -
20 RX Auxiliary RS232 RX (referred to GND)
21 TX Auxiliary RS232 TX (referred to GND)
14, 15, 24 NC Not connected
Pin Name RS232
RS485
Full-Duplex
RS485
Half-Duplex
2 TX TX+ RTX+
3 RX *RX+
4 RTS TX- RTX-
5
MAIN
INTERFACE
(SW
SELECTABLE)
CTS *RX-
7 GND_ISO GND_ISO GND_ISO
* Do not leave floating, see par. 5.5.2 for connection details.
In order to meet EMC requirements:
• connect the reader chassis to the plant earth ground by means of a flat copper braid
shorter than 100 mm;
• connect the main interface cable shield to pin 1 of the 25-pin connector;
• use two clip-on ferrite sleeves (type Stewart 28A2029-0A0 or equivalent) on the main
interface cable near the reader 25-pin connector;
• connect the Ethernet interface cable shield to reader chassis (for Matrix-21XX only)
43
