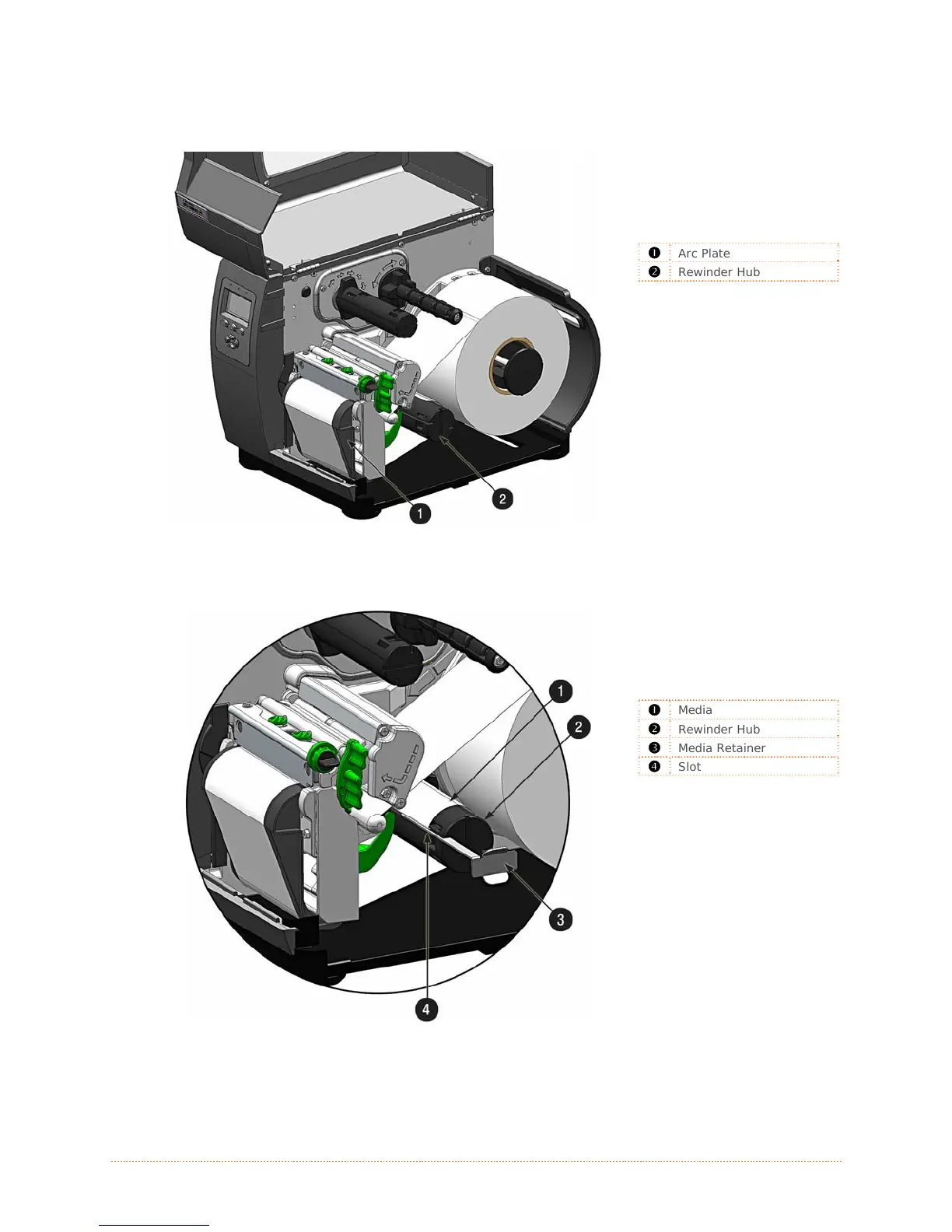

4. Load media as described in section 2.2. Feed approximately 20 inches (50 cm) of media out
of the printer. Route the media over the Arc Plate and then back into the printer and around
the Rewinder Hub.

Arc Plate

Rewinder Hub
5. Wrap the media around the Rewinder Hub. Insert the end of the media into a Slot in the
Rewinder Hub. Slide the Media Retainer into the Slot to secure the media.

Media

Rewinder Hub

Media Retainer

Slot
6. Rotate the Rewinder Hub by hand to take up any slack in the media. There should be at least
2 or 3 full wraps of the media on the Rewinder Hub before starting printing to ensure tight
rewinded rolls.

Datamax I-Class Mark II Specifications

General

Power Supply	100-240 VAC, 50-60 Hz
Print Resolution	203 dpi
Print Width	4.09 inches
Memory	16 MB DRAM, 8 MB Flash
Connectivity	USB, Serial, Ethernet
Media Handling	Roll-fed
Media Width	1.0" – 4.65" (25.4 mm – 118 mm)
Media Thickness	0.0025" – 0.010" (0.0635 mm – 0.254 mm)
Ribbon Width	1.0" – 4.5" (25.4 mm – 114.3 mm)
Ribbon Length	1968 feet (600 meters)
Print Speed	up to 12 ips
Dimensions	12.7" H x 12.6" W x 18.6" D (322.6 mm H x 320 mm W x 472.4 mm D)
