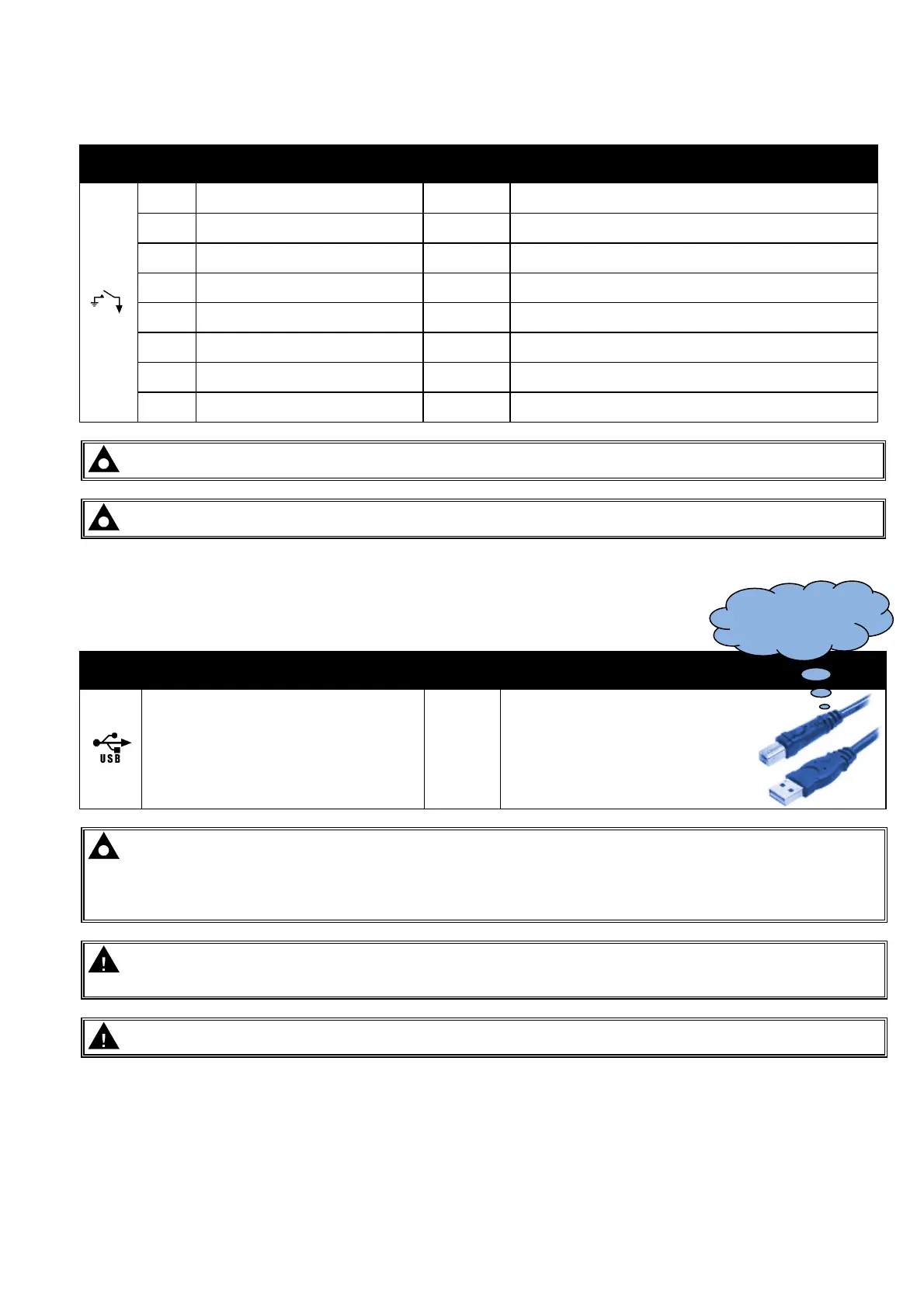

4.2.7 CONFIGURABLE DIGITAL INPUTS
PIN
No
DESCRIPTION CABLE
SIZE
NOTES
60 Configurable digital input A
0.5mm²
AWG 20
Switch to negative
61 Configurable digital input B
0.5mm²
AWG 20
Switch to negative
62 Configurable digital input C
0.5mm²
AWG 20
Switch to negative
63 Configurable digital input D
0.5mm²
AWG 20
Switch to negative
64 Configurable digital input E
0.5mm²
AWG 20
Switch to negative
65 Configurable digital input F
0.5mm²
AWG 20
Switch to negative
66
Configurable digital input G
(not available on 7200 series)
0.5mm²
AWG 20
Switch to negative
67
Configurable digital input H
(not available on 7200 series)
0.5mm²
AWG 20
Switch to negative
NOTE:- Terminals 66 to 69 are not fitted to the 7200 series controller.
NOTE:- Terminals 68 and 69 are not fitted to the 7300 series controller.
4.2.8 PC CONFIGURATION INTERFACE CONNECTOR
DESCRIPTION CABLE
SIZE
NOTES
Socket for connection to PC with 7xxx
series PC software.
0.5mm²
AWG 20
This is a standard USB type A to
type B connector.
NOTE:- The USB connection cable between the PC and the 7000 series module must not be extended
beyond 5m (5yds). For distances over 5m, it is possible to use a third party USB extender. Typically, they
extend USB up to 50m (yds). The supply and support of this type of equipment is outside the scope of
Deep Sea Electronics PLC.
CAUTION!: Care must be taken not to overload the PCs USB system by connecting more than the
recommended number of USB devices to the PC. For further information, consult your PC supplier.
CAUTION!: This socket must not be used for any other purpose.
This configuration cable
is the same as normally
used between a PC and
a USB printer!
To Next Page
