Dell 1708FP User Manual

level, a blue LED for power indication, and two audio headset jacks.

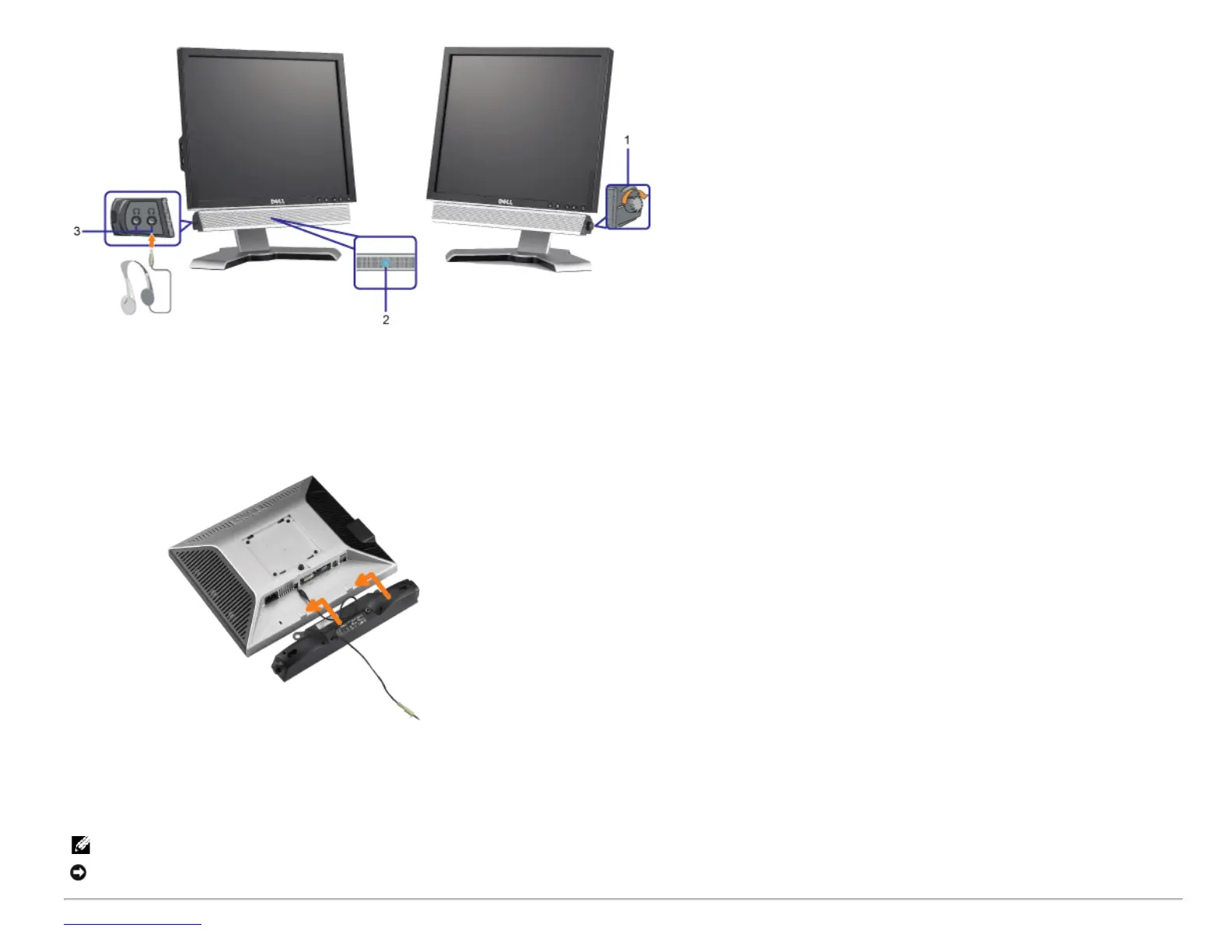

1. Power/volume control
2. Power indicator
3. Headphone connectors
Soundbar Attachment to the Monitor
1. Working from the rear of the monitor, attach the Soundbar aligning the two slots with the two tabs along the bottom rear of the monitor.
2. Slide the Soundbar to the left until it snaps into place.
3. Plug in the power cord from the Soundbar into the connector on the back of the monitor.
4. Insert the lime-green mini stereo plug from the rear of the Soundbar into the computer's audio output jack.
NOTE: Soundbar Power Connector +12V DC output is for optional only.
NOTICE: Do not use with any device other than Dell Soundbar
Back to Contents Page

Dell 1708FP Specifications

General

Pixel pitch	0.264 x 0.264 mm
Display diagonal	17 \
Display resolution	1280 x 1024 pixels
Vertical scan range	56 - 76 Hz
Horizontal scan range	30 - 81 kHz
Contrast ratio (typical)	800:1
Viewing angle, horizontal	160 °
Display brightness (typical)	300 cd/m²
Special features	UltraSharp
Power requirements	100 to 240 VAC / 50 Hz or 60 Hz + 3 Hz / 2.0A
HDCP	Yes
USB hub version	2.0
USB Type-A downstream ports quantity	4
Certification	TCO '99
Product color	Black
Market positioning	Business
Panel mounting interface	100 x 100 mm
Package weight	8400 g
Sustainability certificates	ENERGY STAR
Input current	2 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	75 W
Power consumption (off)	1 W
Power consumption (standby)	2 W
Power consumption (typical)	35 W

Weight and Dimensions

Depth (with stand)	265.2 mm
Width (with stand)	372.1 mm
Height (with stand)	512.6 mm
Weight (without stand)	3680 g
