Display back-cover
Removing the display back-cover
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD card.
3. Enter service mode.
4. Remove the base cover.
5. Remove the WLAN card.
6. Remove the display assembly.
7. Remove the hinge caps.
8. Remove the display bezel.
9. Remove the display panel.
10. Remove the camera.
About this task
The following images indicate the location of the display back-cover and provides a visual representation of the removal
procedure.
Steps

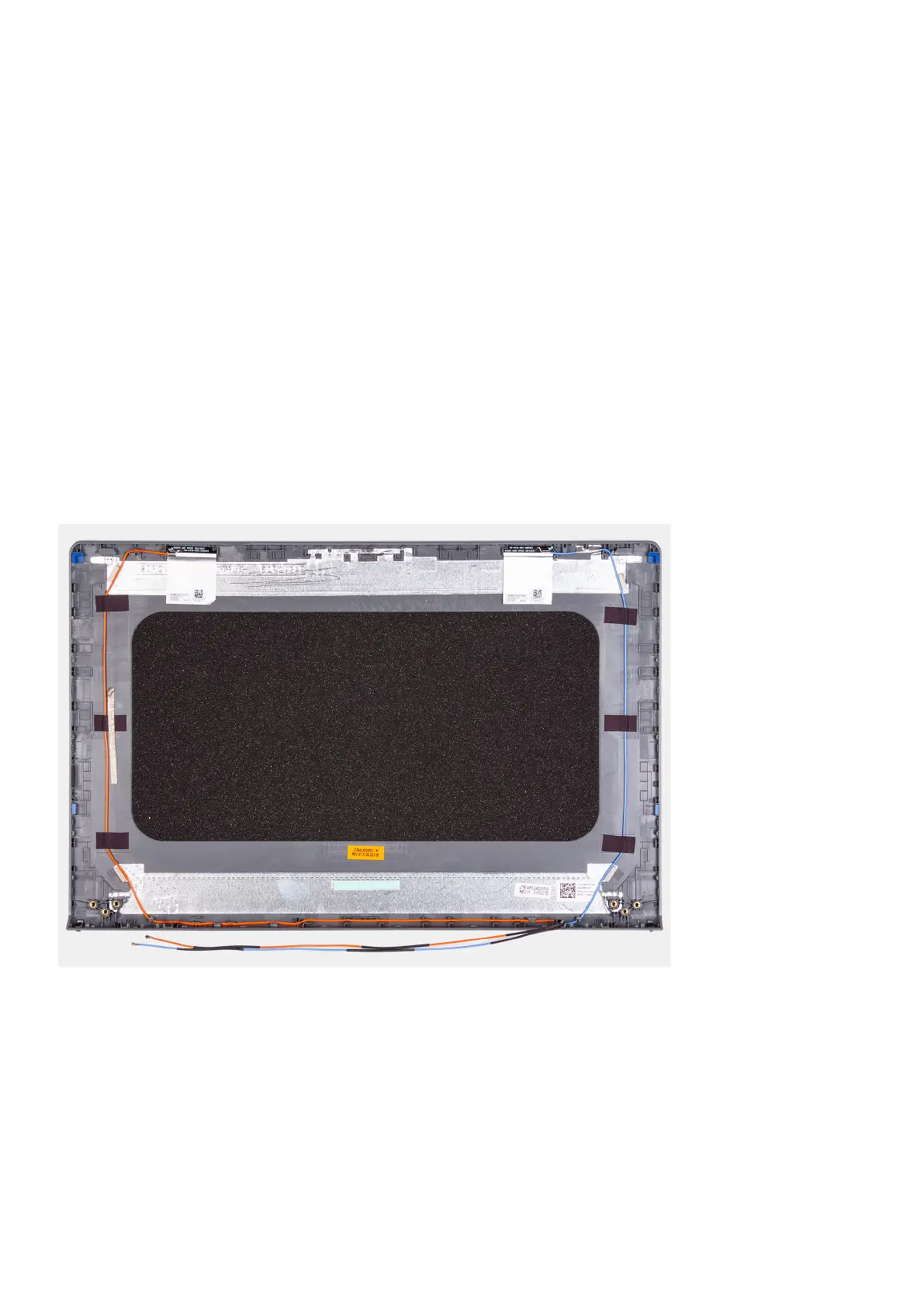

After performing all the preceding steps, you are left with the display back-cover.
Installing the display back-cover
About this task
The following images indicate the location of the display back-cover and provides a visual representation of the installation
procedure.
70
Removing and installing components
