94 Removing and Installing Parts
www.dell.com | support.dell.com
NOTICE: To prevent static damage to components inside your computer, discharge static electricity
from your body before you touch any of your computer’s electronic components. You can do so by
touching an unpainted metal surface on the computer chassis.
1
Follow the procedures in "Before You Begin" on page 55.
2
Lay the computer on its side so that the system board is on the bottom of the inside of the
computer.
3
Remove the computer cover (see page 60).
4
Remove the drive panel (see page 82).

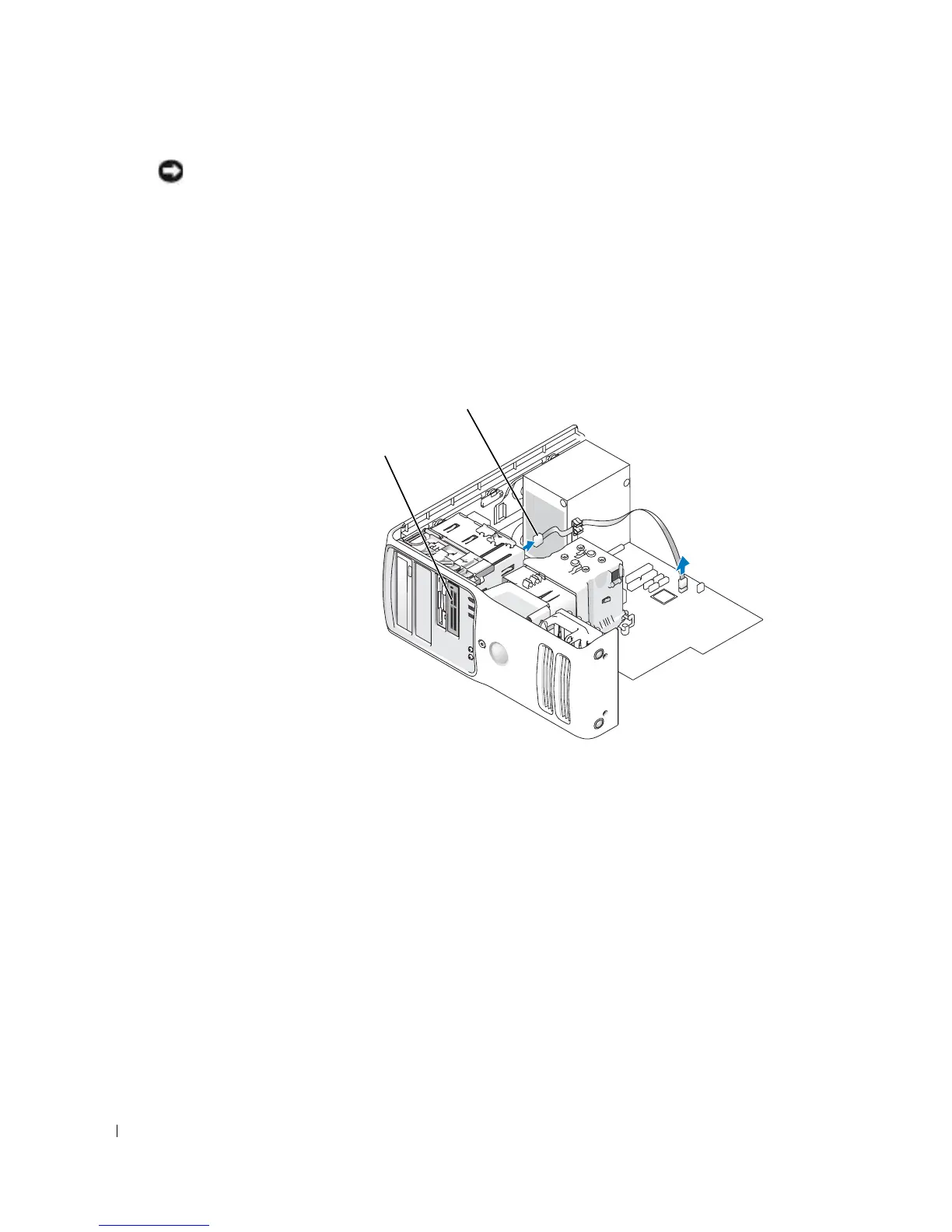

USB cable
*Media Card Reader
*
Not present on all computers.
