Dell Latitude 3410 User Manual

Steps
1. Disconnect the IO board connector cable from the system board.
2. Disconnect the Fan connector cable from the system board.
3. Remove the three (M2.5x5) screws from the right hinge and fold it up.
4. Peel back the adhesive tape from the LCD cable and disconnect the LCD cable from the system board.
5. Peel back the adhesive tape from the DC-in cable connector and disconnect the DC-in cable from the system board.
6. Remove the two (M2x4) screws from the metal shield covering the USB module.
7. Lift and take the metal shield away from the system.
8. Disconnect the connector cables from the system board in the following order (left - right): Speaker, Touchpad, USB,
Battery, Keyboard.

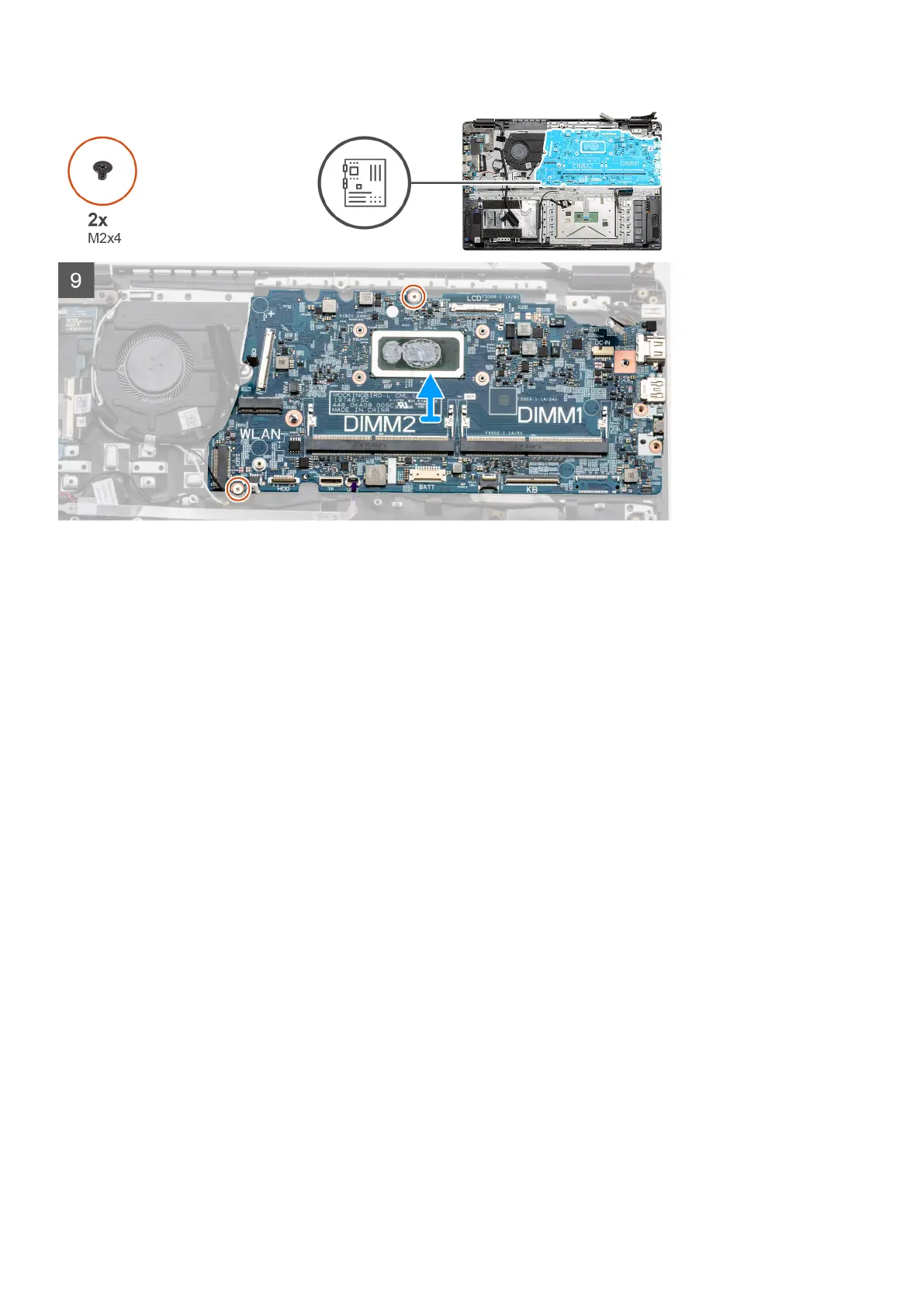

9. Remove the two (M2x4) screws from the system board and lift the board away from the computer.
Disassembly and reassembly
55

Dell Latitude 3410 Specifications

General

Graphics	Intel UHD Graphics
Display	14-inch HD (1366x768) or FHD (1920x1080)
Storage	Up to 1TB SSD
Operating System	Windows 10 Pro
Battery	3-Cell, 42 WHr, Integrated
Ports	2 x USB 3.1, 1 x USB 2.0, 1 x HDMI, 1 x RJ-45, 1 x SD card reader
Wireless	Wi-Fi 6 (802.11ax), Bluetooth 5.0
