Dell Multifunction Monochrome Laser Printer 3335dn User Manual

Repair information 4-85
Imaging component removals

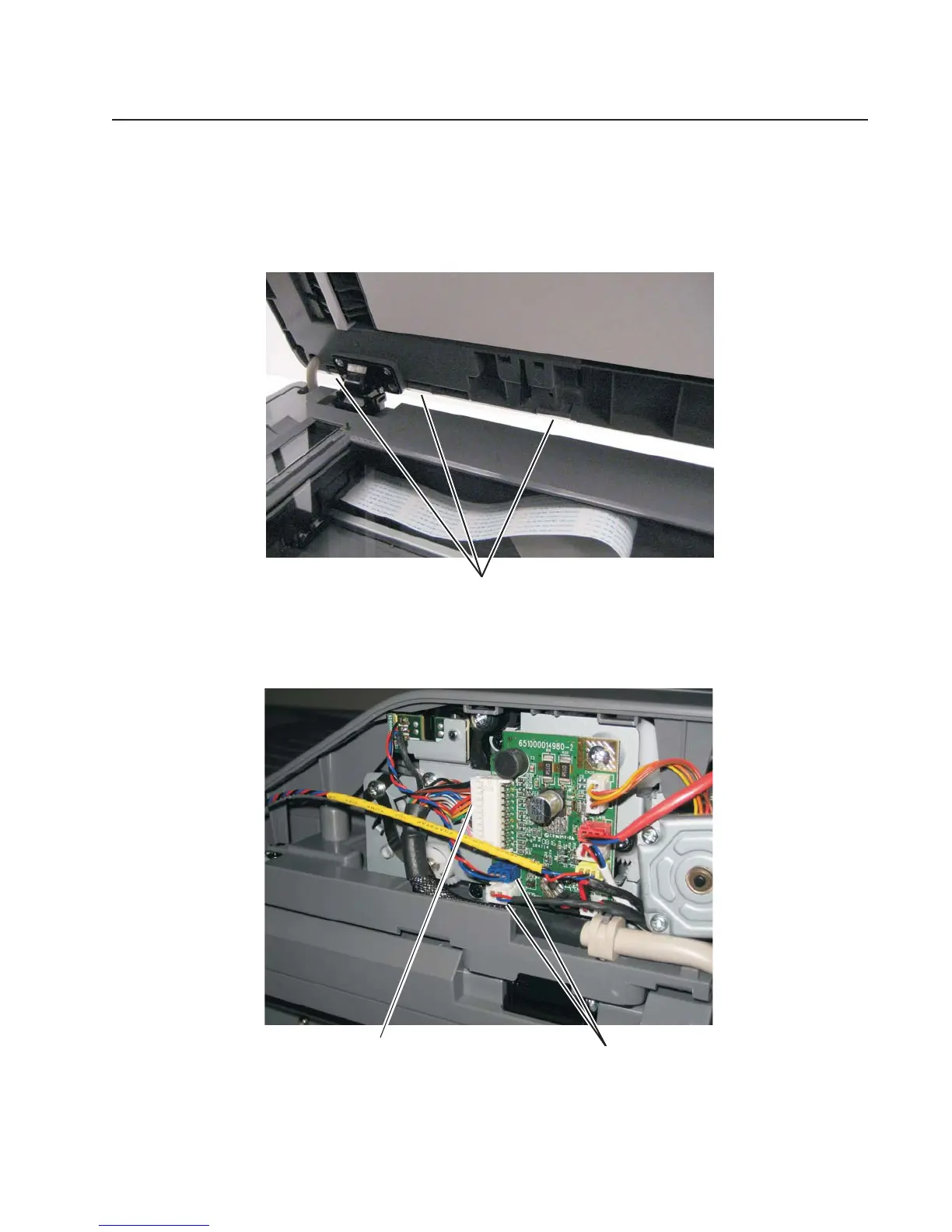

ADF unit removal
1. Remove the ADF rear cover by releasing the three tabs (A) which fasten the ADF rear cover to the ADF
unit.
2. Disconnect the ADF cable (B) and two sensor connections (C) on the relay card above the ADF relay
cable.
3. Lift the ADF unit up and depress the tabs located on the bottom of the ADF hinges to release the ADF from
the flatbed.
A
B
B
C
