4. Disassembly and Assembly Procedures
4.1 Disassembly SOP
Preparation before disassemble
1. Clean the room for disassemble
2. Identify the area for monitor
3. Check the position that the monitors be placed and the quantity of the monitor; prepare the area for
material flow; according to the actual condition plan the disassemble layout
4. Prepare the implement, equipment, material as bellow:
1) Working table
2) Philips-head screwdriver
3) Hex-head screwdriver
4) Glove
5) Cleaning cloth
6) ESD protection
I
tem
P
icture
Operation
Tool
Notes
1

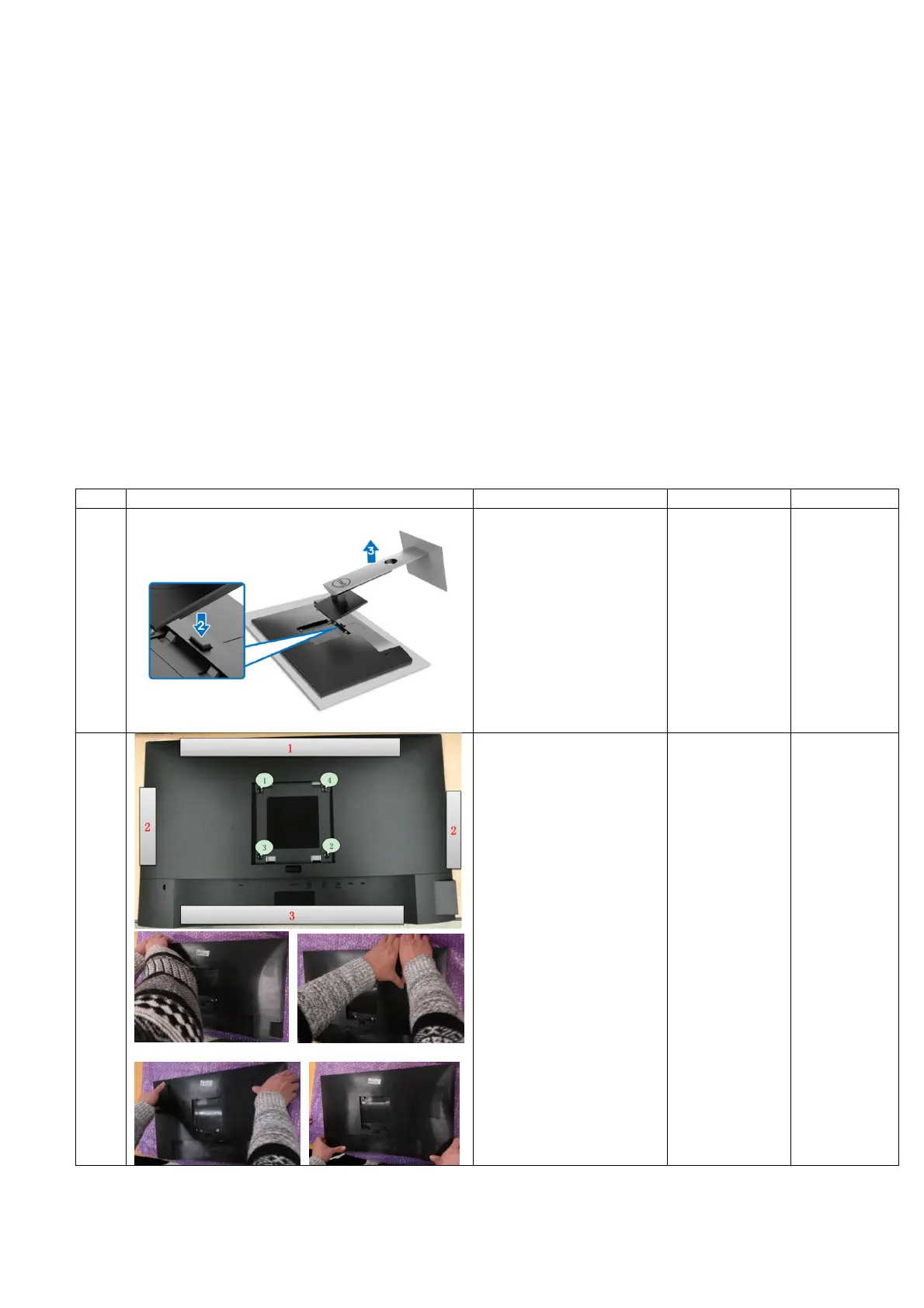

To remove the stand:
1. Place the monitor
on a soft cloth or
cushion
2. Press and hold the
stand release button
3. Lift the stand up and
away from the
monitor.
2
1. Unlock 4 Rear
Cover screws
2. Disassemble Rear
Cover and Middle
Frame according to
the sequence as the
picture showed
Philips-head
screwdriver
Torsion of RC
screw: 9±1Kgf
