Getting Started With Your System
9
Operating the PowerConnect MPS600 or MPS1000 After Installation
1
Plug one end of the switch DC power cord (16-pin) into the connector
labeled
MPS
on the back of the switch. Connect the other end of the
switch DC power cord to the DC OUT connector on the back of the
PowerConnect MPS600 or MPS1000.

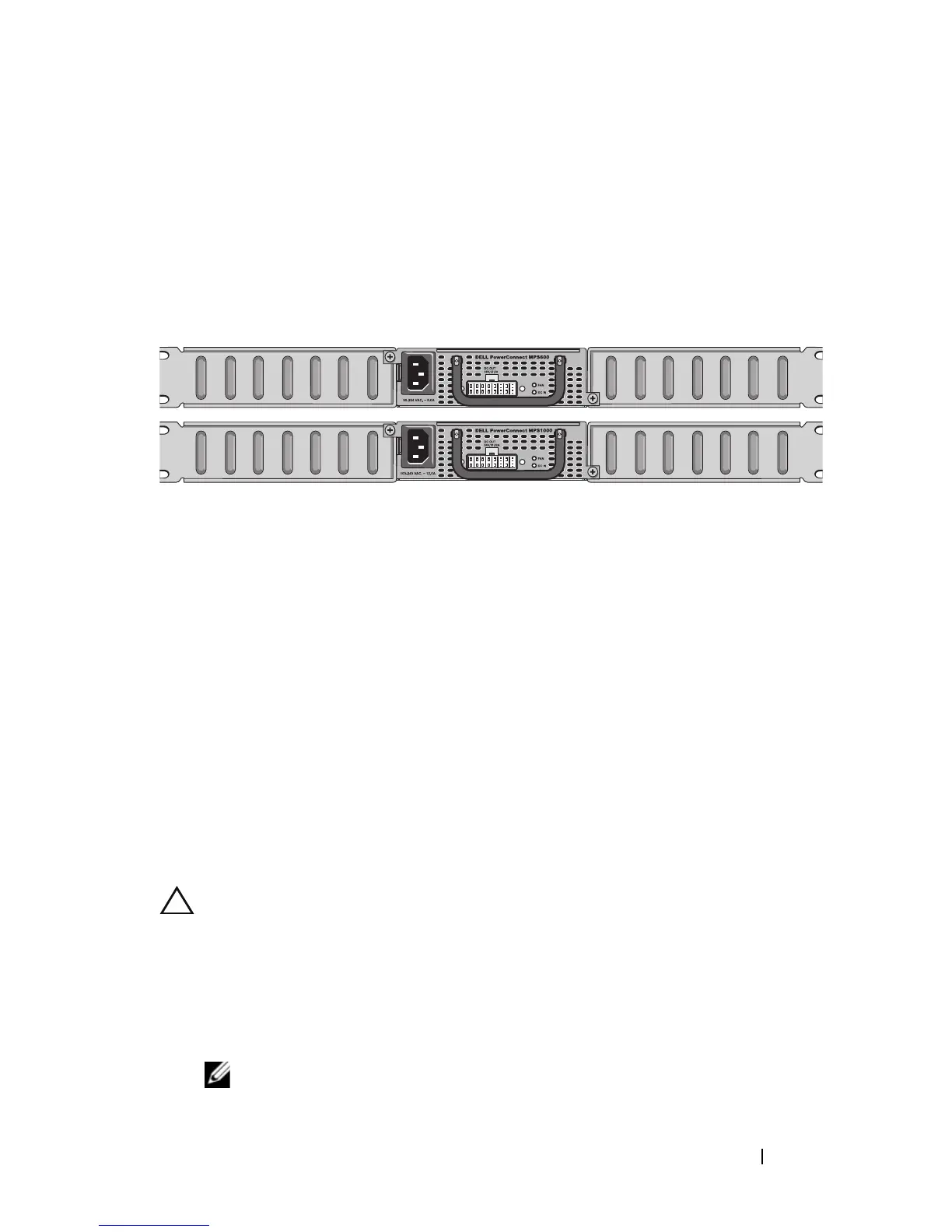

Figure 1-7. Back View–PowerConnect
MPS600/MPS1000
2
Attach the AC power cord to the MPS600 or MPS1000 and to
an AC power outlet.
The switch is now using both power supplies simultaneously. You can
monitor the status of the two power supplies through the front panel
LEDs on your PowerConnect switch and the MPS600 or MPS1000.
PowerConnect MPS 1U Shelf
Installing PowerConnect MPS 1U Shelf on a Flat Surface
You can install the PowerConnect MPS 1U Shelf on any appropriate level
surface that can safely support the weight of up to three switches, up to three
PowerConnect MPS600 or MPS1000, and their attached cables. There must
be adequate space around the PowerConnect MPS 1U Shelf for ventilation
and to access cable connectors.
CAUTION:
Allow at least 2 inches (5.1 cm) on each side for proper ventilation
and 5 inches (12.7 cm) at the back for power cord clearance.
1
Set the
PowerConnect
MPS 1U Shelf on the flat surface and check for
proper ventilation.
2
Attach rubber feet (optional) on each marked location at the bottom of
the chassis.
NOTE:
Although optional, rubber feet are recommended to keep the unit
from slipping.
