Dell PowerEdge R610 Getting Started With

6 Getting Started With Your System

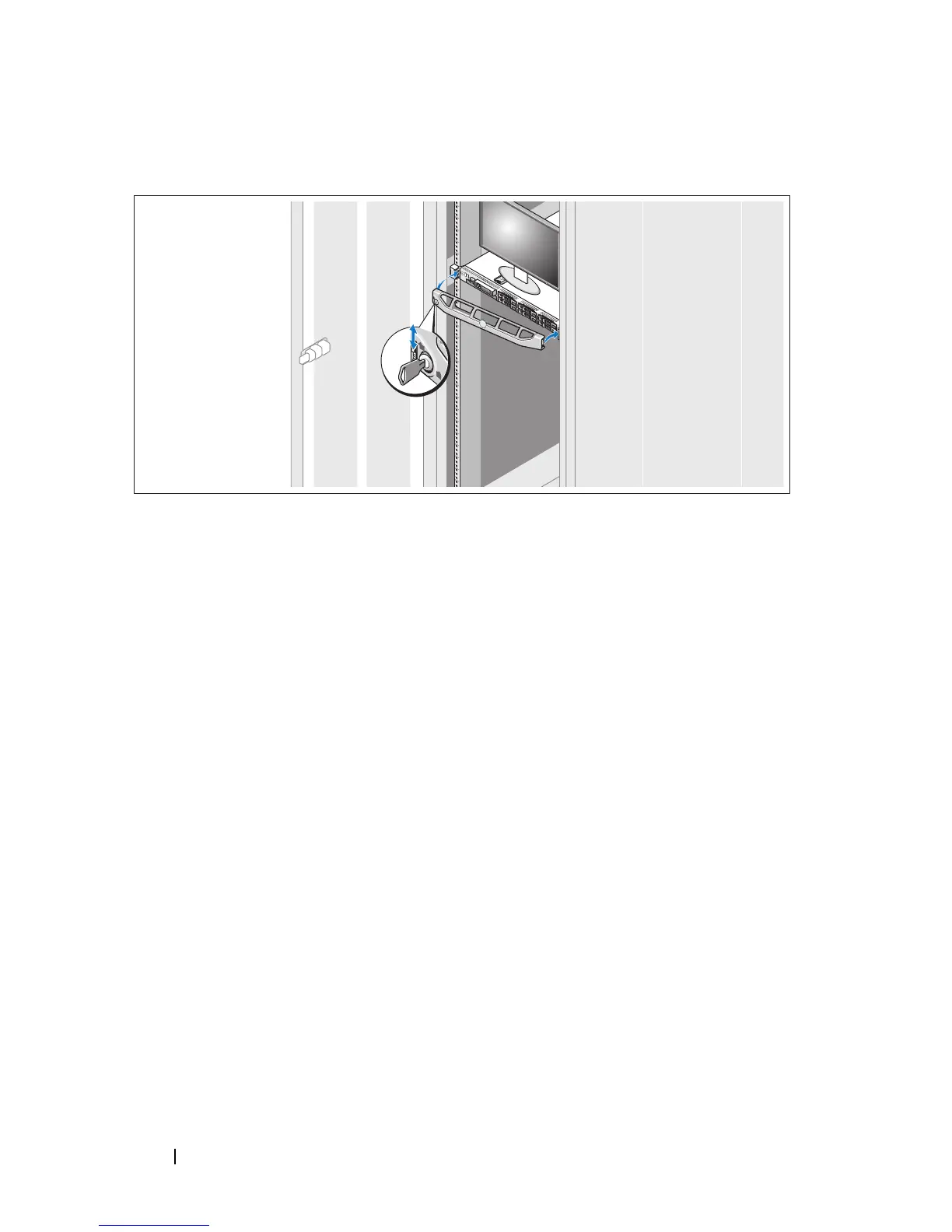

Installing the Optional Bezel
Install the bezel (optional).
Complete the 0perating System Setup
If you purchased a preinstalled operating system, see the operating system
documentation that ships with your system. To install an operating system for
the first time, see the installation and configuration documentation for your
operating system. Be sure the operating system is installed before installing
hardware or software not purchased with the system.
• Citrix
®
XenServer™ 5.0 with hotfix 1 or later
• Microsoft
®
Windows Server
®
2008 Hyper-V™
• Microsoft Windows Server 2008 Web, Standard, and Enterprise
(32-bit x86) Gold editions
• Microsoft Windows Server 2008 Web, Standard, Enterprise, and
Datacenter (x64) Gold editions
• Microsoft Window Small Business Server 2008, Standard and Premium
(x64) editions.
• Microsoft Windows Server 2003 Web, Standard, and Enterprise
(32-bit x86) editions with SP2
• Microsoft Windows Server 2003 Standard and Enterprise (x64) editions
with SP2

Dell PowerEdge R610 Specifications

General

Tcase	77.6 °C
Bus type	QPI
Stepping	B1
FSB Parity	No
Processor code	SLBV4
Processor cache	12 MB
Processor cores	4
Processor model	E5620
System bus rate	5.86 GT/s
Processor series	Intel Xeon 5600 Series
Processor socket	Socket B (LGA 1366)
Processor threads	8
Processor codename	Westmere EP
Motherboard chipset	Intel® 5520
Number of QPI links	2
Processor frequency	2.4 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor package size	42.5 X 45 mm
Processor front side bus	- MHz
Processor boost frequency	2.66 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Supported instruction sets	SSE4.2
Thermal Design Power (TDP)	80 W
Compatible processor series	Intel® Xeon®
Number of processors installed	1
CPU multiplier (bus/core ratio)	18
Physical Address Extension (PAE)	40 bit
Memory types supported by processor	DDR3 800/1066
Memory channels supported by processor	Triple
Memory clock speeds supported by processor	800, 1066 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Maximum internal memory supported by processor	288 GB
HDD size	2.5 \
HDD speed	15000 RPM
HDD interface	Serial Attached SCSI (SAS)
Optical drive type	DVD-RW
Total storage capacity	146 GB
Maximum storage capacity	12 TB
Number of HDDs supported	6
Graphics card	G200
Graphics card family	Matrox
Memory slots	12
Internal memory	8 GB
Memory clock speed	1333 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	192 GB
Memory layout (slots x size)	4 x 2 GB
Maximum graphics card memory	8 MB
Networking features	Gigabit Ethernet
Ports quantity	11
Number of slots	3
PS/2 ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Power supply	717 W
Operating system installed	-
Compatible operating systems	SQL Server 2008 R2 Windows Small Business Server 2008 Windows Essential Business Server 2008 Windows Server 2008 SP2, x86/x64 (x64 Hyper-V) Windows Server 2008 R2, x64 (Hyper-V v2) Windows HPC Server 2008 SUSE Linux Enterprise Server Red Hat Enterprise Linux Sun Solaris
Sustainability certificates	ENERGY STAR
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Chassis type	Rack (2U)
Processor ARK ID	47925
Intel® Turbo Boost Technology	1.0

Weight and Dimensions

Depth	772 mm
Width	482 mm
Height	42.6 mm
Weight	17690 g
