Dell PowerEdge R720xd User Manual

CAUTION: When a replacement hot-swappable hard drive is installed and the system is powered on, the hard drive
automatically begins to rebuild. Make absolutely sure that the replacement hard drive is blank or contains data that
you wish to have over-written. Any data on the replacement hard drive is immediately lost after the hard drive is
installed.
1. If a hard-drive blank is installed in the hard-drive slot, remove it.
2. Install a hard drive in the hard-drive carrier.
3. Press the release button on the front of the hard-drive carrier and open the hard-drive carrier handle.
4. Insert the hard-drive carrier into the hard-drive slot until the carrier connects with the backplane.
5. Close the hard-drive carrier handle to lock the hard drive in place.
Removing A Hard Drive From A Hard-Drive Carrier
1. Remove the screws from the slide rails on the hard-drive carrier.
2. Lift the hard drive out of the hard-drive carrier.

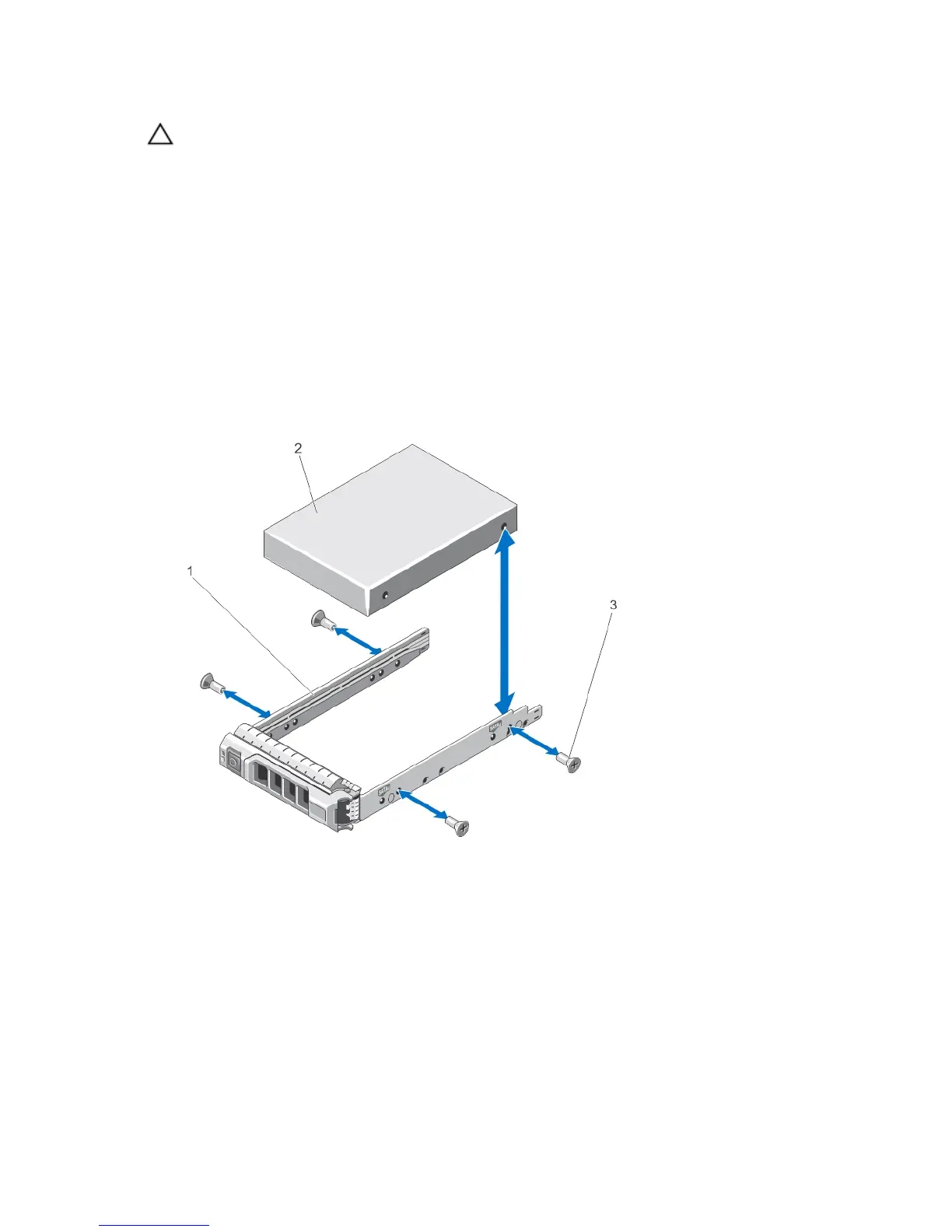

Figure 23. Removing and Installing a Hard Drive Into a Hard-Drive Carrier
1. hard-drive carrier
2. hard drive
3. screws (4)
55

Dell PowerEdge R720xd Specifications

General

Tcase	70 °C
Bus type	QPI
Stepping	M1
FSB Parity	No
Scalability	2S
Processor cache	10 MB
Processor cores	4
Processor model	E5-2609
System bus rate	6.4 GT/s
Processor series	Intel Xeon E5-2600
Processor socket	LGA 2011 (Socket R)
Processor codename	Sandy Bridge EP
Motherboard chipset	Intel C600
Number of QPI links	2
Processor frequency	2.4 GHz
Processor cache type	Smart Cache
Processor manufacturer	Intel
Processor package size	52.5 x 45.0 mm
Processor front side bus	- MHz
Processor boost frequency	2.50 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Graphics & IMC lithography	32 nm
PCI Express configurations	x4, x8, x16
Supported instruction sets	AVX
Thermal Design Power (TDP)	80 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	24
Physical Address Extension (PAE)	46 bit
Maximum number of PCI Express lanes	40
Memory types supported by processor	DDR3-SDRAM
Memory channels supported by processor	Quad
Memory clock speeds supported by processor	800, 1066 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
Maximum internal memory supported by processor	750 GB
HDD size	3.5 \
Optical drive type	DVD-RW
Total storage capacity	- GB
Maximum storage capacity	32 TB
Number of HDDs installed	-
Number of HDDs supported	14
Memory slots	24x DIMM
Internal memory	8 GB
Memory clock speed	1333 MHz
Maximum internal memory	768 GB
Cabling technology	10/100/1000Base-T(X)
USB 2.0 ports quantity	3
PCI Express slots version	3.0
Power supply	1100 W
Compatible operating systems	Microsoft Windows Server 2012 \\r Microsoft Windows Server 2012 Essentials\\r Microsoft Windows Server 2008 R2 \\r Novell SUSE Linux Enterprise Server\\r Red Hat Enterprise Linux
Sustainability certificates	ENERGY STAR
Chassis type	Rack (2U)
Processor ARK ID	64588
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00

Weight and Dimensions

Width	- mm
