Dell PowerVault MD3820i User Manual

Installation and Configuration
WARNING: Before performing the following procedure, review the safety instructions that came
with the system.
Unpacking A Rack System

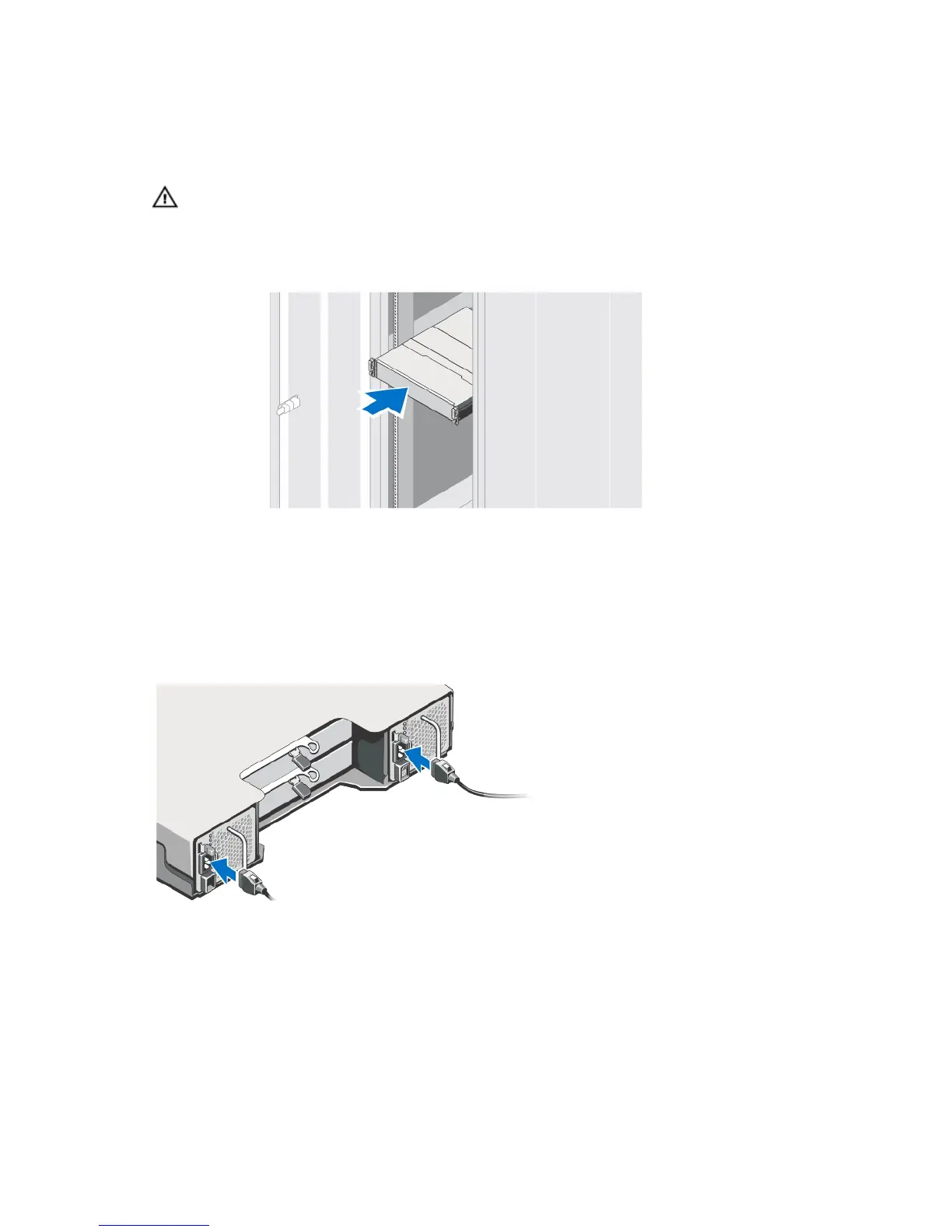

Figure 1. Installing the System in a Rack
Unpack your system and identify each item.
Assemble the rails and install the system in the rack following the safety instructions and the rack
installation instructions provided with your system.
Connecting The Power Cable(s)
Figure 2. Connecting the Power Cable(s)
Connect the system’s power cable(s) to the system.
3

Dell PowerVault MD3820i Specifications

General

HDD speed	10000 RPM
RAID levels	0, 1, 5, 6, 10
Storage drive size	2.5 \
Storage drive capacity	300 GB
Storage drive interface	Serial Attached SCSI (SAS)
Storage drives installed	Yes
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Total installed storage capacity	0.3 TB
Maximum supported storage capacity	38.4 TB
Number of storage drives installed	1
Number of storage drives supported	24
Chassis type	Rack (2U)
Device class	-
Product color	Black
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power supply unit (PSU) capacity	600 W
Operating altitude	-16 - 3048 m
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	549 mm
Width	446.3 mm
Height	86.8 mm
Weight	24220 g
