Quick Reference Guide 11

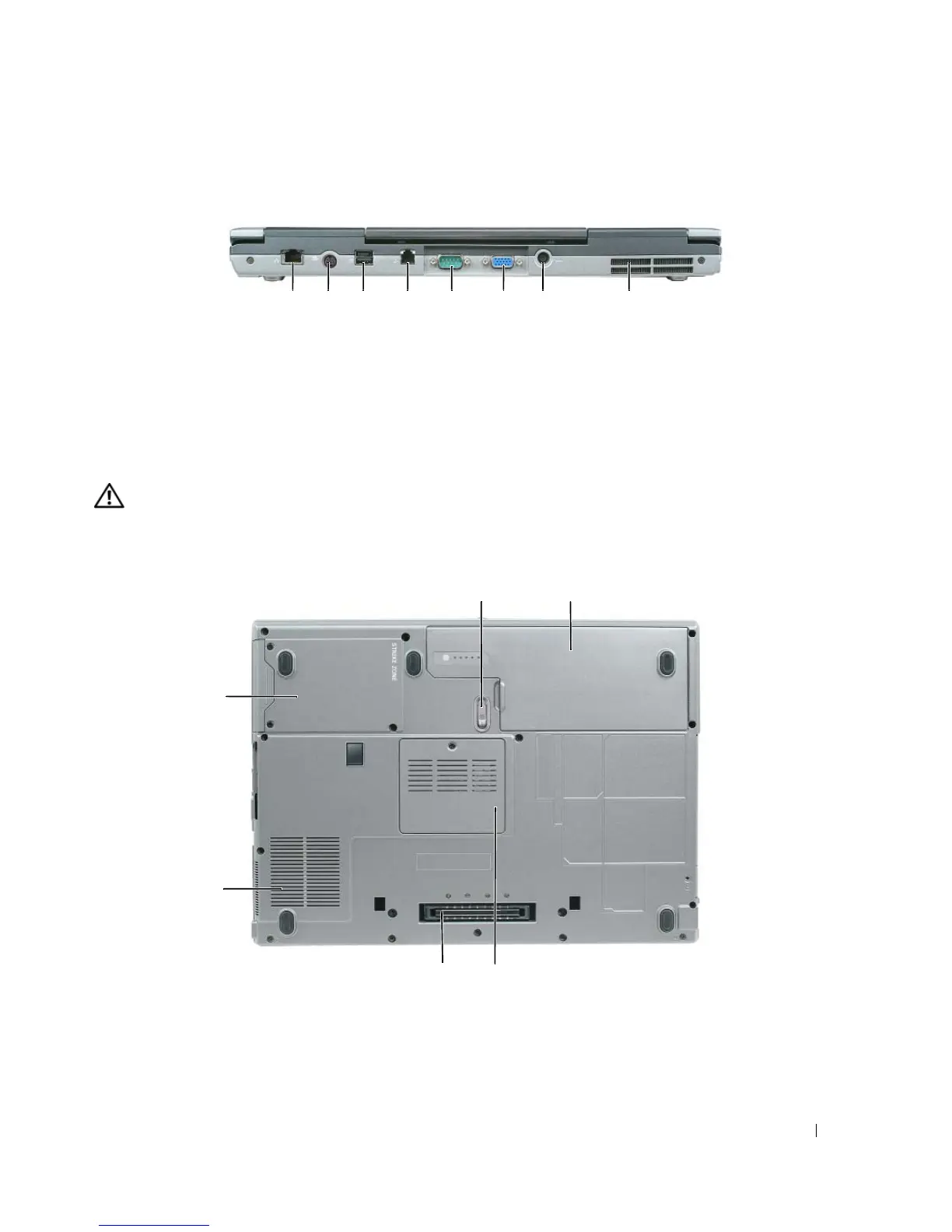

Back View
Bottom View
CAUTION: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your
computer in a low-airflow environment, such as a closed briefcase, while it is running. Restricting the airflow
can damage the computer or cause a fire.
1
network connector (RJ-45)
2
S-video TV-out connector
3
powered USB connector
4
modem connector (RJ-11)
5
serial connector
6
video connector
7
AC adapter connector
8
air vents
1
battery-bay latch release
2
battery
3
memory module cover
4
docking-device connector
5
fan air vents
6
hard drive
1 2 63 4 75 8
5
4
1
3
2
6
