36 | Setting Up the Monitor

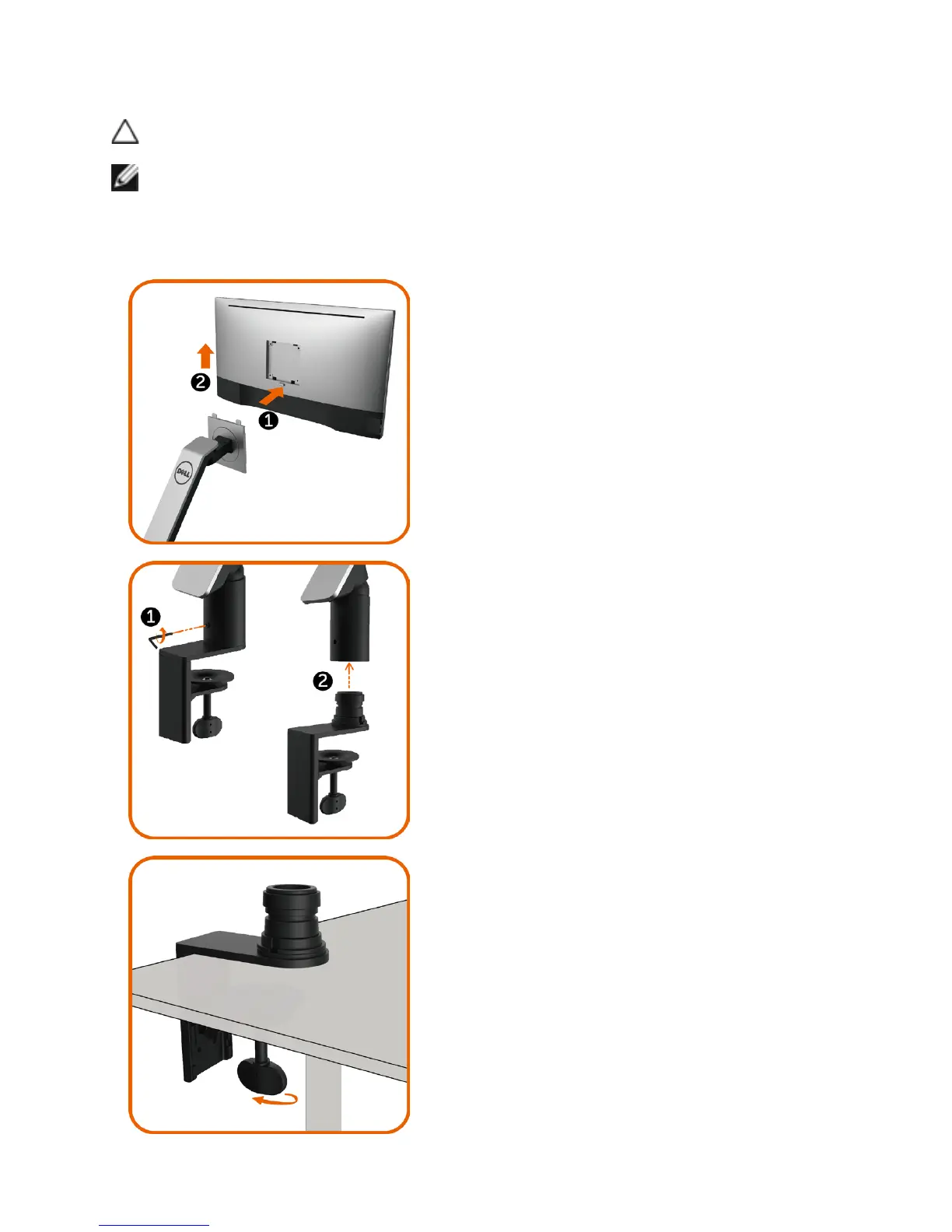

Removing the Monitor Arm
CAUTION: Place monitor of a flat, clean, and soft surface to avoid scratching
the display panel.
NOTE: The arm installing instruction is applicable to the arm shipped with the
monitor. For other mounting solutions (optional), please refer to their respective
set up instructions.
To remove the arm:
1. Press and hold the arm-release button.
2. Lift the monitor up and away from the
arm.
• Turn the screw anticlockwise with an Allen
key.
• Remove the arm riser from the arm base
by pulling it in the direction of the arrow
as shown in the figure.
• Turn the fixed screw at the bottom of the
arm base to separate it.
