- 17 -

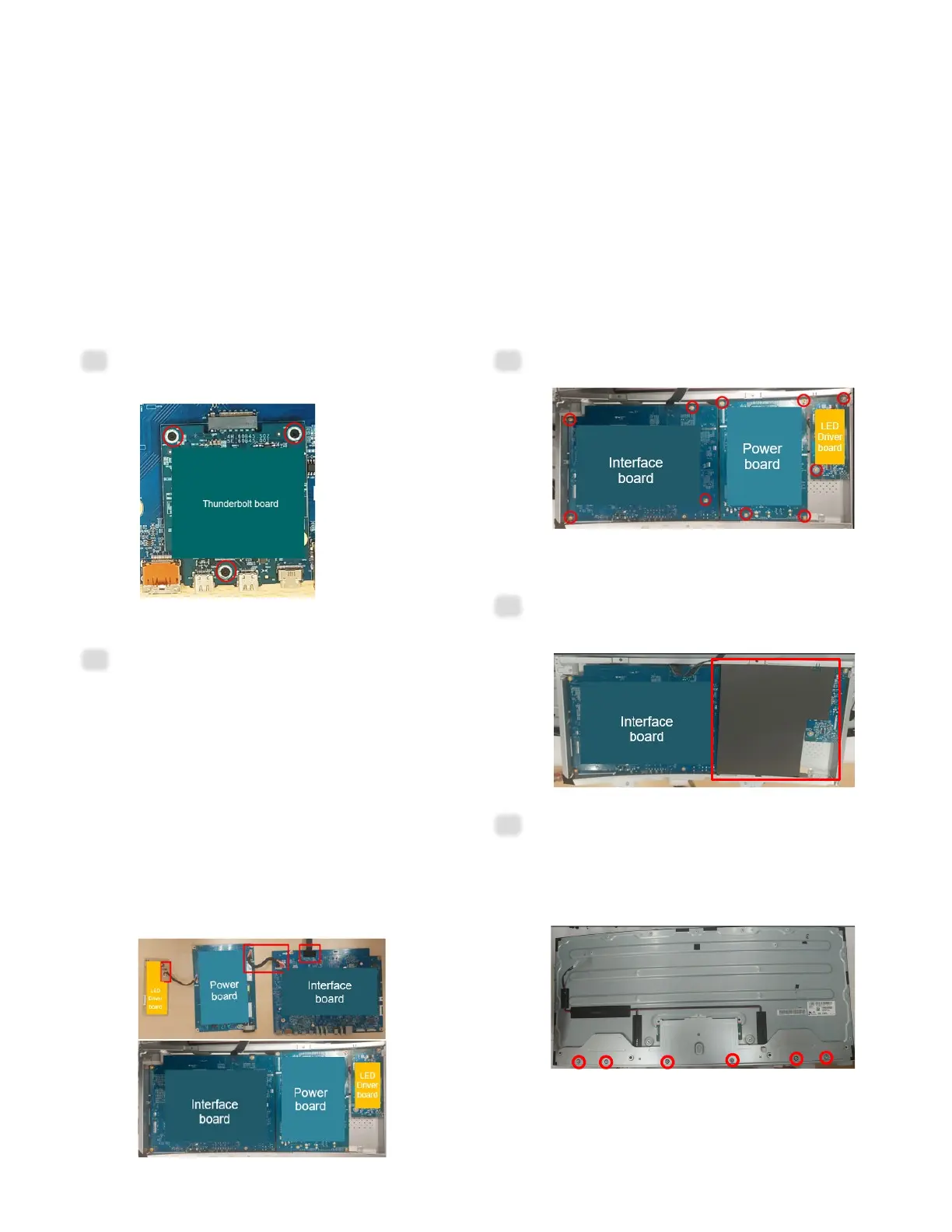

5.2 Assembly SOP

Preparation before assemble

1. Clean the room for work

2. Identify the area for material

3. Prepare the implement, equipment, material as bellow:

1) Working table

2) Philips-head screwdriver

3) Gloves

4) Cleaning cloth

5) ESD protection

6) Curve cushion

Assemble “Thunderbolt board” to

“Interface board” and fix it by 3 screws

(Screw Torque: 2.0-3.0 Kgf)

Insert “Power board to Interface board

wire” into “Power board”. Assemble

“Power board” to “Main Shielding”

Insert “Power board wire” into “LED

Driver board”. Assemble “LED Driver

board” into “Main Shielding”

Insert “FFC EDP” into “Interface board”

and paste an acetate tape to fix it

Insert “Power board to Interface board

wire” into “Interface board”. Assemble

“Interface board” to “Main Shielding”

Lock 10 PCBA screws

(Screw Torque: 8.5±1Kgf)

Assemble “MYLAR Power” with “Main

Shielding” to cover “Power board”

Place U3425WE panel on the curve

cushion in original packaging

Assemble 6 pieces of “Boss Panel” to

“Panel”
