Dell XPS 13 9305 User Manual

Removing and installing components
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.
Recommended tools
The procedures in this document may require the following tools:
● Phillips screwdriver #0
● Torx #5 (T5) screwdriver
● Plastic scribe

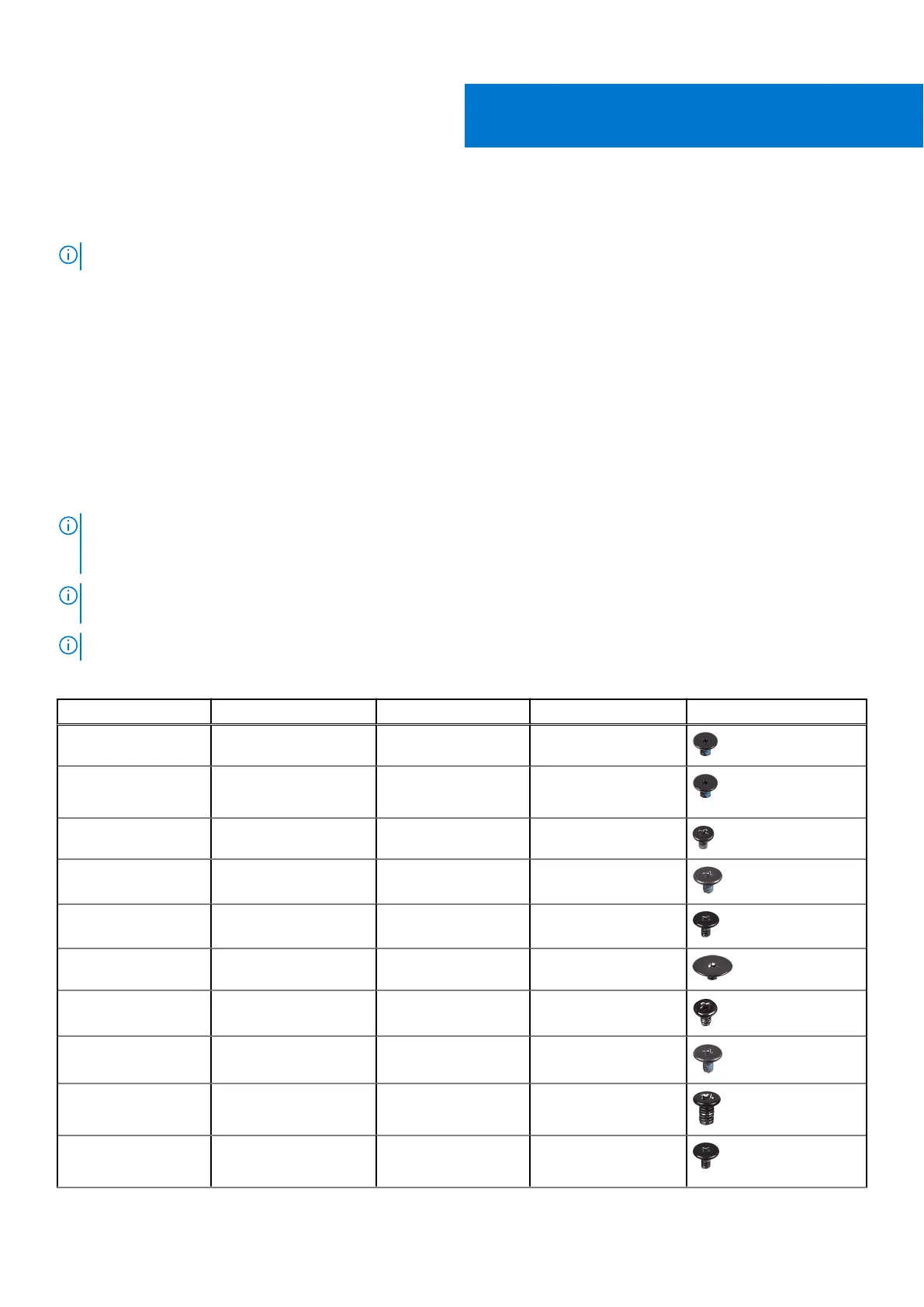

Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and
then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when
replacing a component.
NOTE: Screw color may vary with the configuration ordered.
Table 1. Screw list
Component Secured to Screw type Quantity Screw image
Keyboard Palm-rest assembly M1.6x1.5 29
Fingerprint-reader
board
Palm-rest assembly M1.6x1.5 1
Power button Palm-rest assembly M1.4x1.7 2
System board Palm-rest assembly M1.6x2.5 10
Fans System board M1.6x3L 2
Speakers Palm-rest assembly M2x2 4
Heat sink System board M2x3 4
Headset port Palm-rest assembly M1.6x3 1
Display assembly Palm-rest assembly M2.5x4 4
Wireless antenna and
camera cable bracket
System board M1.6x3L 1
2
10 Removing and installing components

Dell XPS 13 9305 Specifications

General

Graphics	Intel Iris Xe Graphics
Wireless	Killer Wi-Fi 6 AX1650 (2 x 2) and Bluetooth 5.1
Camera	720p HD webcam
Processor	11th Generation Intel Core i5-1135G7 or Intel Core i7-1165G7
Display	13.3-inch FHD (1920 x 1080)
RAM	16GB LPDDR4x
Storage	256GB PCIe NVMe SSD or 512GB PCIe NVMe X4 SSD
Operating System	Windows 10 Home or Pro
Battery	52WHr Battery
Weight	2.64 lbs (1.2 kg)
Ports	2 x Thunderbolt 4 (USB-C), 1 x USB 3.2 Gen 1 Type-C, 1 x 3.5mm headphone/microphone combo jack, MicroSD card reader
Dimensions	Height: 14.8 mm (0.58 inches) x Width: 302 mm (11.89 inches) x Depth: 199 mm (7.83 inches)
Audio	Stereo speakers with Waves MaxxAudio Pro
