Dell XPS 13 9305 User Manual

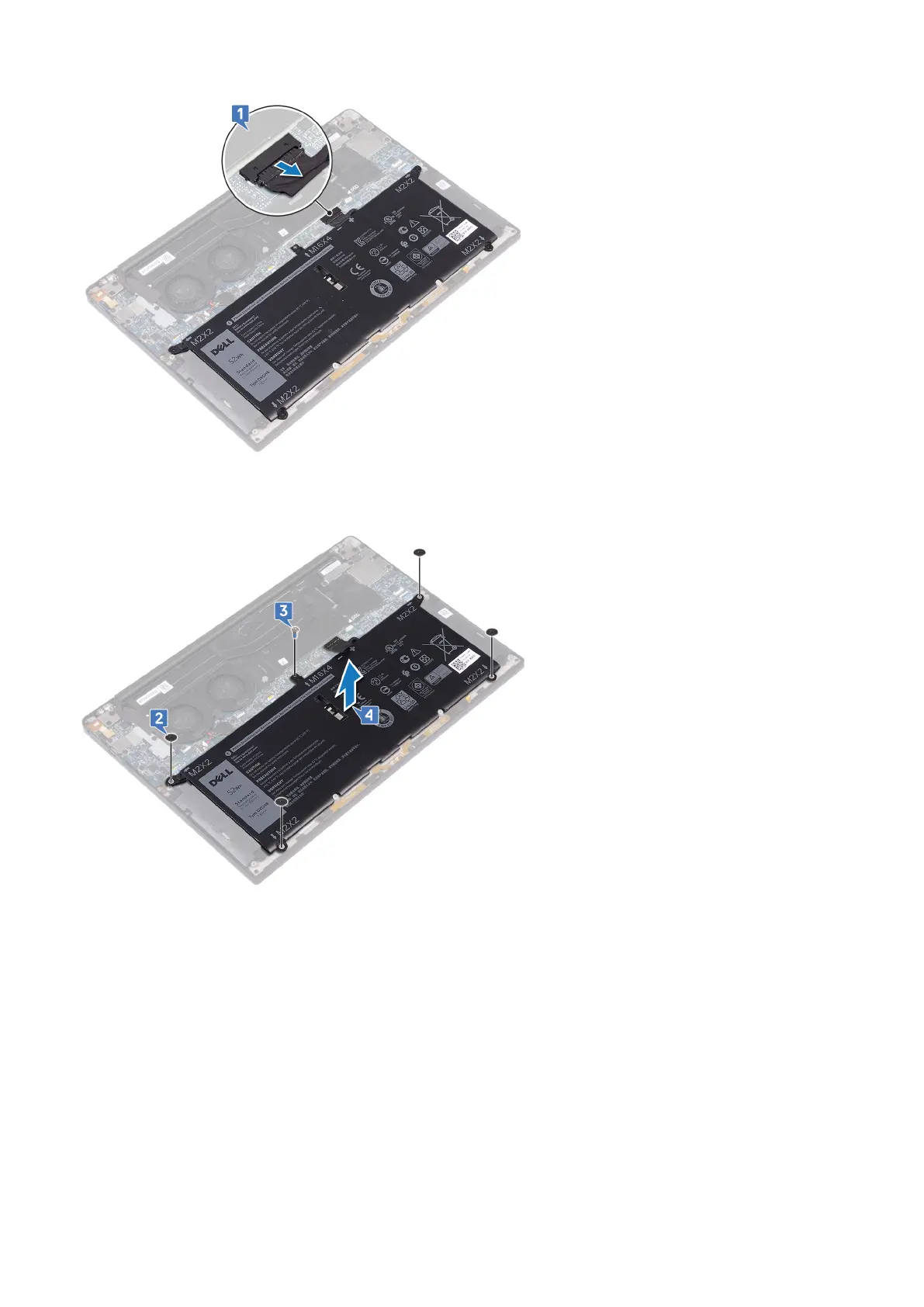

2. Remove the four screws (M2x2) that secure the battery to the palm-rest assembly.
3. Remove the screw (M1.6x4) that secures the battery to the palm-rest assembly.
4. Lift the battery off the palm-rest assembly.
5. Turn the computer over, open the display, and press the power button for about 5 seconds to ground the computer.
18
Removing the battery

Dell XPS 13 9305 Specifications

General

Graphics	Intel Iris Xe Graphics
Wireless	Killer Wi-Fi 6 AX1650 (2 x 2) and Bluetooth 5.1
Camera	720p HD webcam
Processor	11th Generation Intel Core i5-1135G7 or Intel Core i7-1165G7
Display	13.3-inch FHD (1920 x 1080)
RAM	16GB LPDDR4x
Storage	256GB PCIe NVMe SSD or 512GB PCIe NVMe X4 SSD
Operating System	Windows 10 Home or Pro
Battery	52WHr Battery
Weight	2.64 lbs (1.2 kg)
Ports	2 x Thunderbolt 4 (USB-C), 1 x USB 3.2 Gen 1 Type-C, 1 x 3.5mm headphone/microphone combo jack, MicroSD card reader
Dimensions	Height: 14.8 mm (0.58 inches) x Width: 302 mm (11.89 inches) x Depth: 199 mm (7.83 inches)
Audio	Stereo speakers with Waves MaxxAudio Pro
