Dell XPS 13 9310 User Manual

Installing the system board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
NOTE: Your computer’s Service Tag is stored in the system board. You must enter the Service Tag in the BIOS setup
program after you replace the system board.
NOTE: Replacing the system board removes any changes you have made to the BIOS using the BIOS setup program. You
must make the appropriate changes again after you replace the system board.
About this task
The following image indicates the connectors on your system board.

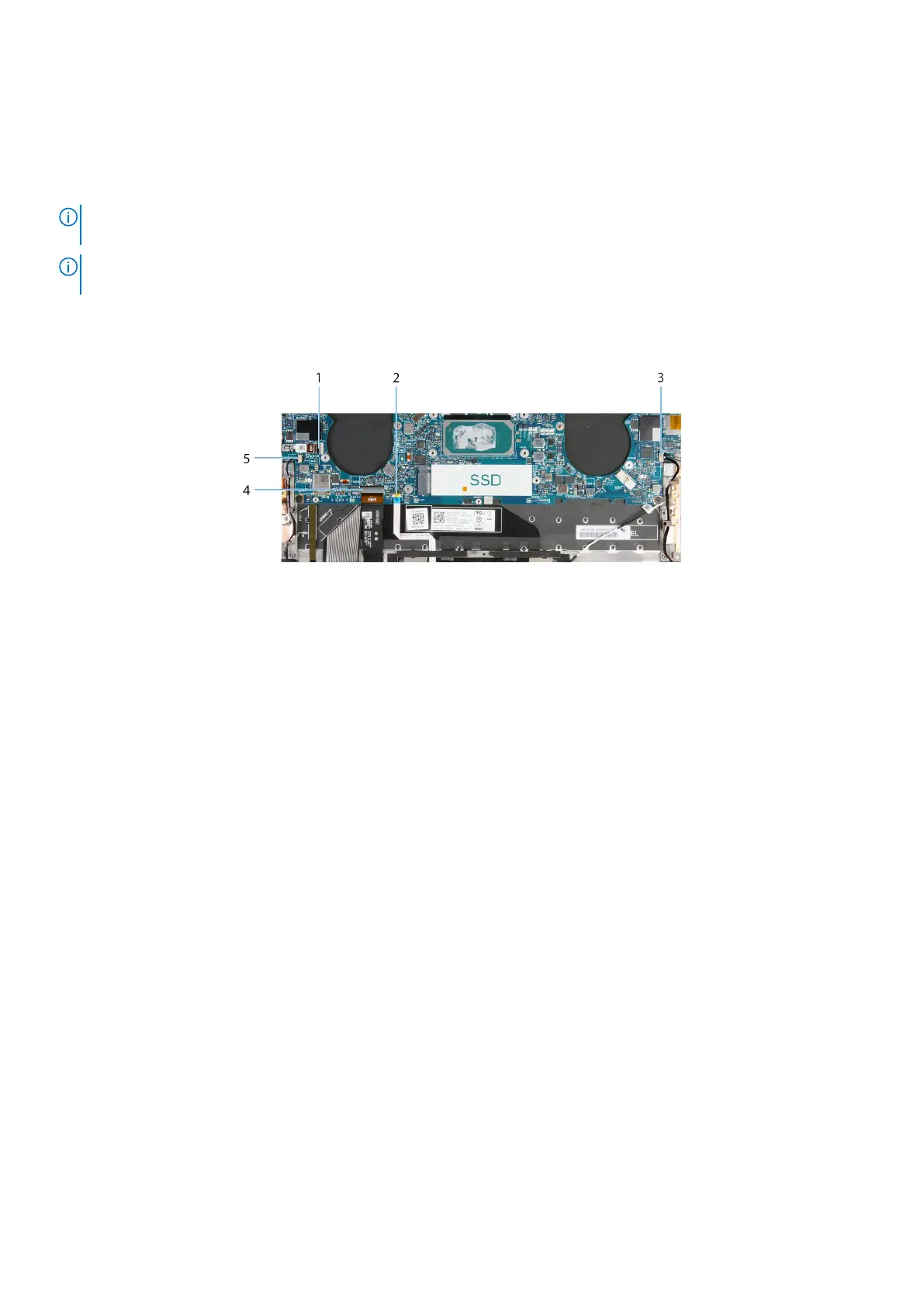

Figure 2. System-board connectors
1.
Power-button and fingerprint reader cable 2. Touchpad cable
3. Right speaker cable 4. Keyboard cable
5. Left speaker cable
The following images indicate the location of the system board and provide a visual representation of the installation procedure.
Removing and installing components
37

Dell XPS 13 9310 Specifications

General

Graphics	Intel Iris Xe Graphics
Wireless	Killer Wi-Fi 6 AX1650 (2x2) and Bluetooth 5.1
Processor	11th Generation Intel Core i7-1165G7
Display	13.4-inch FHD+ (1920 x 1200)
RAM	16 GB, 4267 MHz, LPDDR4x, Dual Channel
Storage	256GB, 512GB, 1TB, or 2TB PCIe NVMe SSD
Operating System	Windows 10 Home
Battery	4-Cell, 52 WHr, Integrated
Weight	2.8 lbs (1.27 kg)
Ports	2 x Thunderbolt 4 (USB-C), 1 x USB-C 3.2, microSD card reader, 3.5mm headphone jack
Dimensions	11.64 x 7.82 x 0.58 inches (295.7 x 198.7 x 14.8 mm)
Camera	720p HD camera
Audio	Stereo speakers with Waves MaxxAudio Pro
Color	Platinum Silver with Black Carbon Fiber Palmrest
