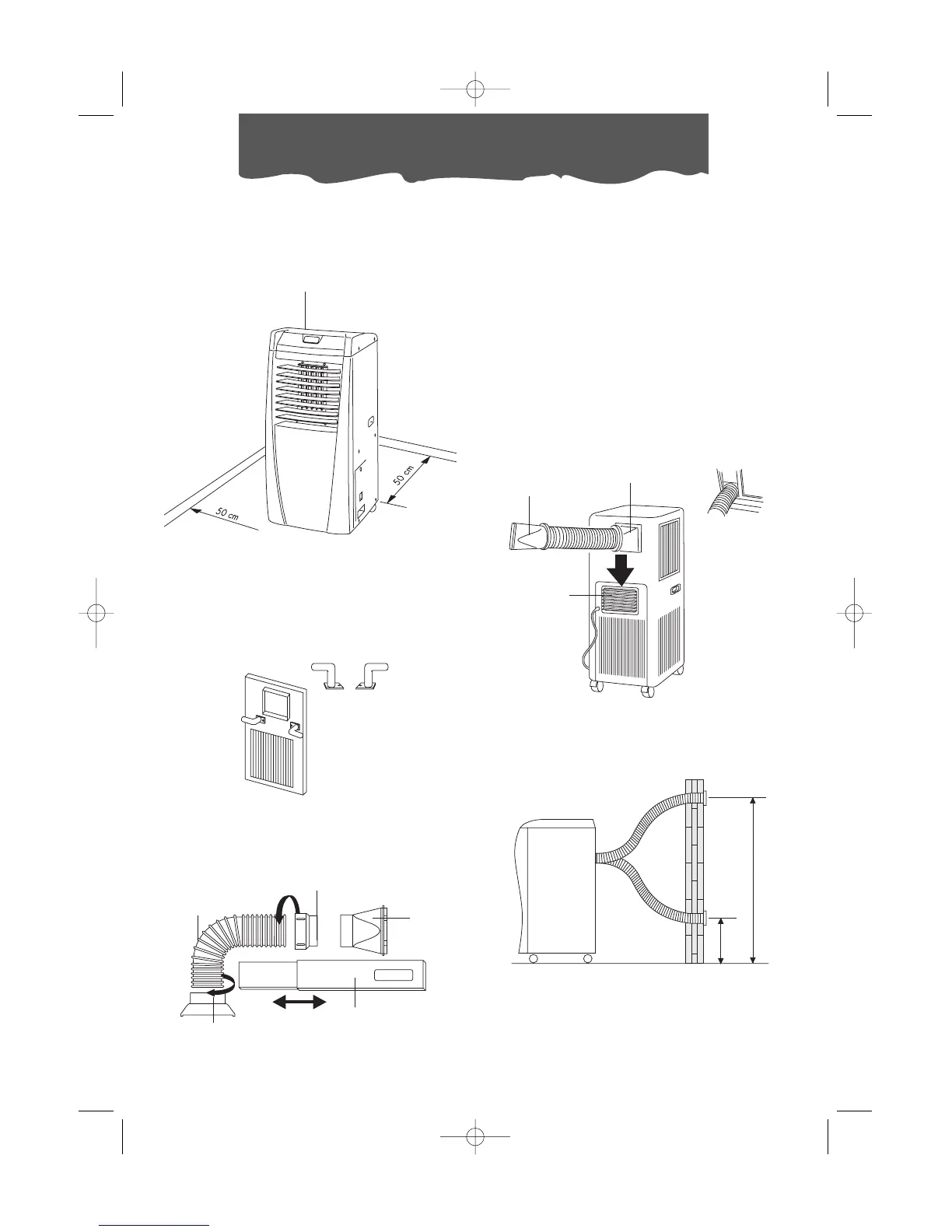

CHOOSING THE INSTALLATION SITE
Position the air conditioning unit on a flat sur-
face where the air outlet grills cannot be
obstructed. Position the appliance at least 50
cm away from walls or obstacles.
CABLE WINDER
Before installing the air exhaust hose, mount
the two cable winder brackets using the
screws supplied as shown in the figure.
AIR EXHAUST ACCESSORIES
INSTALLING THE AIR EXHAUST HOSE
1. Open out the end of the hose and screw the
two adapters on anticlockwise (see figure).
2. Fit the square adapter on the air exhaust hose
to the air exhaust outlet on the appliance.
3. Connect the other end (flange) to the neare-
st window.
Important: the air exhaust hose must be
between 500 mm and 2000 mm long. You are
recommended to keep the air exhaust hose
as short as possible.
During installation, keep the hose as horizontal
as possible without distorting it. Do not con-
nect the terminal to other exhaust ducts (flue
or chimney) as this could lead to malfunction.
Correct wall installation: the hole must be
at a height of between 40 and 130 cm
from the floor.
22
Installation
To Next Page
