6

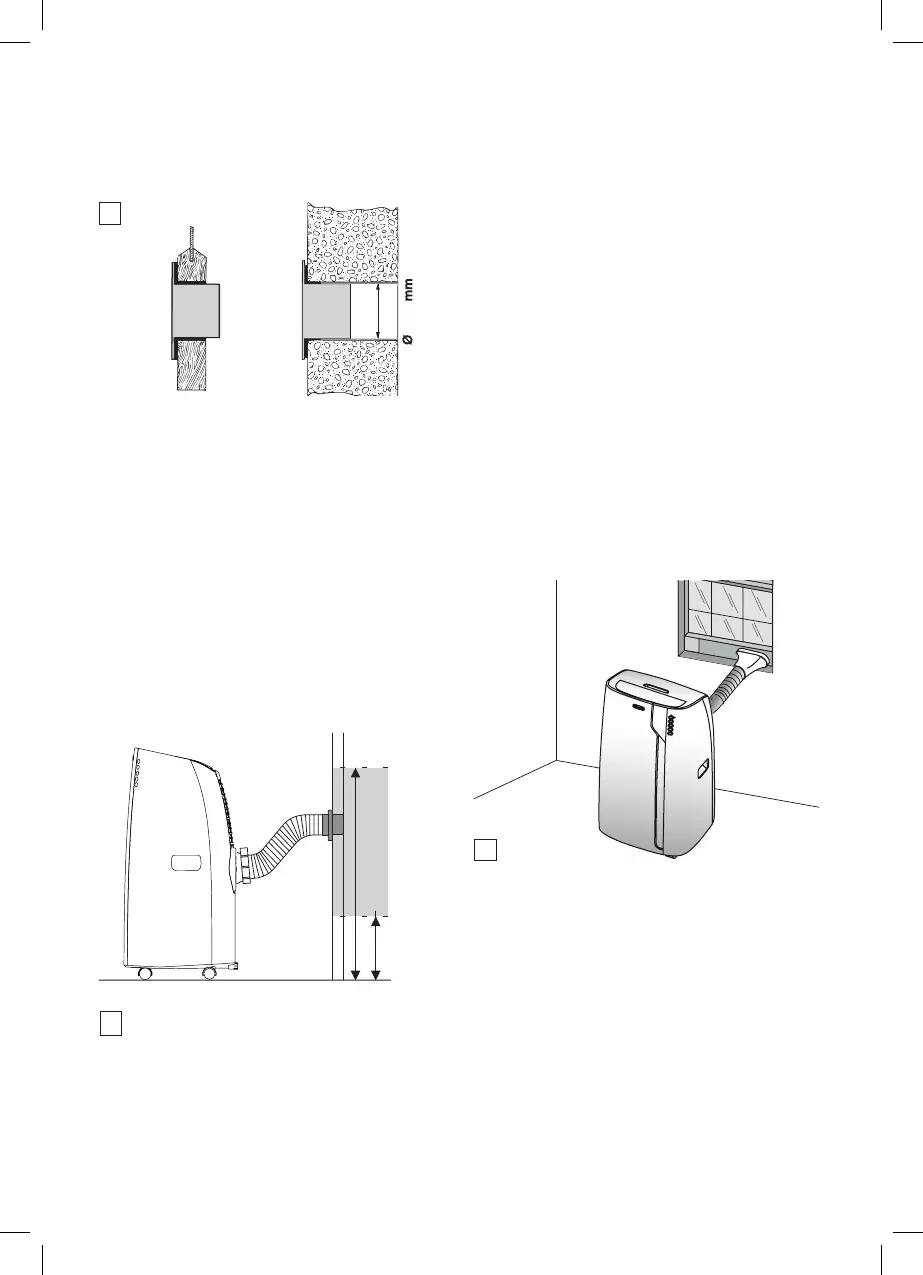

• Drill a hole ø 5,25 inches (134 mm) in an outside wall or
through a window pane. Respect the dimensions and
height of the hole given in gure 3 and 4.
134
3
• Fit the wall ange B1 into the hole.
• Fit the hose with the wall mounting accessory B4 it into the
wall ange B1 as shown in g. 4.
• Fit the end of the hose B2 to the wall ange B1 as shown in
g. 4.
• When the hose B2 is not connected, the drilled hole can be
closed with the ange cap B1.
4
min 14 in
• When installing the air conditioner, you should leave a door
slightly open 1/2“ (1 cm) to guarantee correct ventilation
and room pressure.
• Keep the air hoses as short and free of curves as possible to
avoid constrictions.
NOTE:
• As special tools are required for installation, we sug-
gest you have the appliance installed by a qualied
professional.
AIR CONDITIONING WITHOUT INSTALLATION
You can also set up in a double-hung window:
• Place the window bracket in the window sill, extend the
bracket fully within the window frame, x the bracket by
using the pin then lower the window onto the bracket.
(Should the window bracket be too large for the window.
The plastic can be cut with a saw by a qualied profes-
sional.)
• Screw the hose adaptor B3 to the hose’s end B2.
• Fit the air exhaust hose B2 in the housing located on the
rear side of the appliance. (g. 1).
• Screw the window outlet B7 to the other end of the ex-
haust hose.
• Insert the window outlet B7 of the exhaust hose into the
slot of the window bracket (g. 5).
5
Other set-up methods:
• Thanks to the locking pins, it’s possible to use the window
bracket also for sliding windows. Position the hole of the
bracket so to allow a correct installation of the exhaust hose
(see gure 6).
in the wall:
you are
recommended to insulate
the section of wall using
suitable insulation
in the wooden
kickboard of a French
window or panel
