3
FITTING THE WHEELS
Remove the feet and the wheels from the polystyrene packing. Turn the radiator upside-down
and rest on the polystyrene.
Fit the wheels to the spindles on the feet and push firmly until they click into position. Pull
each wheel to check that it is correctly inserted.

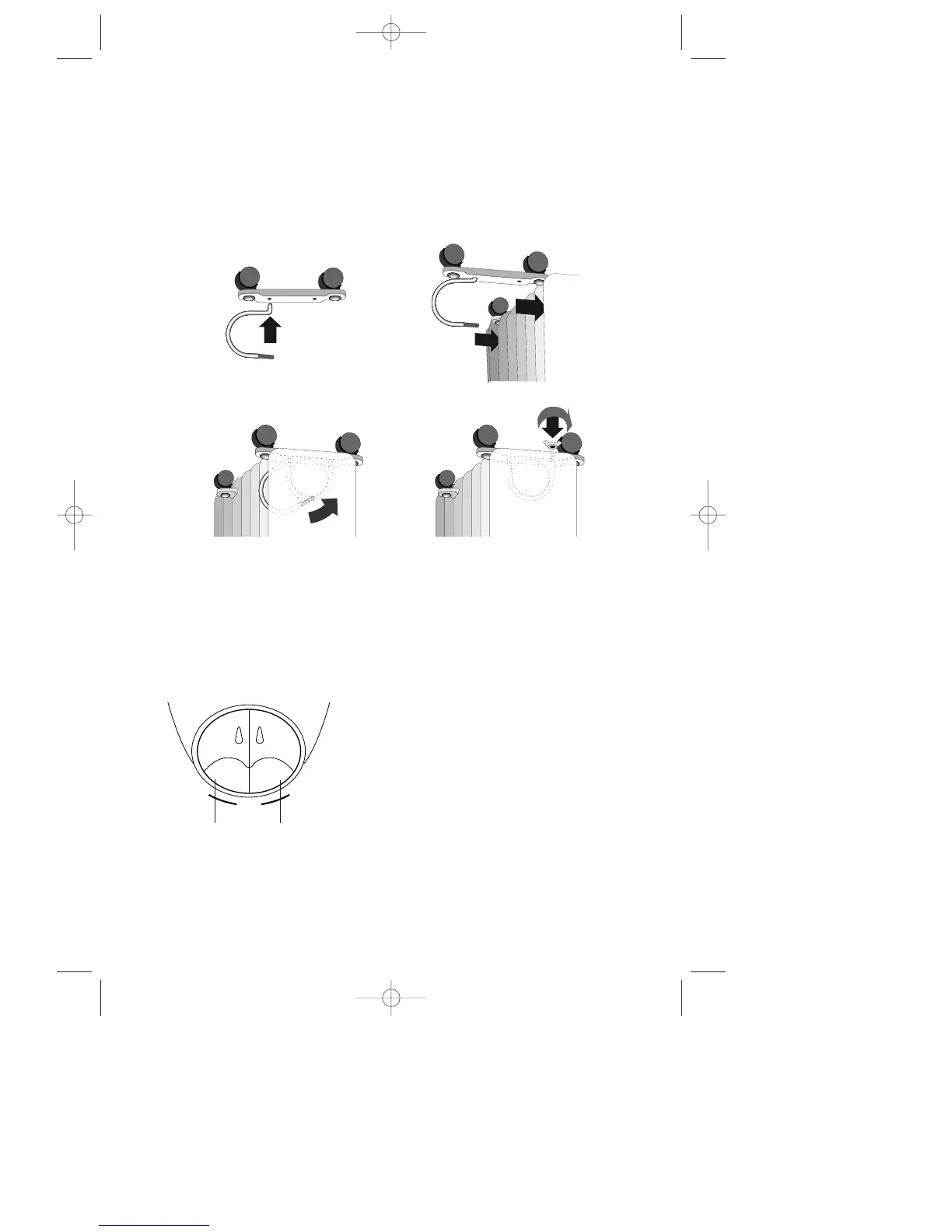

The feet with the casters must be fitted with two arc-shaped brackets only between the 1st
and 2nd element (see fig. 1 to 4 inclusive).
BE CAREFUL
Operate the heater in upright position only (wheels on the bottom, controls on the top). Any
other position could create hazard situation!
WATTS ECONOMIZER
For more economical use, the Min. or Med. Watt swit-
ches may be used individually, after unit has reached
the operating temperature.
With pilot lights ON, the heater is ON!
HOW TO USE YOUR HEATER
fig. 1 fig. 2
fig. 3 fig. 4
