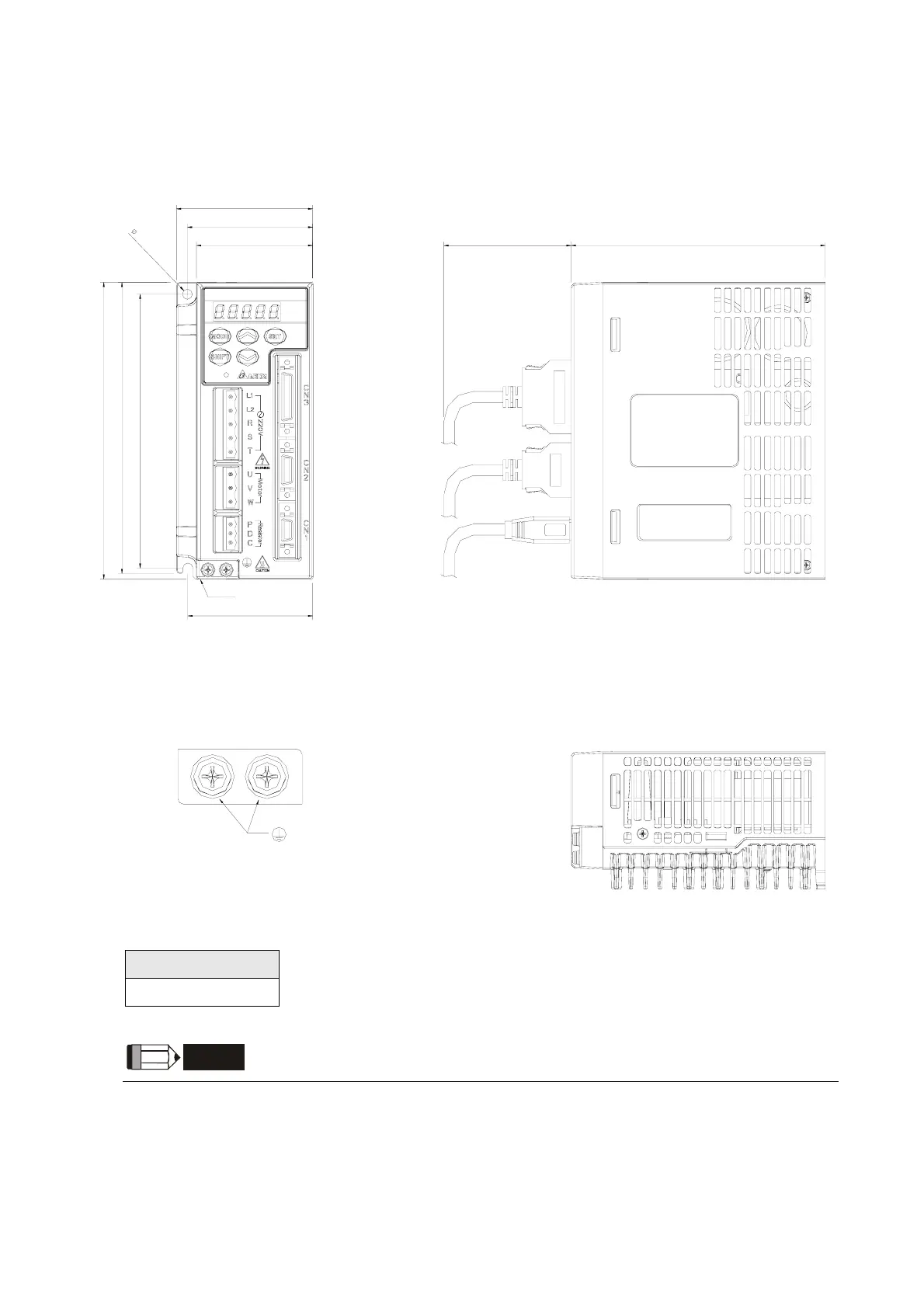

11.8 Dimensions of Servo Drive
Order P/N: ASD-A0121LA; ASD-A0221LA; ASD-A0421LA (100W ~ 400W)
75(2.95)
64(2.52)
162(6.38)
149.5(5.89)
140(5.51)
69(2.72)
68.8(2.71)
159(6.26)
LABEL
LABEL
MOUNTING SCREW TORGUE :14 (kgf-cm)
SCREW : M4x 0.7
PE TERMINIAL
5
.
5
(
0
.
2
1
7
)
70(2.76)
WEIGHT
1.5 (3.3)
NOTE
1) Dimensions are in millimeters (inches); Weights are in kilograms (kg) and (pounds (lbs)).
2) Actual measured values are in metric units. Dimensions and weights in (imperial units) are for
reference only.
3) Dimensions and weights of the servo drive may be revised without prior notice.
