Delta Electronics ASDA-A Series Quick Start

English-10

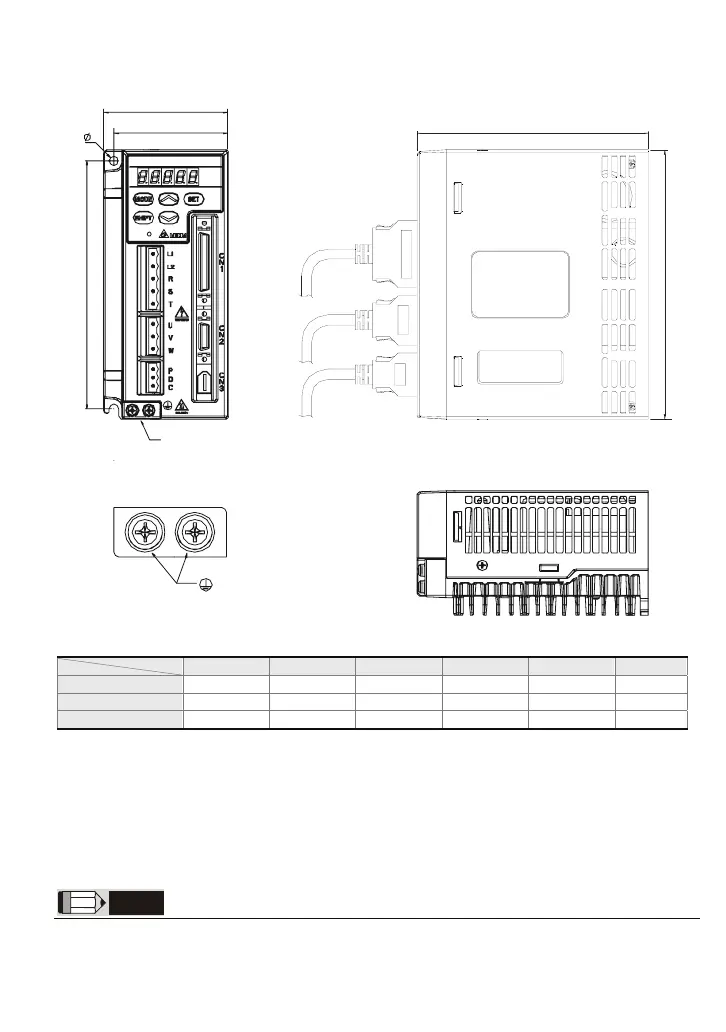

Servo Drive Dimensions
B
6
A
LABEL
LABEL
C
D
E
PE TERMINAL
SCREW : M4 x 0.7
MOUNTING SCREW TORQUE : 14 (kgf-cm)
A B C D E Weight
100W ~ 400W 162 (6.38) 140 (5.51) 75 (2.95) 69 (2.72) 150 (5.91) 1.5 (3.3)
750W ~ 1.5kW 162 (6.38) 191 (7.52) 93 (3.66) 83 (3.27) 149 (5.87) 2.0 (4.4)
2kW ~ 3kW 245 (9.65) 206 (8.1) 110 (4.33) 91.2 (3.59) 229.5 (9.04) 3.0 (6.6)
Dimensions are in millimeters and (inches). Weights are in kilograms and (pounds).
NOTE
1) In this quick start, actual measured values are in metric units. Dimensions in (imperial units) are for
reference only. Please use metric for precise measurements.
