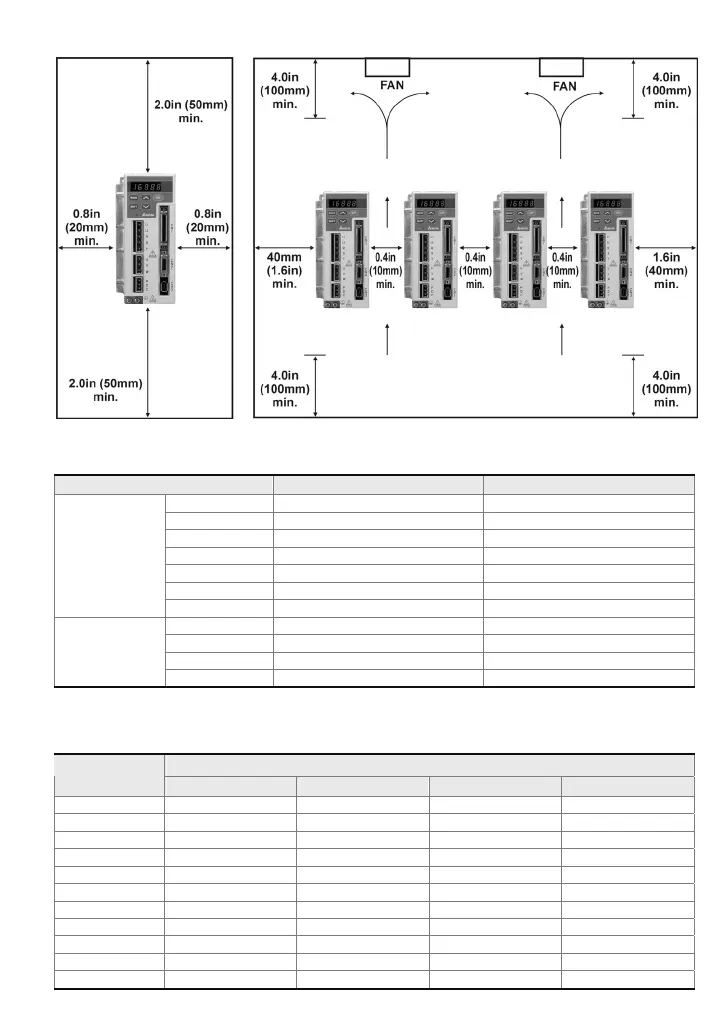

Delta Electronics ASDA-A Series Quick Start

English-4
Servo Drive and Servo Motor Combinations
Power Servo drive Servo motor
100W ASD-A0121L ASMT01L250
200W ASD-A0221L ASMT02L250
400W ASD-A0421L ASMT04L250
750W ASD-A0721L ASMT07L250
1000W ASD-A1021L ASMT10L250
2000W ASD-A2023L ASMT20L250
Low inertia
3000W ASD-A3023L ASMT30L250
1000W ASD-A1021M ASMT10M250
1500W ASD-A1521M ASMT15M250
2000W ASD-A2023M ASMT20M250
Middle inertia
3000W ASD-A3023M ASMT30M250
The boxes () at the ends of the model names are for optional configurations (keyway, brake and oil seal).
Cable Specifications for Servo Drive
Power Cable - Wire Gauge mm
2
(AWG)
Servo Drive
L1, L2 R, S, T U, V, W P, C
ASD-A0121L 1.3 (AWG16) 2.1 (AWG14) 2.1 (AWG14) 2.1 (AWG14)
ASD-A0221L 1.3 (AWG16) 2.1 (AWG14) 2.1 (AWG14) 2.1 (AWG14)
ASD-A0421L 1.3 (AWG16) 2.1 (AWG14) 2.1 (AWG14) 2.1 (AWG14)
ASD-A0721L 1.3 (AWG16) 2.1 (AWG14) 2.1 (AWG14) 2.1 (AWG14)
ASD-A1021L 1.3 (AWG16) 2.1 (AWG14) 2.1 (AWG14) 2.1 (AWG14)
ASD-A1021M 1.3 (AWG16) 2.1 (AWG14) 2.1 (AWG14) 2.1 (AWG14)
ASD-A1521M 1.3 (AWG16) 2.1 (AWG14) 2.1 (AWG14) 2.1 (AWG14)
ASD-A2023L 1.3 (AWG16) 2.1 (AWG14) 2.1 (AWG14) 3.3 (AWG12)
ASD-A2023M 1.3 (AWG16) 2.1 (AWG14) 2.1 (AWG14) 3.3 (AWG12)
ASD-A3023L 1.3 (AWG16) 3.3 (AWG12) 3.3 (AWG12) 3.3 (AWG12)
ASD-A3023M 1.3 (AWG16) 3.3 (AWG12) 3.3 (AWG12) 3.3 (AWG12)
