18

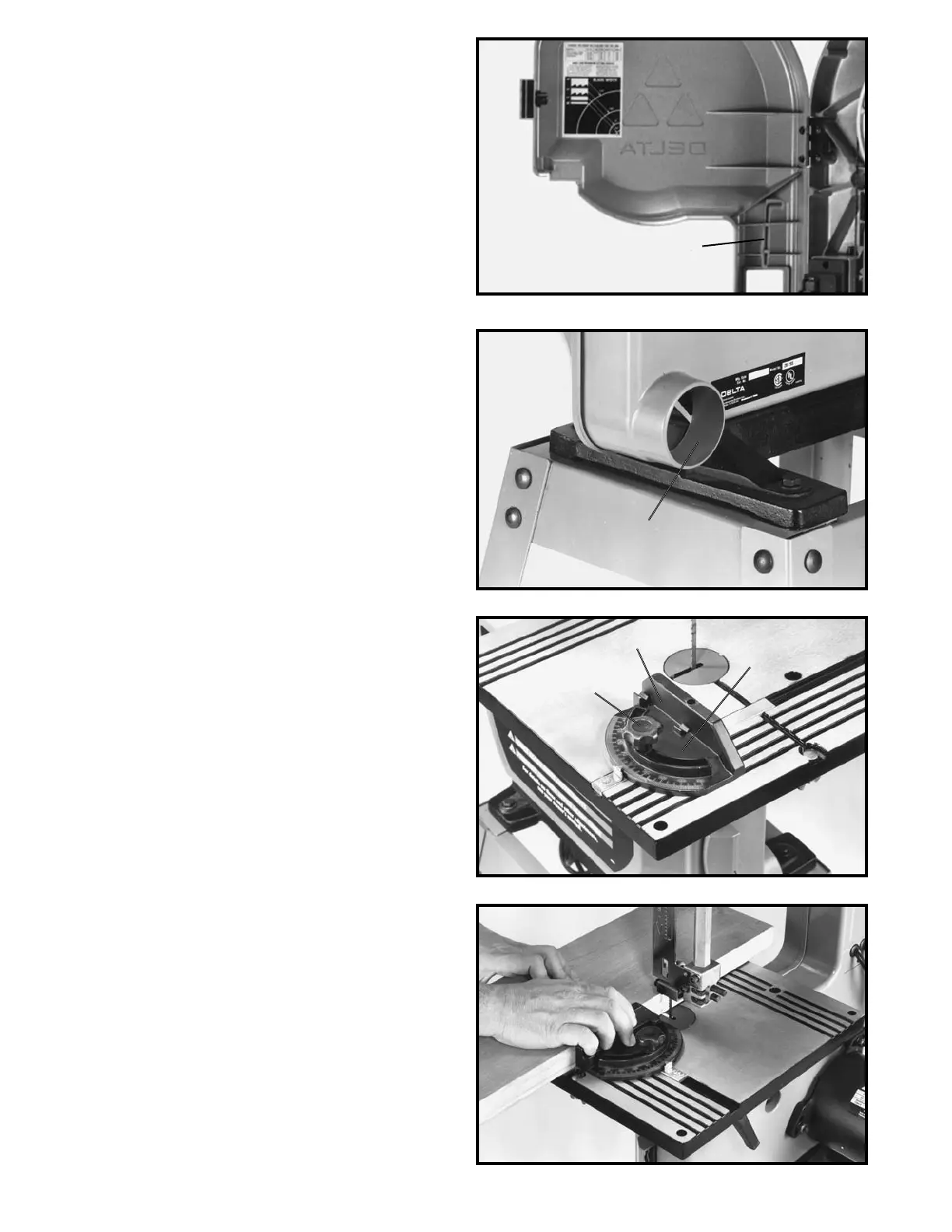

Fig. 39
Fig. 40
Fig. 41
Fig. 42
WRENCH STORAGE
The hex wrench (A) supplied with your band saw can be
stored inside the wheel cover, as shown in Fig. 39.
DUST CHUTE
A dust chute (A) Fig. 40, is provided which enables you
to connect your band saw to a standard shop vacuum or
dust collector. The opening of the dust chute is 2-1/4" I.D.
MITER GAGE
A miter gage (A) Fig. 41, is supplied with your band saw.
The miter gage body (C) can be adjusted up to 45 de-
grees right and left by loosening lock knob (B), rotating
miter gage body (C) to the desired angle, and tightening
lock knob (B).
A useful operation when using the miter gage to cut
wide workpieces is to rotate the miter gage 180 degrees.
This provides more support for the workpiece on the
table, as shown in Fig. 42.
A
B
C
A
A
