Delta 28-195 User Manual

9
ASSEMBLING TABLE
TO MACHINE

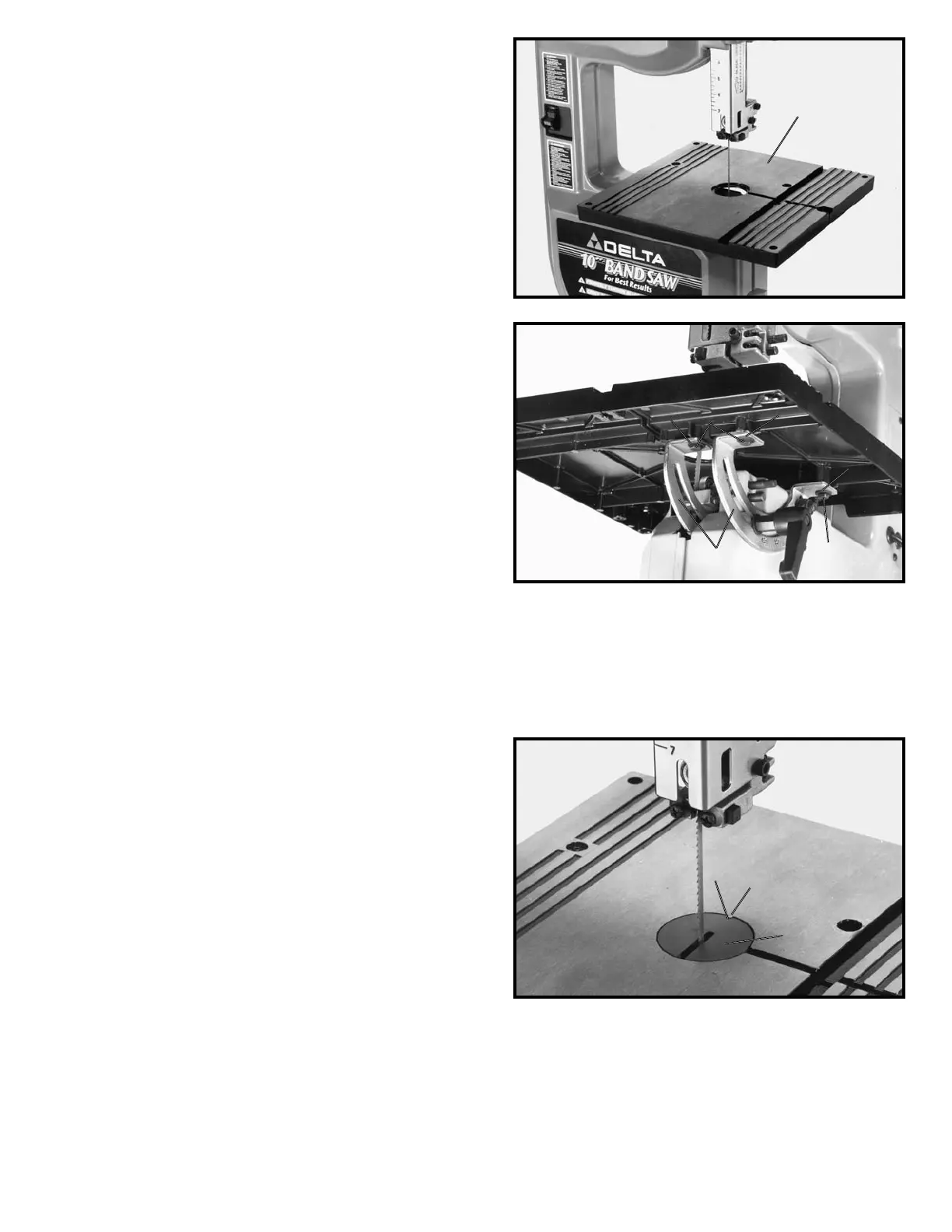

1. Slide table (A) Fig. 7, into position on band saw
trunnions, as shown.
Fig. 7
2. Line up the four threaded holes in bottom of table
with four holes in table trunnions (B) Fig. 8, and fasten
the table to the trunnions using the four M6 x 16mm hex
head bolts (C) and M6 flat washers (A), three of which
are shown.
ASSEMBLING
TABLE INSERT
1. Place table insert (A) Fig. 9, in opening of table.
NOTE: A notch (B) is provided on insert that engages
with dimple (C) in table opening.
Fig. 8
Fig. 9
A
C
C
B
A
A
A
A
C
B
