5
Fig. 4
Fig. 5
Fig. 6
Fig. 7
B
A
C
D
E
G
J
F
K
H
A
F
B
A
L
M

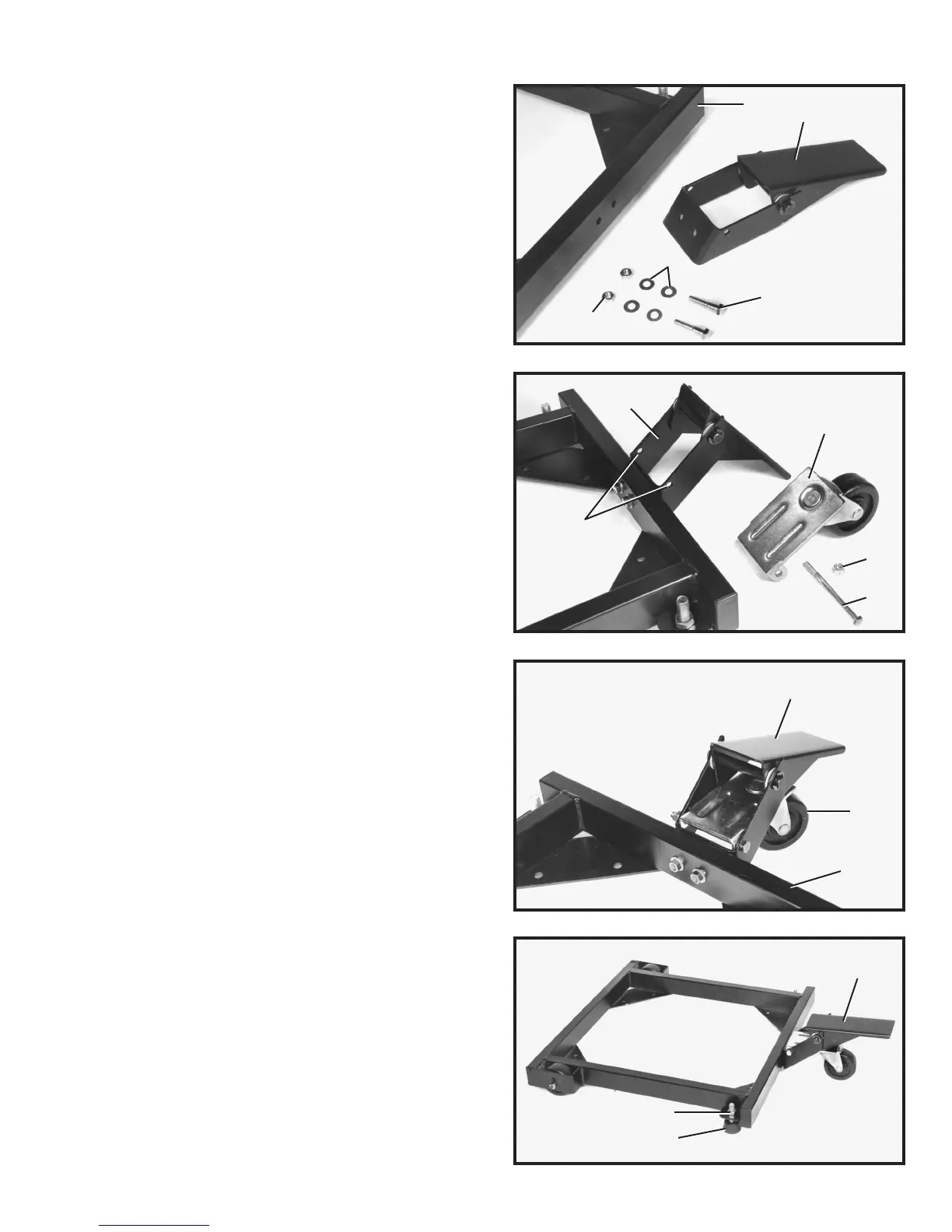

ASSEMBLING THE MOBILE BASE
The mobile base is constructed of heavy gage steel with
welded joint s and features a bolt-on foot lever assembly,
single swivel caster , and rigid wheels. T wo adjust able
foot p ads opposite the rigid wheels assure st able four-
corner cont act when the base is lowered. A convenient
foot-operated control lever raises and lowers the base for
easy movement for cleaning and repositioning.
3. Fig. 6, illustrates the caster assembly (F) and foot
lever assembly (A) fastened to the mobile base (B).
4. W ith the foot lever (A) Fig. 7, in the raised position
as shown, the mobile base should be level with the floor
surface and the two rubber feet, one of which is shown
at (L), should cont act the floor surface. To adjust the rub -
ber feet, tighten and loosen the hex nut, which is shown
at (M) and the nut which is located directly above the
rubber feet.
5. IMPORTANT:WHENPLACING THE MACHINE ON
THE MOBILE BASE, MAKE CERTAIN FOOT LEVER
(A) F I G. 7, IS IN THE RAISED POSITION A S SHOWN
TO AVOID MOVEMENT OF THE MOBILE BASE.
2. Assemble caster assembly (F) Fig. 5, to mobile base
bracket (G) using the four inch-long screw (H) through
two holes (J) in mobile base bracket (G) and two holes in
caster assembly (F). Fasten in place using locknut (K).
1. Assemble foot lever assembly (A) Fig. 4, to the out -
side of mobile base (B) with two 1-1/2 inch-long hex head
screws (C), four flat washers (D), and two hex nut s (E).
