ASSEMBLY AND ADJUSTMENTS
ASSEMBLING ACCESSORY

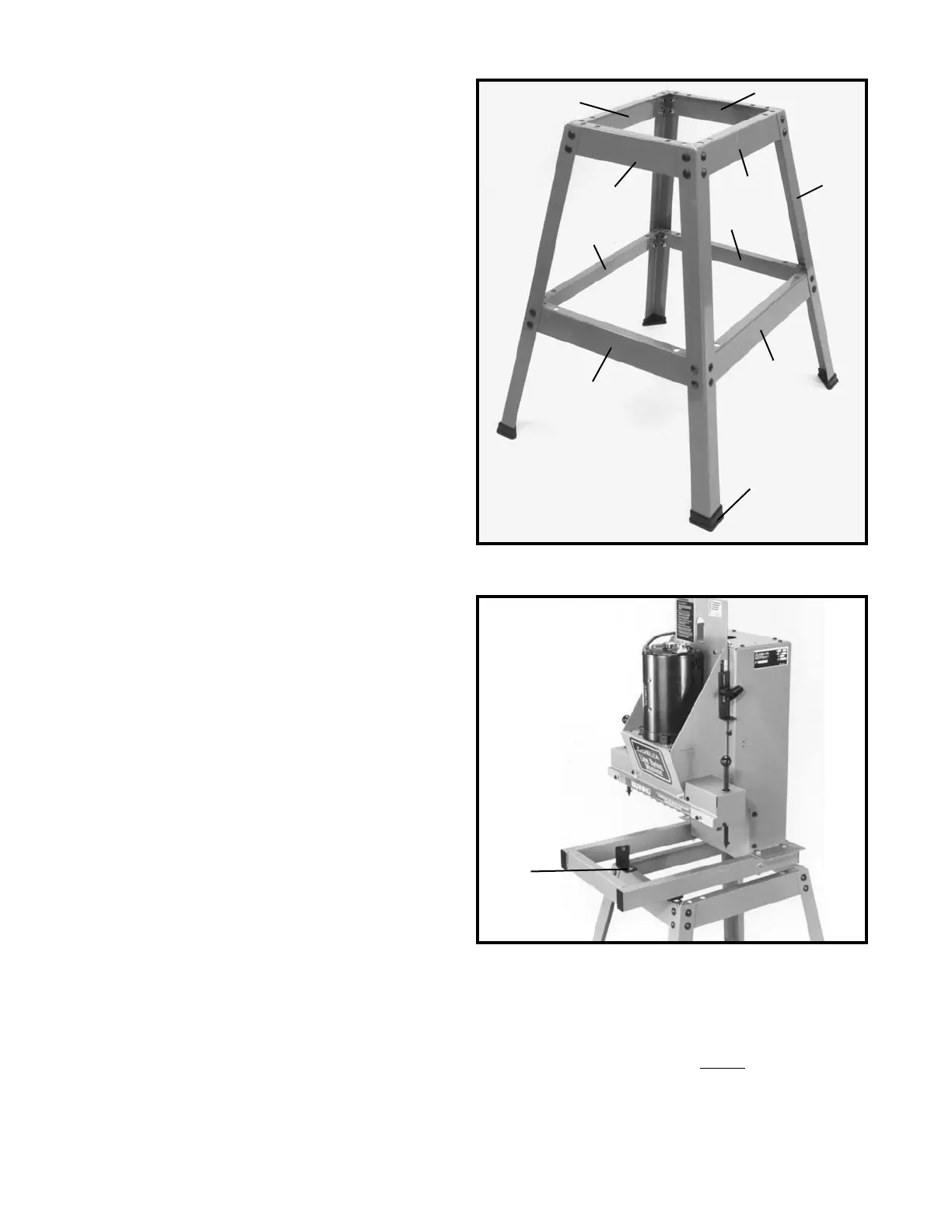

32-331 STAND
If you purchased the accessory 32-331 steel stand for
use with your boring machine, assemble the stand as
shown in Fig. 6, using thirty-two 5/8" long carriage bolts,
flat washers and hex nuts. Align the holes in the legs with
the holes in the braces, insert a 5/16-18x5/8" carriage
bolt through the hole in the leg and the hole in the brace,
place a 5/16" flat washer onto the carriage bolt and
thread a 5/16-18 hex nut onto the carriage bolt and hand
tighten. Repeat this process for the thirty-one remaining
holes. NOTE: All braces mount to the inside of the legs.
NOTE: For ease in identifying and assembling the stand,
the two top front and rear braces (A) are 13-1/2" long; the
two top side braces (B) are 16-1/2" long; the two bottom
front and rear braces (C) are 19-1/2" long; and the two
bottom side braces (D) are 22-1/2" long. The four legs (E)
are 31-1/2" long. NOTE: Do not completely tighten the
stand mounting hardware until the machine is
assembled to the stand. Assemble the four plastic feet
(G) to the bottom of each leg (E) as shown.
Fig. 7
ASSEMBLING MACHINE
TO STAND
If you purchased the accessory 32-331 steel stand for
use with your boring machine, assemble the machine to
the stand using four 5/16-18x3/4" hex head screws, one
of which is shown at (A) Fig. 7, 5/16" flat washers, 5/16"
lockwashers and 5/16-18 hex nuts supplied with the
accessory stand. NOTE: Align the four holes in the
machine with the four holes in the stand. Insert the 3/4"
hex head screw through the top of the machine and
stand, place a flat washer onto the 3/4" hex head screw,
then place a lockwasher onto the 3/4" hex head screw,
and thread a nut onto the screw and tighten securely.
Repeat this process for the three remaining holes.
FASTENING MACHINE TO A SUPPORTING SURFACE
If you are using the boring machine without the accessory 32-331 steel stand, the machine MUST be fastened to a
supporting surface using suitable hardware, not supplied by Delta.
Fig. 6
B
A
A
B
D
D
C
C
E
G
A
