15

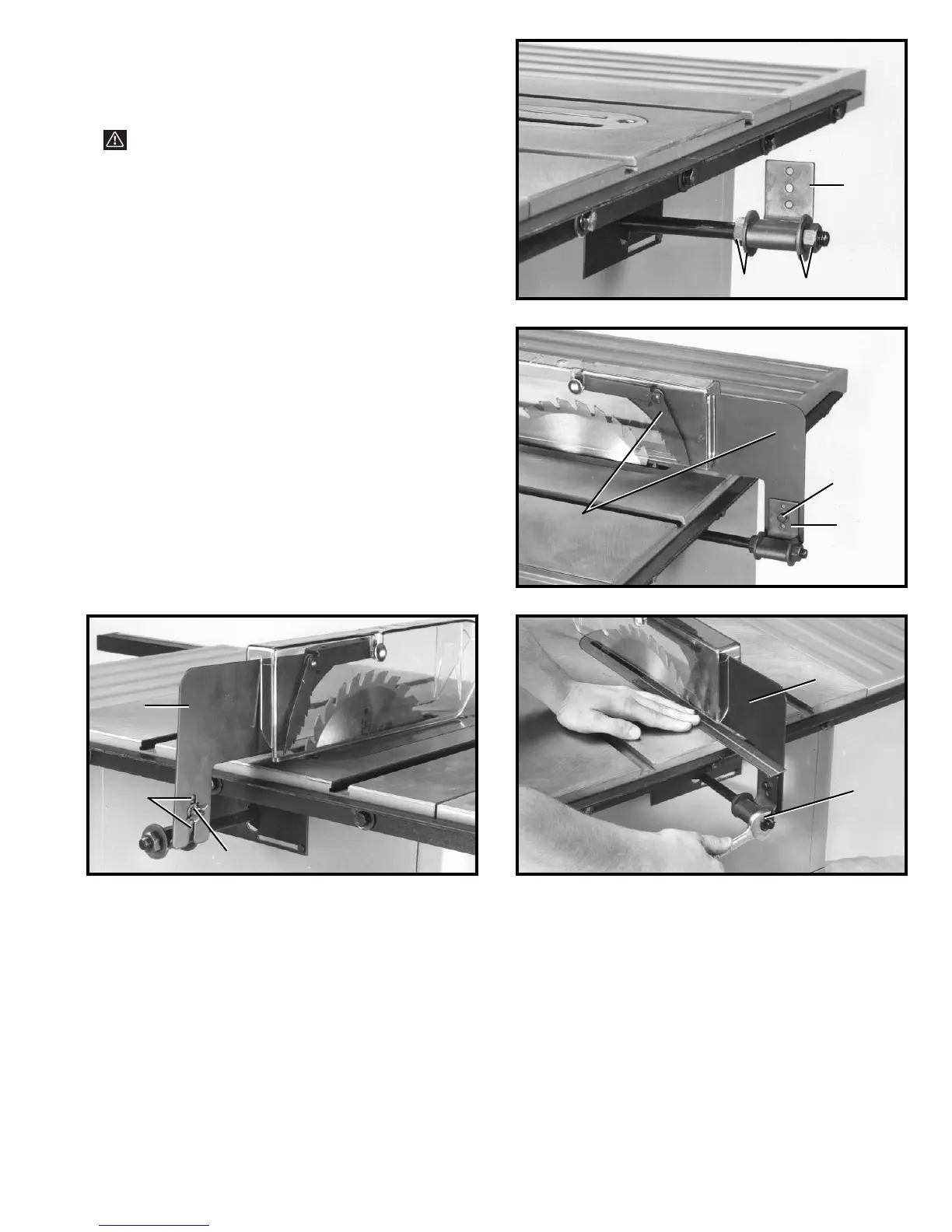

Fig. 26
Fig. 27
Fig. 29Fig. 28
5. Check the alignment of the splitter (C) Fig. 29, to the
saw blade using a straight edge as shown. If alignment
is necessary, loosen nut (B), align splitter (C) and
retighten nut (B).
3. Assemble the blade guard and splitter assembly (C) to
the splitter bracket (A) using the hex head screw, star
washer and flat washer (D) Fig. 27, and wing nut, star
washer and flat washer (E) Fig. 28.
4. NOTE: Make certain the two protrusions, “pins” (F)
Fig. 28, are engaged with the channel of the splitter
assembly (C) before tightening wing nut (E).
ASSEMBLING BLADE
GUARD AND SPLITTER
ASSEMBLY
1. WARNING: WHEN ASSEMBLING THE BLADE
GUARD AND SPLITTER ASSEMBLY, MAKE CERTAIN
THE TOOL IS DISCONNECTED FROM THE POWER
SOURCE.
2. Assemble splitter bracket (A) to the end of the guard
support rod using the two hex nuts and flat washers (B),
as shown in Fig. 26.
A
B
B
A
D
C
C
E
F
B
C
C
