14

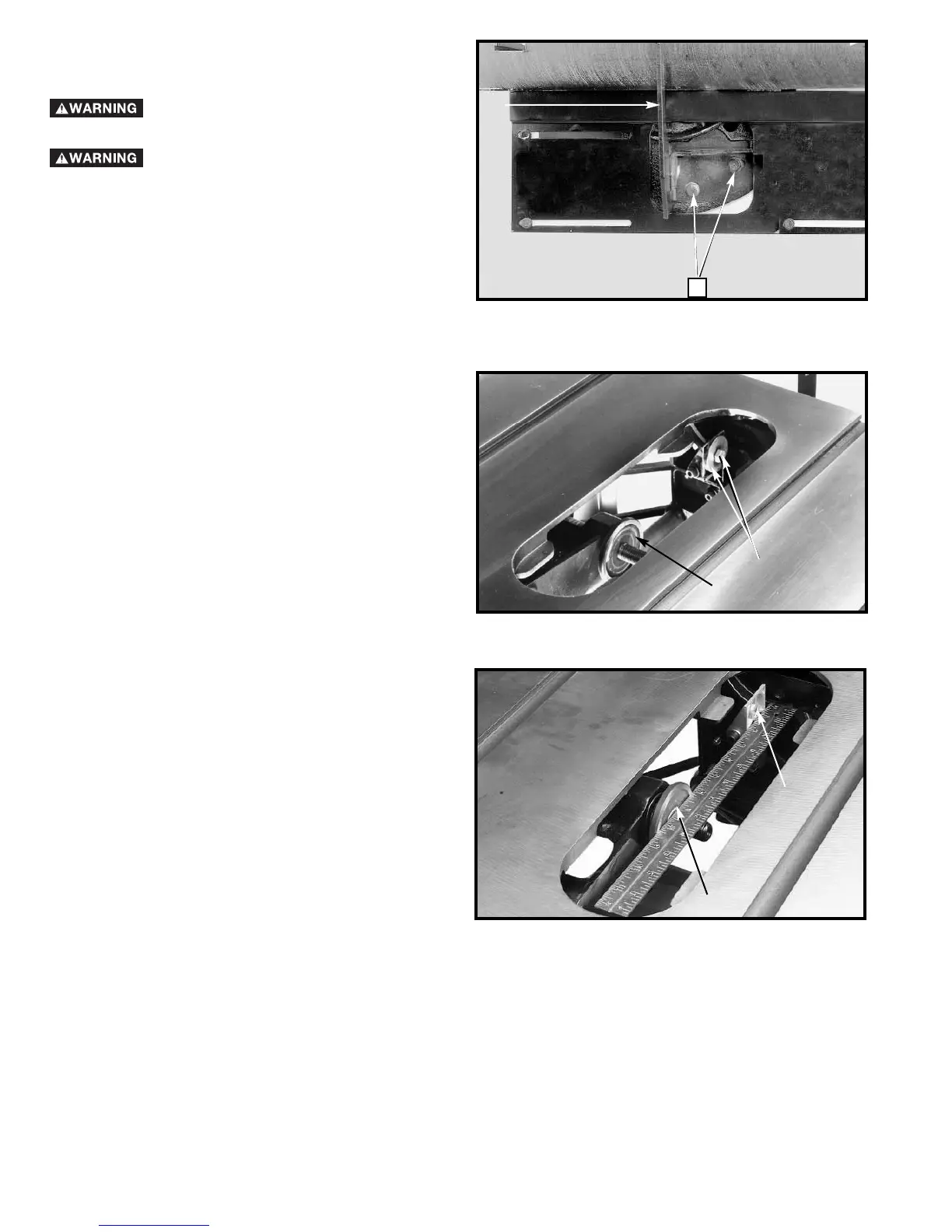

ASSEMBLING BLADE GUARD AND
SPLITTER ASSEMBLY
DISCONNECT MACHINE FROM POWER
SOURCE.
MAKE SURE BLADE IS NOT ATTACHED.
IF IT IS, REMOVE THE SAW BLADE FROM THE SAW
USING THE SUPPLIED WRENCHES.
1. Fasten the rear splitter mounting bracket (A) Fig. 15,
to the rear trunnion on the back of the saw using the
two 1/4”-20 x 3/4″ hex head screws (B), 1/4” flat
washers and 1/4” lock washers. Place flat washers,
then lock washers onto the screw, then insert them
through the holes in the splitter mounting bracket
and into the tapped holes in the trunnion. Do not
completely tighten the two screws (B) at this time.
2. Raise saw arbor to its highest position.
3. Using a 12 mm wrench, remove hex head screw and
large washer (C) Fig. 16 from the inside splitter
mounting bracket.
4. Remove the outer arbor flange and leave the inner
arbor flange (F) Fig. 16 on the arbor.
4. Use a straight edge to check to see if the top and
bottom of the inside splitter bracket (D) Fig. 17 is
aligned with the inner arbor flange (E).
Fig. 15
Fig. 16
Fig. 17
B
D
E
A
C
F
